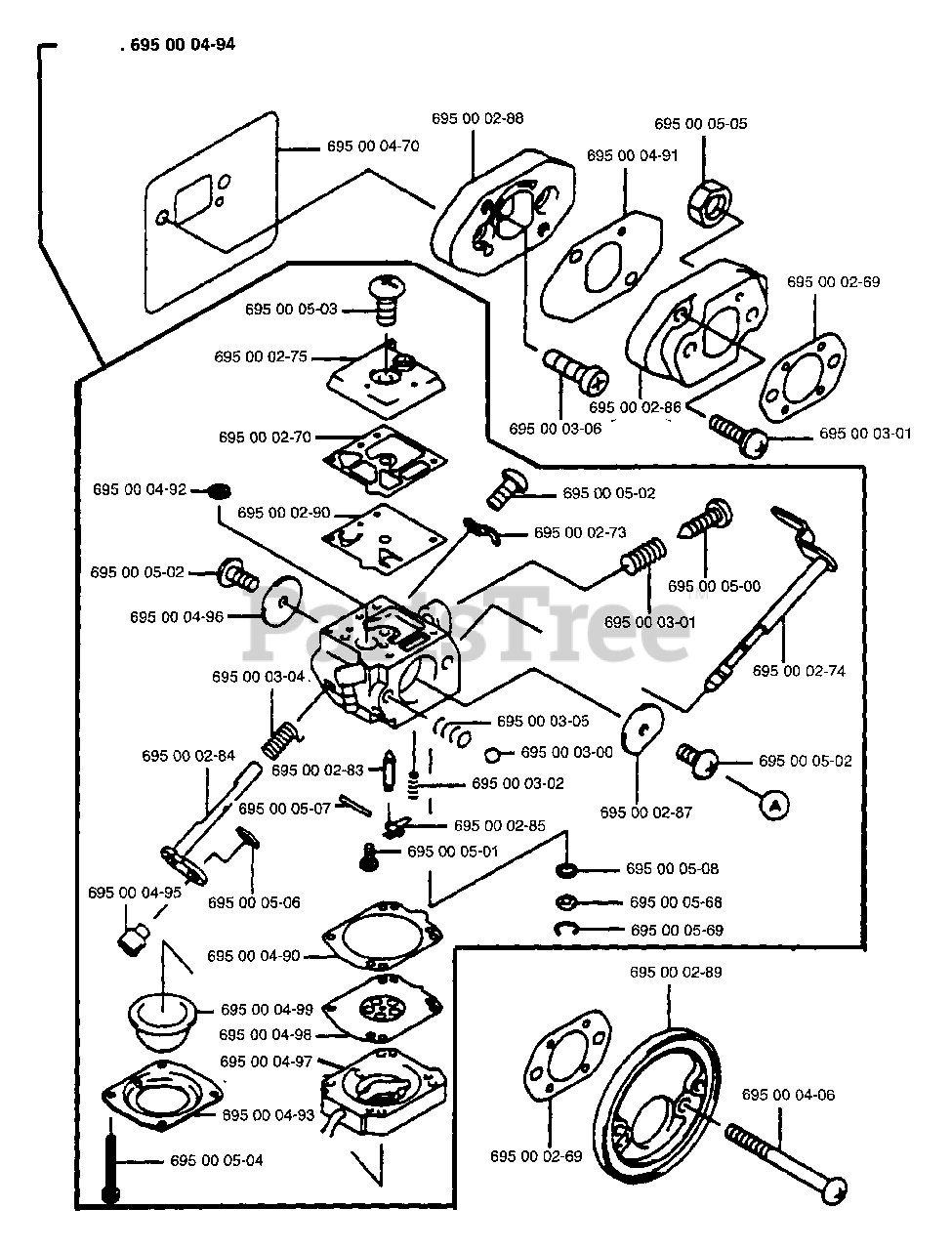

140 BC - Husqvarna Backpack Blower (1997-04) Carburetor Parts Parts Diagram

Backpack Blower

Carburetor Parts Parts Diagram

  • Title

695000494

Husqvarna 695000494

CARBURETOR ASSEMBLY

$

$

Not available

695000288

Husqvarna 695000288

ADAPTER

$

$

Not available

695000470

Husqvarna 695000470

GASKET

$

$

Not available

695000503

Husqvarna 695000503

SCREW

$

$

Not available

695000275

Husqvarna 695000275

PUMP COVER

$

$

Not available

696000270

Husqvarna 696000270

$

$

Currently unavailable

695000492

Husqvarna 695000492

FILTER
(Superseded to 531004443)

$

$

Not available

695000290

Husqvarna 695000290

PUMP DIAPHRAGM

$

$

Not available

695000502

Husqvarna 695000502

SCREW

$

$

Not available

695000496

Husqvarna 695000496

VALVE-THROTTLE

$

$

Not available

695000306

Husqvarna 695000306

PAN SCREW

$

$

Not available

695000286

Husqvarna 695000286

INSULATOR

$

$

Not available

695000502

Husqvarna 695000502

SCREW

$

$

Not available

695000273

Husqvarna 695000273

PLATE

$

$

Not available

695000500

Husqvarna 695000500

SCREW

$

$

Not available

695000304

Husqvarna 695000304

SPRING

$

$

Not available

695000284

Husqvarna 695000284

THROTTLE SHAFT

$

$

Not available

695000283

Husqvarna 695000283

FLOAT VALVE
(Superseded to 531004446)

$

$

Not available

695000507

Husqvarna 695000507

PIN
(Superseded to 695008117)

$2.49

$

In Stock, only 4 left!

0

695000301

Husqvarna 695000301

SPRING

$

$

Not available

695000274

Husqvarna 695000274

CHOKE SHAFT ASSY

$

$

Not available

695000305

Husqvarna 695000305

SPRING

$

$

Not available

695000300

Husqvarna 695000300

BALL

$

$

Not available

695000302

Husqvarna 695000302

SPRING

$

$

Not available

695000285

Husqvarna 695000285

FLOAT ARM

$

$

Not available

695000501

Husqvarna 695000501

SCREW

$

$

Not available

695000502

Husqvarna 695000502

SCREW

$

$

Not available

695000287

Husqvarna 695000287

CHOKE VALVE

$

$

Not available

695000506

Husqvarna 695000506

RING-SNAP

$

$

Not available

695000568

Husqvarna 695000568

MAIN JET

$

$

Not available

695000569

Husqvarna 695000569

SNAP RING

$

$

Not available

695000289

Husqvarna 695000289

ADAPTER

$

$

Not available

695000406

Husqvarna 695000406

SCREW 5 X 52

$

$

Not available

695000269

Husqvarna 695000269

GASKET

$

$

Not available

695000506

Husqvarna 695000506

RING-SNAP

$

$

Not available

695000490

Husqvarna 695000490

GASKET

$

$

Not available

695000499

Husqvarna 695000499

PUMP-PRIMING

$

$

Not available

695000498

Husqvarna 695000498

DIAPHRAGM

$

$

Not available

695000497

Husqvarna 695000497

BODY

$

$

Not available

695000493

Husqvarna 695000493

COVER

$

$

Not available

695000504

Husqvarna 695000504

SCREW

$

$

Not available

695000495

Husqvarna 695000495

ADJUSTER-CABLE

$

$

Not available

695000505

Husqvarna 695000505

NUT M5

$

$

Not available

695000491

Husqvarna 695000491

Insulator Gasket

$5.76

$

Usually ships in 3-10 days

0

695000269

Husqvarna 695000269

GASKET

$

$

Not available

695000301

Husqvarna 695000301

SPRING

$

$

Not available
