1400 (31A-050-711) - Troy-Bilt Flurry 14" Snow Thrower, Electric (2010) Motor & Auger Parts Diagram

Flurry 14" Snow Thrower, Electric

Motor & Auger Parts Diagram

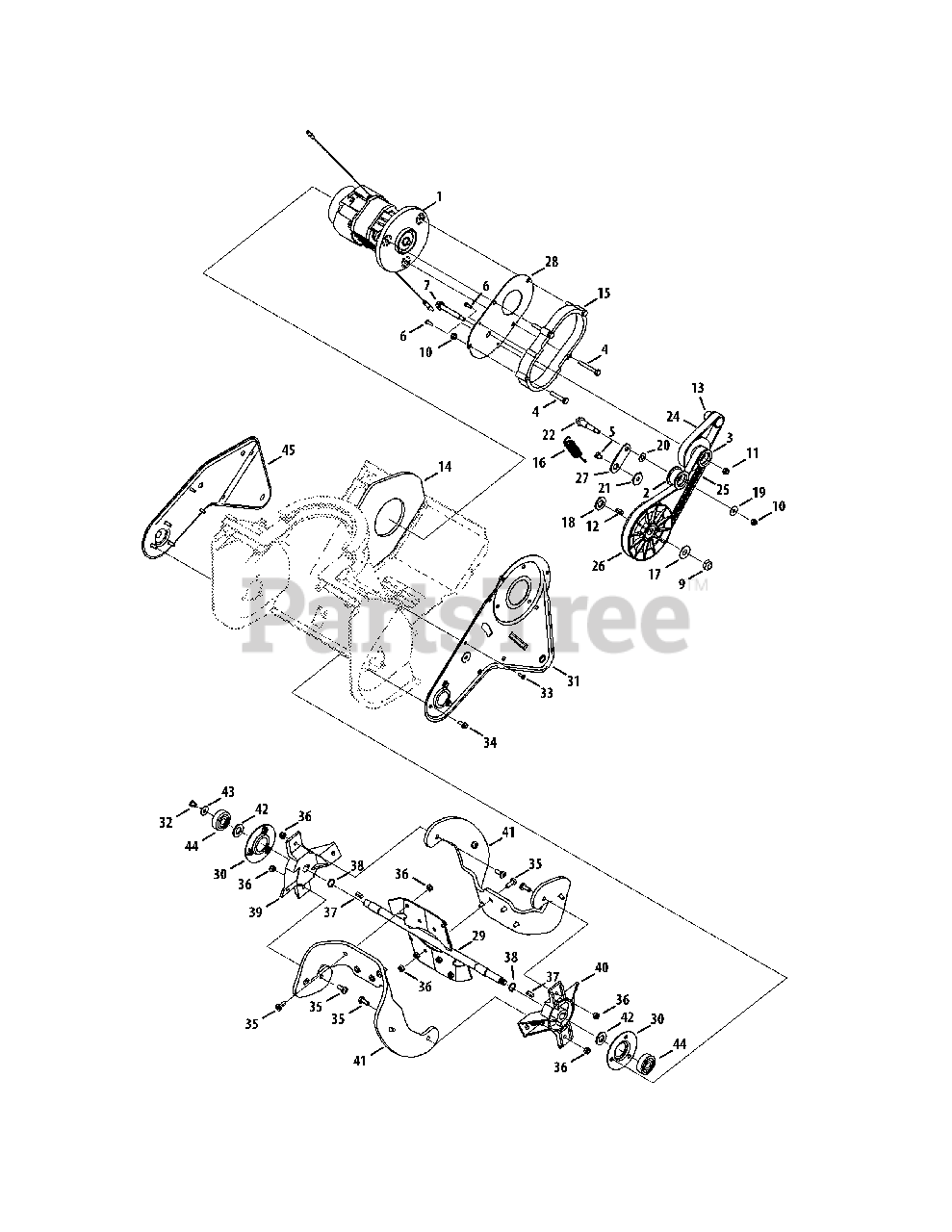

  • Title

1

Troy-Bilt 924-04030A

Motor Assembly

Note: (Incl. Ref 13)

$

$

Not available

2

Troy-Bilt 931-04505

Pulley Assembly, Idler

$11.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 656-04060A

Pulley Assembly
(Superseded to 656-04060P)

$21.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-04197

Screw, M6-1, 35.00

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-05132

Screw, Hex Screw, M6 x 8mm

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-05137

Screw, Tap, M4.2 x 1.4 x 13

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-05187

Screw, Hex Flange, M8-1.25, 60mm
(Superseded to 710-05187A)

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-1391

Screw, M6-1, 45.00

$3.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-04255

Nut, Hex, Torque, M10

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 912-0691

Nut, Hex Lock, M6-1
(Superseded to 712-0691)

$

$

Not available

11

Troy-Bilt 712-0692

Nut, Hex Lock, M8-1.25, Nylon

$6.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 714-04089

Key, Square, 5 x 5 x 13

$3.49

$

In Stock, only 4 left!

0

13

Troy-Bilt 756-04455A

Pulley, 5mm, 15 Tooth

$7.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 723-04076

Gasket, Foam

$

$

Not available

15

Troy-Bilt 731-07772

Spacer, Motor Mount

$7.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-04770

Extension Spring, Idler

$3.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 936-0101

Washer, Flat, .406 x 1.0 x .030

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-04502

Washer, Flat, M12
(Superseded to 736-04502A)

$3.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0685

Washer, Flat, 6.4 Id x 18 OD

$3.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 736-0700

Washer, Flat, 8.4 x 16 x 1.60

$6.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 738-04446

Spacer, Shoulder, Hex, M6

$6.49

$

In Stock, only 3 left!

0

22

Troy-Bilt 738-04449

Screw, Shoulder

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 750-05435

Spacer, 8.35 x 16 x 11.65

$7.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 754-04279A

Belt, Sync

$20.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 754-04281A

Belt, Poly, 6 Rib

$20.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 756-04451

Pulley, Auger, 6 Rib
(Superseded to 756-04451A)

$16.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 790-00418

Bracket, Idler

$

$

Not available

28

Troy-Bilt 790-00425-0637

Plate, Motor Mount

$6.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 684-04365

Auger Weldment
(Superseded to 753-08308)

$112.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 684-04366

Plate, Bearing Retainer

$

$

Not available

31

Troy-Bilt 684-04370

Plate, LH Side

$

$

Not available

32

Troy-Bilt 710-05132

Screw, Hex Screw, M6 x 8mm

$3.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-05137

Screw, Tap, M4.2 x 1.4 x 13

$3.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 710-05158

Screw, Hex Flange, M5 x 13mm

$

$

Not available

35

Troy-Bilt 710-1389

Screw, M6 -1, 16

$3.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 912-0691

Nut, Hex Lock, M6-1, Nylon
(Superseded to 712-0691)

$

$

Not available

37

Troy-Bilt 714-04089

Key, Square, 5x5x13

$3.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 716-04170

Snap Ring, External

$

$

Not available

39

Troy-Bilt 731-07638

Bracket, Shovel, Mount, RH

$14.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 731-07642

Bracket, Paddle, Mount, LH

$13.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 735-04238

Paddle Auger, Rubber
(Superseded to 735-04273)

$13.99

$

In Stock, Qty 16

0

42

Troy-Bilt 736-04502

Washer, Flat, M12, Ansi Narrow
(Superseded to 736-04502A)

$3.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 736-0685

Washer, Flat, 6.4 Idx18 OD

$3.49

$

In Stock, only 1 left!

0

44

Troy-Bilt 741-04466

Bearing, Ball, 12 x 37 x 12

$5.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 790-00397

Plate Right, Outer
(Superseded to 790-00397A)

$16.99

$

Usually ships in 3-6 days

0
