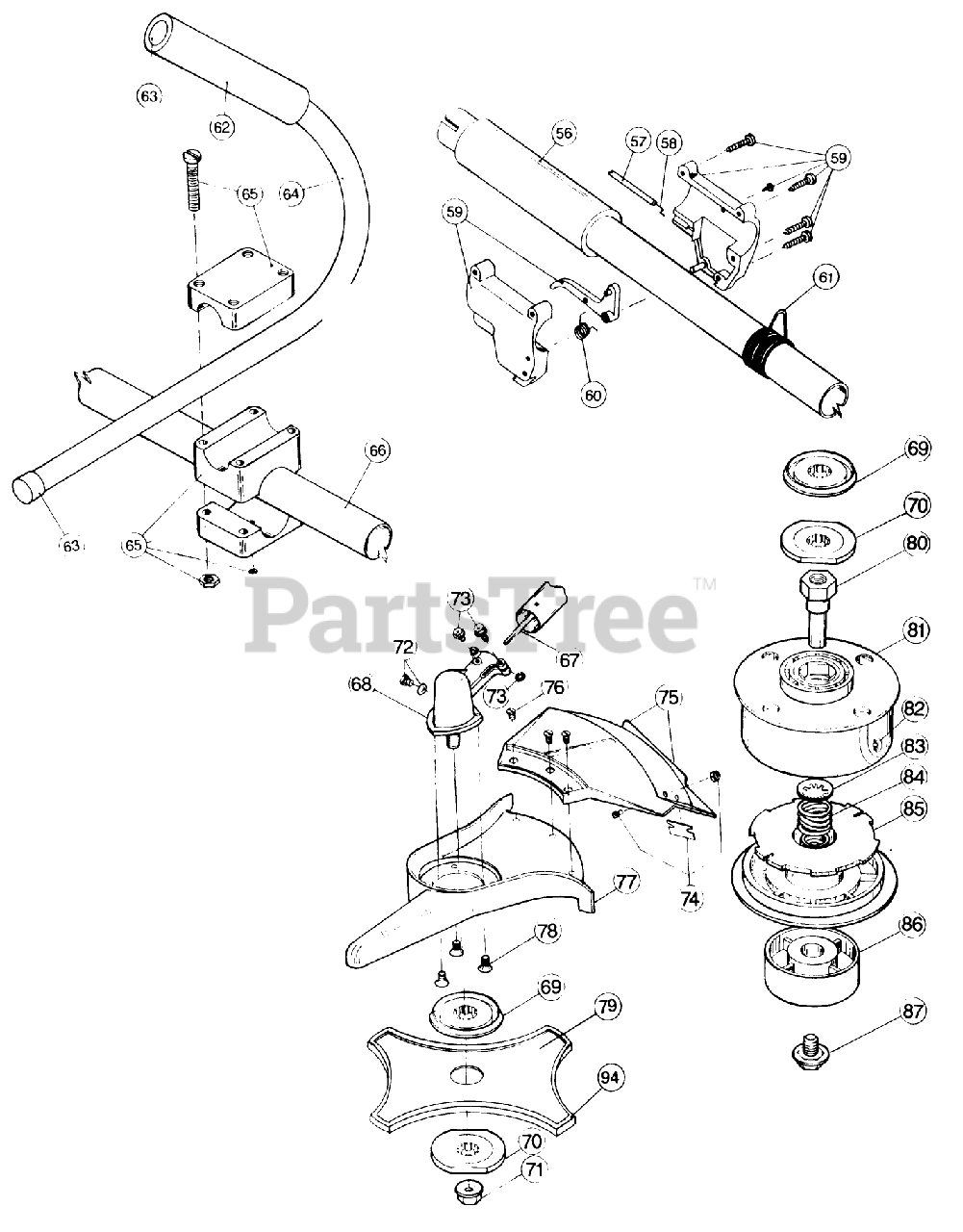

1400 CL - Lawn-Boy 15" String Trimmer (SN: 712000000 - 799999999) (1987) Parts Model 1480 Parts Diagram

15" String Trimmer

Parts Model 1480 Parts Diagram

  • Title

56

Lawn-Boy 612832

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

57

Lawn-Boy 145889

See Supercession: 181582
(Superseded to 181582)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

58

Lawn-Boy 610315

THROTTLE CABLE WIRE

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

59

Lawn-Boy 683303

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

60

Lawn-Boy 610314

THROTTLE TRIGGER SPRING

Note: The above part nos. for serial no. 71200000 and greater.

$10.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 610327

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

62

Lawn-Boy 612831

HANDLE NITRILE GRIP

Note: The above part nos. for serial no. 71200000 and greater.

$24.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 612021

TUBE CLOSURE

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

64

Lawn-Boy 683870

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

65

Lawn-Boy 683295

HANDLE BRACKET ASM

Note: The above part nos. for serial no. 71200000 and greater.

$62.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 683615

DRIVE SHAFT HSG ASM

Note: The above part nos. for serial no. 71200000 and greater.

$244.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 682064

See Supercession: 92-3236
(Superseded to 92-3236)

Note: The above part nos. for serial no. 71200000 and greater.

$97.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 683616

GEAR BOX ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

69

Lawn-Boy 612478

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

70

Lawn-Boy 612479

DISCONTINUE

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

71

Lawn-Boy 612480

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

72

Lawn-Boy 683617

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

73

Lawn-Boy 683618

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

74

Lawn-Boy 682061

BLADE ASM

Note: The above part nos. for serial no. 71200000 and greater.

$22.99

$

In Stock, only 1 left!

0

75

Lawn-Boy 683299

GUARD & BLADE ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

76

Lawn-Boy 683304

GUARD MNTG SCREW ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

77

Lawn-Boy 6121481

Guard

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Currently unavailable

78

Lawn-Boy 612482

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

79

Lawn-Boy 612031

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

80

Lawn-Boy 612483

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$40.16

$

In Stock, only 1 left!

0

81

Lawn-Boy 683301

OUTER SPOOL EYELET ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

82

Lawn-Boy 145566

EYELET

Note: The above part nos. for serial no. 71200000 and greater.

$16.99

$

Usually ships in 3-6 days

0

83

Lawn-Boy 612026

RETAINER

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

84

Lawn-Boy 610636

SPRING

Note: The above part nos. for serial no. 71200000 and greater.

$14.99

$

Usually ships in 3-6 days

0

85

Lawn-Boy 612484

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

86

Lawn-Boy 612485

DISCONTINUED
(Superseded to 180814)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

87

Lawn-Boy 612486

DISCONTINUED
(Superseded to 180814)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

88

Lawn-Boy 682075

STRAP SHOULDER ACC

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

88

Lawn-Boy 682075

STRAP SHOULDER ACC

Note: NOT SHOWN

$

$

Not available

89

Lawn-Boy 612454

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

89

Lawn-Boy 612454

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

90

Lawn-Boy 612455

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

90

Lawn-Boy 612455

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

91

Lawn-Boy 683628

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

91

Lawn-Boy 683628

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

92

Lawn-Boy 612492

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

92

Lawn-Boy 612492

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

93

Lawn-Boy 683825

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

93

Lawn-Boy 683825

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

94

Lawn-Boy 613231

BLADE SAFETY GUARD

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available
