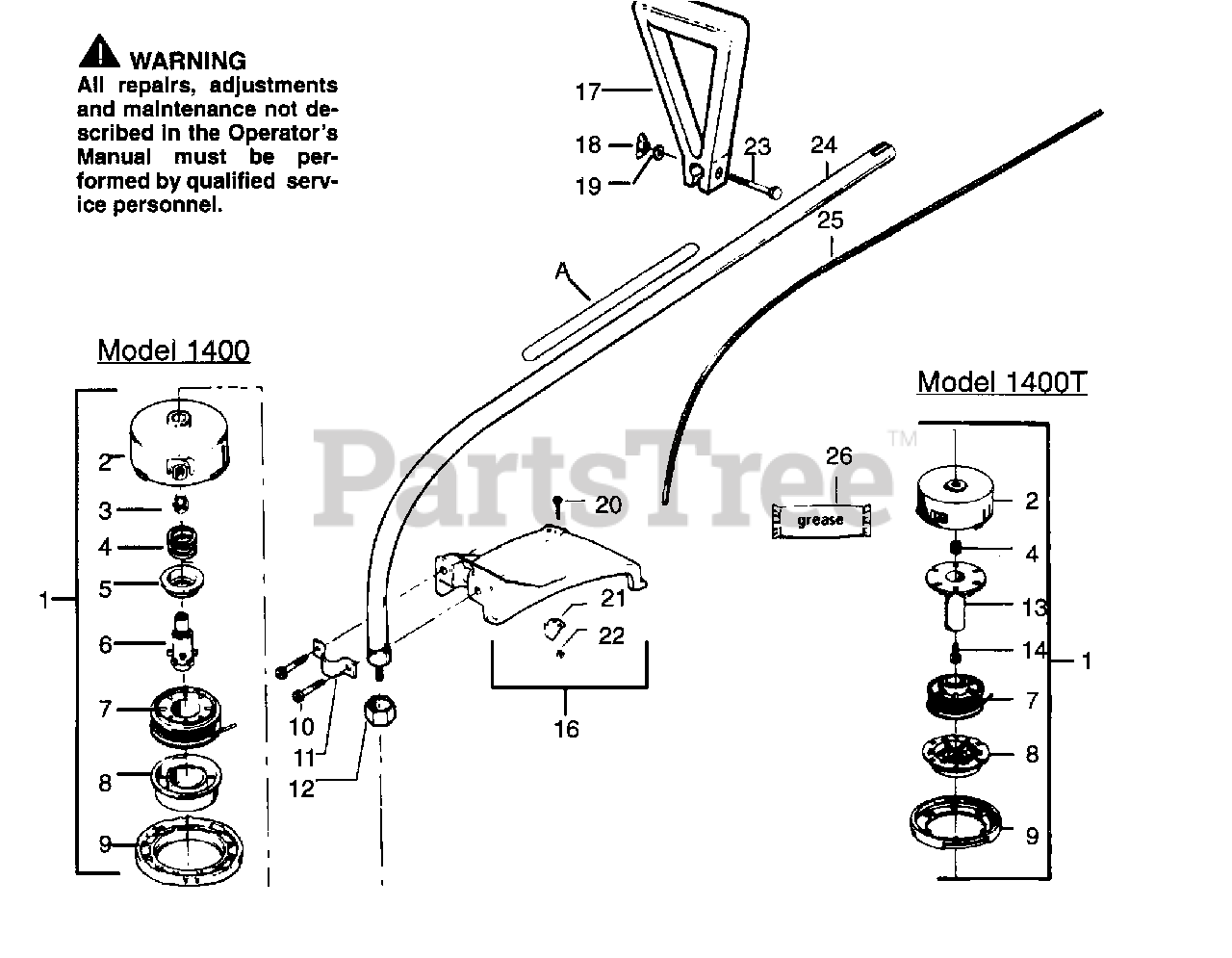

1400 T - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 952701604

Cutting Head Ass'y.-See Service Ref. 3
(Superseded to 952701618)

$

$

Not available

2

Poulan 530093896

Model 1400 G.TRIMMER
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

2

Poulan 530094562

Model 1400T

$

$

Not available

3

Poulan 530093898

Line Saver-Model 1400 G.TRIMMER Only

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 530092067

Model 1400 G.TRIMMER
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530094525

Model 1400T
(Superseded to 530094956)

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 530092068

Spring Adaptor-Model 1400 G.TRIMMEROnly
(Superseded to 530328929)

$

$

Not available

6

Poulan 530093897

Drive Gear-Model 1400 G.TRIMMER Only

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 952701523

Model 1400 G.TRIMMER

$

$

Not available

7

Poulan 952701606

Model 1400T
(Superseded to 952708510)

$

$

Not available

8

Poulan 530093387

Model 1400 G.TRIMMER
(Superseded to 530401183)

$

$

Not available

8

Poulan 530094522

Model 1400T

$

$

Not available

9

Poulan 530092133

Model 1400 G.TRIMMER

$

$

Not available

9

Poulan 530094521

Model 1400T

$10.99

$

Usually ships in 3-10 days

0

10

Screw, Model 1400 G.TRIMMER-See Service Ref. 1

$

$

Not available

10

Poulan 530092243

Model 1400T
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

11

Poulan 530093653

Bracket

$3.99

$

In Stock, only 1 left!

0

12

Poulan 530093716

Dust Cup

$

$

Not available

13

Poulan 530094523

Spool Post
(Superseded to 530069312)

$

$

Not available

14

Poulan 530015542

Screw

$

$

Not available

16

Shield Kit Assy (Inc. #10,20,21,22), Model 1400 G.TRIMMER-See Service Ref. 1

$

$

Not available

16

Poulan 530069249

Model 1400T

$

$

Not available

17

Poulan 530010618

Assist Handle
(Superseded to 530069496)

$

$

Not available

18

Poulan 530091373

Wing Nut

$4.99

$

In Stock, only 1 left!

0

19

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

20

Poulan 530015337

Screw

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530093853

Model 1400 G.TRIMMER

$

$

Not available

21

Poulan 530094570

Model 1400T

$3.99

$

In Stock, only 2 left!

0

22

Poulan 530015653

Nut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015737

Screw

$

$

Not available

24

Poulan 530093943

Drive Shaft Ass'y.

$

$

Not available

25

Poulan 530093935

Drive Shaft

$14.99

$

Usually ships in 3-10 days

0

26

Poulan 530030102

Shaft Lubrication
(Superseded to 952708514)

$

$

Not available

A

Poulan 530029159

Safety Label Decal

$

$

Not available

A

, Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530066760

Model 1400 G.TRIMMER

Note: Not Shown.

$6.49

$

Usually ships in 3-10 days

0

Poulan 530067065

Model 1400T

Note: Not Shown.

$

$

Not available
