14007 - Troy-Bilt 42" Blade Attachment (SN: 140070100101 & Above) 42" BLADE ATTACHMENT Parts Diagram

42" Blade Attachment

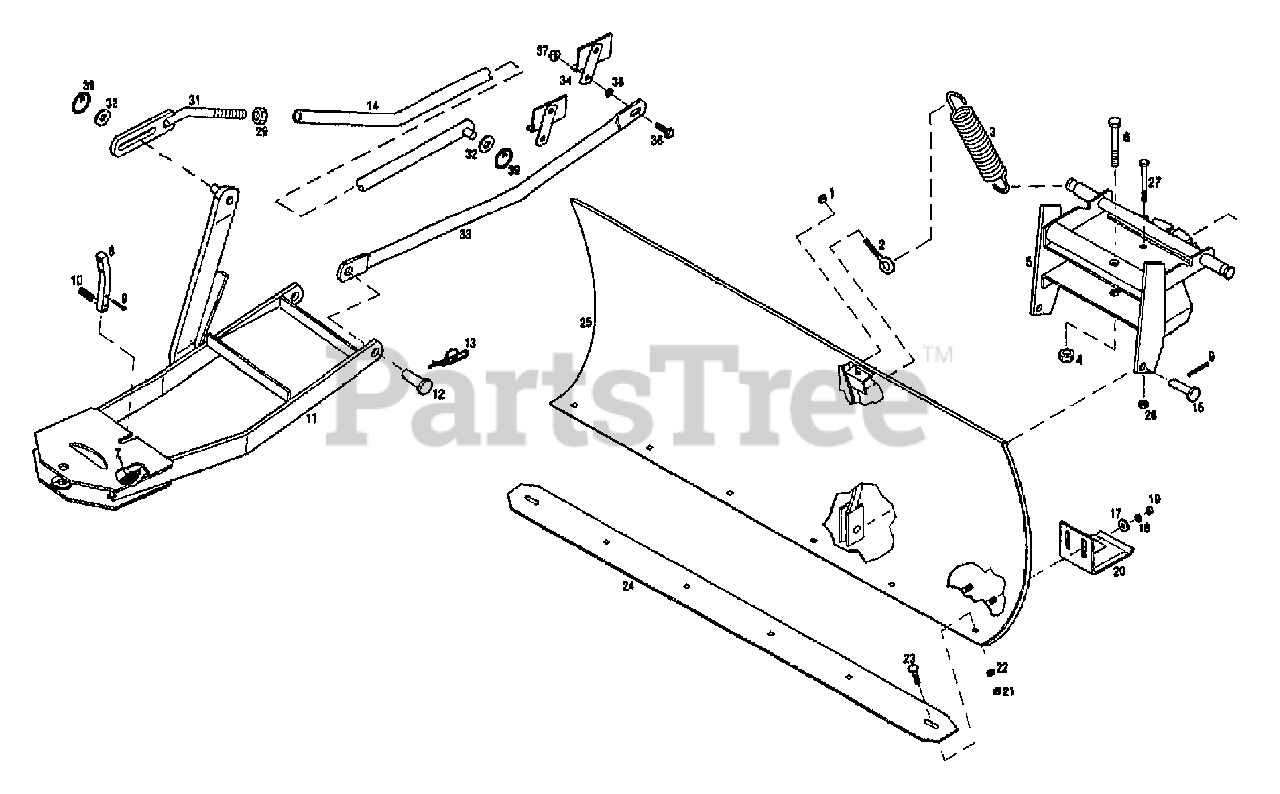

42" BLADE ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

2

MTD 1713077

BOLT-EYE 5/16-18X2.75 ZP

$

$

Not available

3

Troy-Bilt 1714844001

SPRING-EXT

$

$

Currently unavailable

4

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

5

Troy-Bilt 1731053001

ASSM-PLATE

$

$

Currently unavailable

6

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

?7

MTD 1700401

SPRING

$

$

Not available

?8

MTD 1714830

PIN-LATCH

$

$

Not available

9

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

10

Troy-Bilt 1704692

PIN-DRIVE .125X1.0

$

$

Not available

11

Troy-Bilt 1758736001

ASSM-HITCH

$

$

Currently unavailable

12

MTD 1724639

PIN-CLEVIS

$

$

Not available

13

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$3.99

$

In Stock, Qty 9

0

14

Troy-Bilt 1749338001

ASSM-LIFT TUBE

$

$

Currently unavailable

15

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

17

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

20

MTD 1715754001

SHOE-SKID

$

$

Not available

21

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

24

MTD 1700379001

BLADE-SCRAPER

$

$

Not available

25

Troy-Bilt 1751143001

ASSM-BLADE

$

$

Currently unavailable

27

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

28

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

?29

Troy-Bilt 1186250

NUT-JAM

$

$

Currently unavailable

31

MTD 1749341001

ASSM-LIFT ROD

$

$

Not available

32

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

33

MTD 1748863001

ASSM-STRUT SUPPORT

$

$

Not available

34

Troy-Bilt 1748840001

ASSM-BRKT RH

$

$

Currently unavailable

36

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

37

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

In Stock, only 1 left!

0

?38

Troy-Bilt 1103995

(BUY LOCAL)

$

$

Currently unavailable

39

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.49

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available

Troy-Bilt 21741

WEIGHT-(1 EA) FRONT WHEEL

$

$

Currently unavailable

Troy-Bilt 30902

WEIGHT-WHEEL REAR BLACK

$

$

Currently unavailable

Troy-Bilt 30911

WEIGHT-WHL REAR 10" 1 EA S/T

$

$

Currently unavailable

Troy-Bilt 1716190

CHAINS-23X8.50X12

$

$

Currently unavailable

MTD 1745130

CHAINS-TIRE 20X8.00-10

$

$

Not available

MTD 1754989

CHAINS-TIRE (AJ)

$

$

Not available

MTD 1900924

PAINT-SPRAYCAN BLACK {-}

$

$

Not available
