14026 - Troy-Bilt 48" Side-Discharge Mower Deck (SN: 140260100101 - 140261199998) GEAR CASE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck

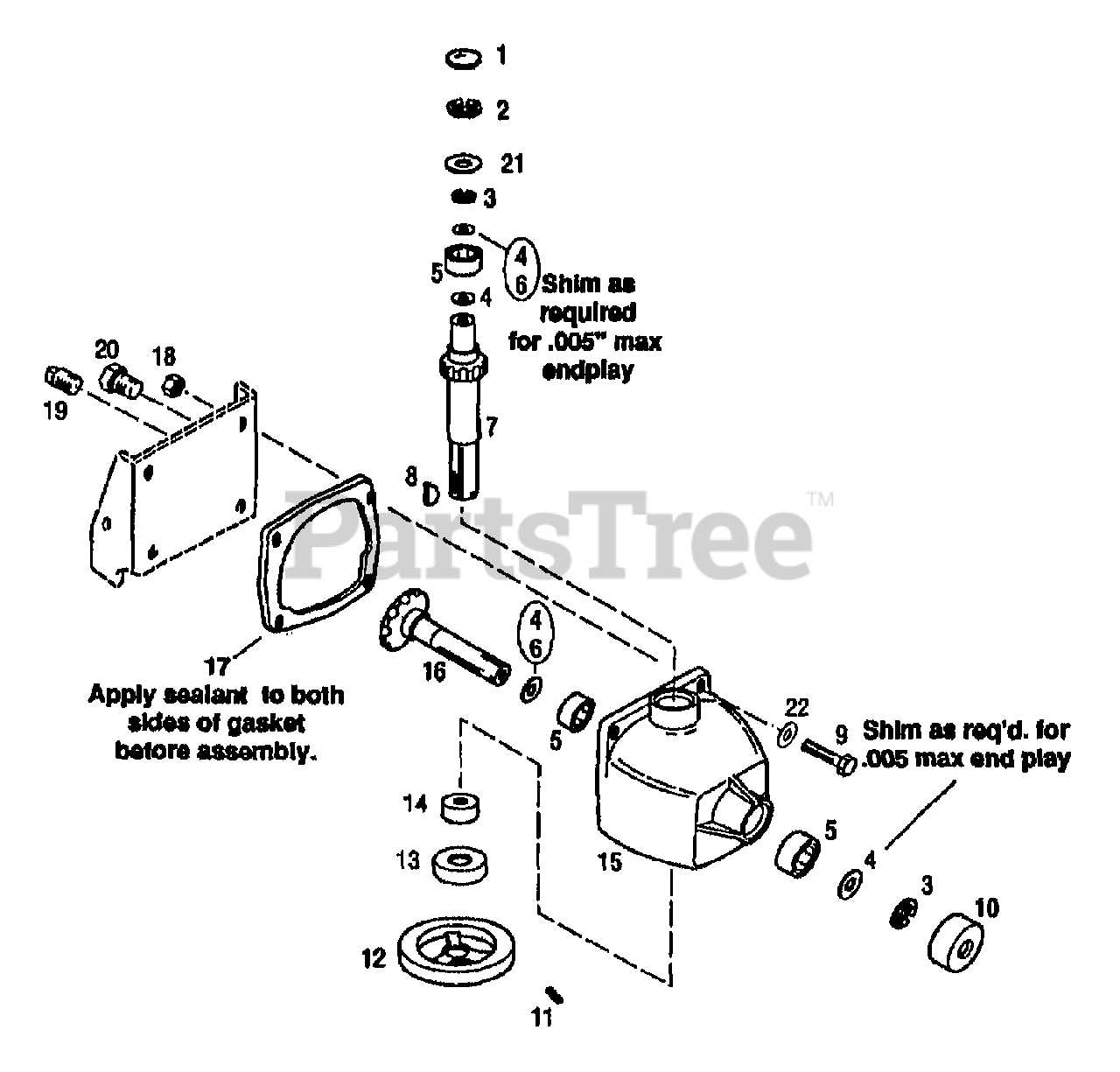

GEAR CASE ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1744918001

ASSM-GEAR CASE

$

$

Currently unavailable

1

Troy-Bilt 1711380

PLUG-EXPANSION

$

$

Not available

2

MTD 1118730

RING-RETAIN INT 1.942 DIA

$

$

Not available

3

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

4

MTD 1728832

SHIM-1.062X.789X.005

$

$

Not available

5

Troy-Bilt 1724813

BEARING-BALL

$

$

Currently unavailable

6

MTD 1728833

SHIM-1.062X.789X.01

$

$

Not available

7

Troy-Bilt 1724905

SHAFT-OUTPUT

$

$

Currently unavailable

8

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

9

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

10

Troy-Bilt 1723758

SEAL-OIL

$

$

Not available

11

MTD 1737419

SCR-SQ HD SET 5/16X3/4

$

$

Not available

12

Troy-Bilt 1744919

SHEAVE-DRIVE

$

$

Currently unavailable

13

Troy-Bilt 1185296

SEAL-OIL
(Superseded to SU-5000174)

$37.99

$

In Stock, Qty 5

0

14

MTD 1185280

BEARING-NEEDLE

$

$

Not available

15

MTD 1723754001

CASE-GEAR

$

$

Not available

16

Troy-Bilt 1724906

GEAR-BEVEL 26T

$

$

Not available

17

MTD 1745476

GASKET

$

$

Not available

18

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

19

MTD 1105678

PLUG-PIPE

$

$

Not available

20

MTD 1721442

VALVE

$

$

Not available

21

MTD 1718781

SHIM-.005

$

$

Not available

22

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1723456

LUBE-EP90 8OZ

$

$

Currently unavailable

Troy-Bilt 1730118

SEALANT-GE RTV (3 OZ)

$

$

Currently unavailable
