14037 - Troy-Bilt 40" Dual Stage Snow Thrower Attachment (SN: 140370100101 & Above) ROTATION SYSTEM WITH CHUTE Parts Diagram

40" Dual Stage Snow Thrower Attachment

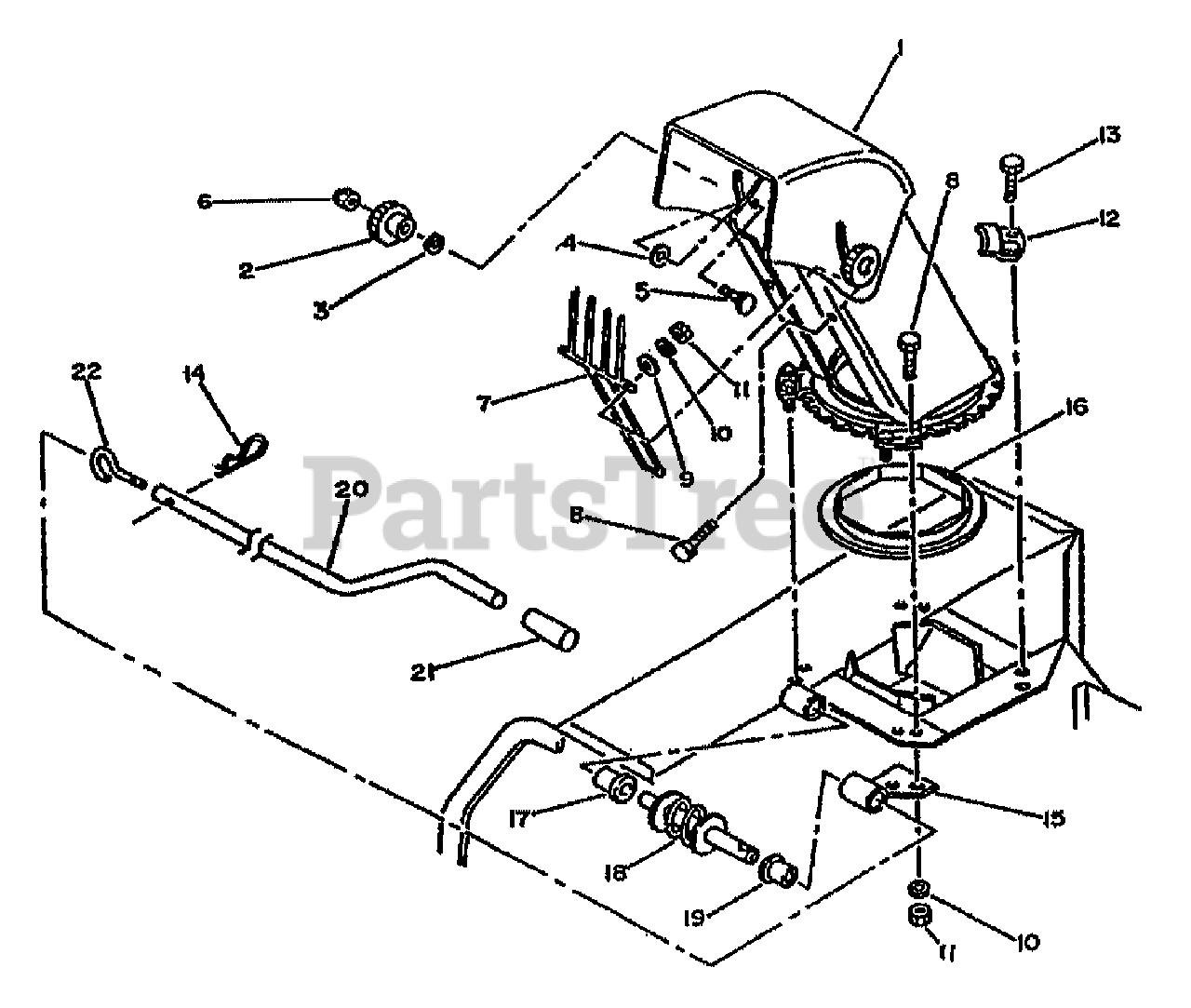

ROTATION SYSTEM WITH CHUTE Parts Diagram

  • Title

1

Troy-Bilt 1825530

ASSM-CHUTE & DEFLECTOR

$

$

Currently unavailable

2

Troy-Bilt 1825138

KNOB

$

$

Currently unavailable

3

MTD 1825531

WASHER-NYLON .3438 (11/32 HOLE

$

$

Not available

4

Troy-Bilt 1825532

WASHER-.438 NYLON (7/16 HOLE)

$

$

Currently unavailable

5

Troy-Bilt 1186103

BOLT-CARR .312
(Superseded to 710-0262)

$3.99

$

In Stock, Qty 14

0

6

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1825533

GUARD-HAND

$

$

Currently unavailable

8

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

11

Troy-Bilt 1110106

NUT-H/LK 1/4-20

$

$

Not available

12

MTD 1825140

PLATE-RETAINING

$

$

Not available

13

Troy-Bilt 1100804

SCR-HH 1/4-20X.5 GR5 YEL
(Superseded to 710-3013)

$4.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1825534

SUPT-WORM

$

$

Currently unavailable

16

Troy-Bilt 1825142

RING-NYLON

$

$

Currently unavailable

17

MTD 1825143

BUSHING

$

$

Not available

18

MTD 1825535

WORM-ROTATION

$

$

Not available

19

MTD 1825145

BUSHING

$

$

Not available

20

MTD 1825536

HANDLE

$

$

Not available

21

MTD 1825537

GRIP-HANDLE

$

$

Not available

22

Troy-Bilt 1825538

HOOK-HANDLE

$

$

Currently unavailable
