14037 - Troy-Bilt 40" Dual Stage Snow Thrower Attachment (SN: 140370100101 & Above) SNOWBLOWER DRIVE SYSTEM Parts Diagram

40" Dual Stage Snow Thrower Attachment

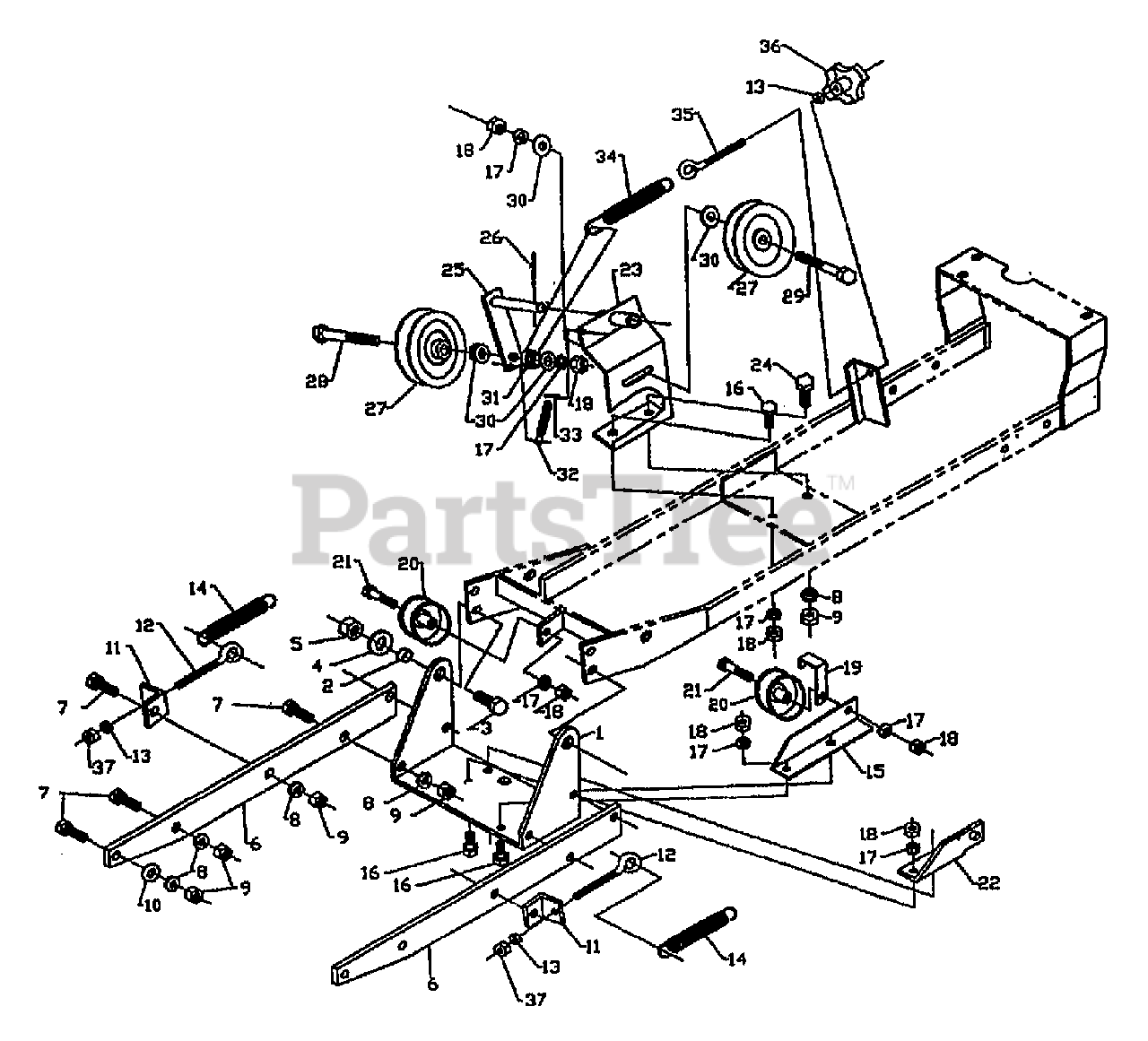

SNOWBLOWER DRIVE SYSTEM Parts Diagram

  • Title

1

Troy-Bilt 1825550

BRACKET-PIVOT

$

$

Currently unavailable

2

MTD 1730681

SPACER-TUBULAR

$

$

Not available

3

MTD 1100015

SCR-HH 1/4-20X1.25 G5 ZP

$

$

Not available

4

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

6

MTD 1825551

BAR-FLAT ATTACHING

$

$

Not available

7

Troy-Bilt 1825552

BOLT

$

$

Currently unavailable

8

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186232

NUT-HH 7/16-14X.375
(Superseded to 912-3019)

$6.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

11

MTD 1768849001

BRACKET-SPRING

$

$

Not available

12

Troy-Bilt 1744929

BOLT-EYE

$

$

Currently unavailable

13

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

14

MTD 1825553

SPRING-1.13 DIA X 5.75

$

$

Not available

15

MTD 1825554

SUPT-IDLER

$

$

Not available

16

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

19

MTD 1825555

GUIDE-BELT

$

$

Not available

20

MTD 1715340

PULLEY-IDLER

$

$

Not available

21

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1825556

BRACKET-PUSH

$

$

Currently unavailable

23

MTD 1825557

BRACKET-PULLEY

$

$

Not available

24

Troy-Bilt 1747656

SCR-HH 1/2-14X1.00
(Superseded to 1765196)

$3.99

$

In Stock, Qty 20+

0

25

MTD 1825558

IDLER-BELT

$

$

Not available

26

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 1749911

PULLEY

$68.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

29

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

30

MTD 1107384

WASHER-.94X.468X.065

$

$

Not available

31

MTD 1825559

SPRING FIXATION

$

$

Not available

32

MTD 1825560

SPRING-.5 DIA X 4.5

$

$

Not available

33

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

34

MTD 1825561

SPRING-1.13 DIA X 6.25

$

$

Not available

35

MTD 1825562

BOLT-EYE .31 NC X 5.0

$

$

Not available

36

Troy-Bilt 1825138

KNOB

$

$

Currently unavailable

37

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1825289

DECAL DANGER

$

$

Currently unavailable

Troy-Bilt 1825163

DECAL-DANGER

$

$

Currently unavailable

Troy-Bilt 1825164

DECAL-DANGER

$

$

Currently unavailable

Troy-Bilt 1825290

DECAL WARNING

$

$

Currently unavailable

MTD 1825162

DECAL-WARNING

$

$

Not available
