14037 - Troy-Bilt 40" Dual Stage Snow Thrower Attachment (SN: 140370100101 & Above) SNOWBLOWER HEAD Parts Diagram

40" Dual Stage Snow Thrower Attachment

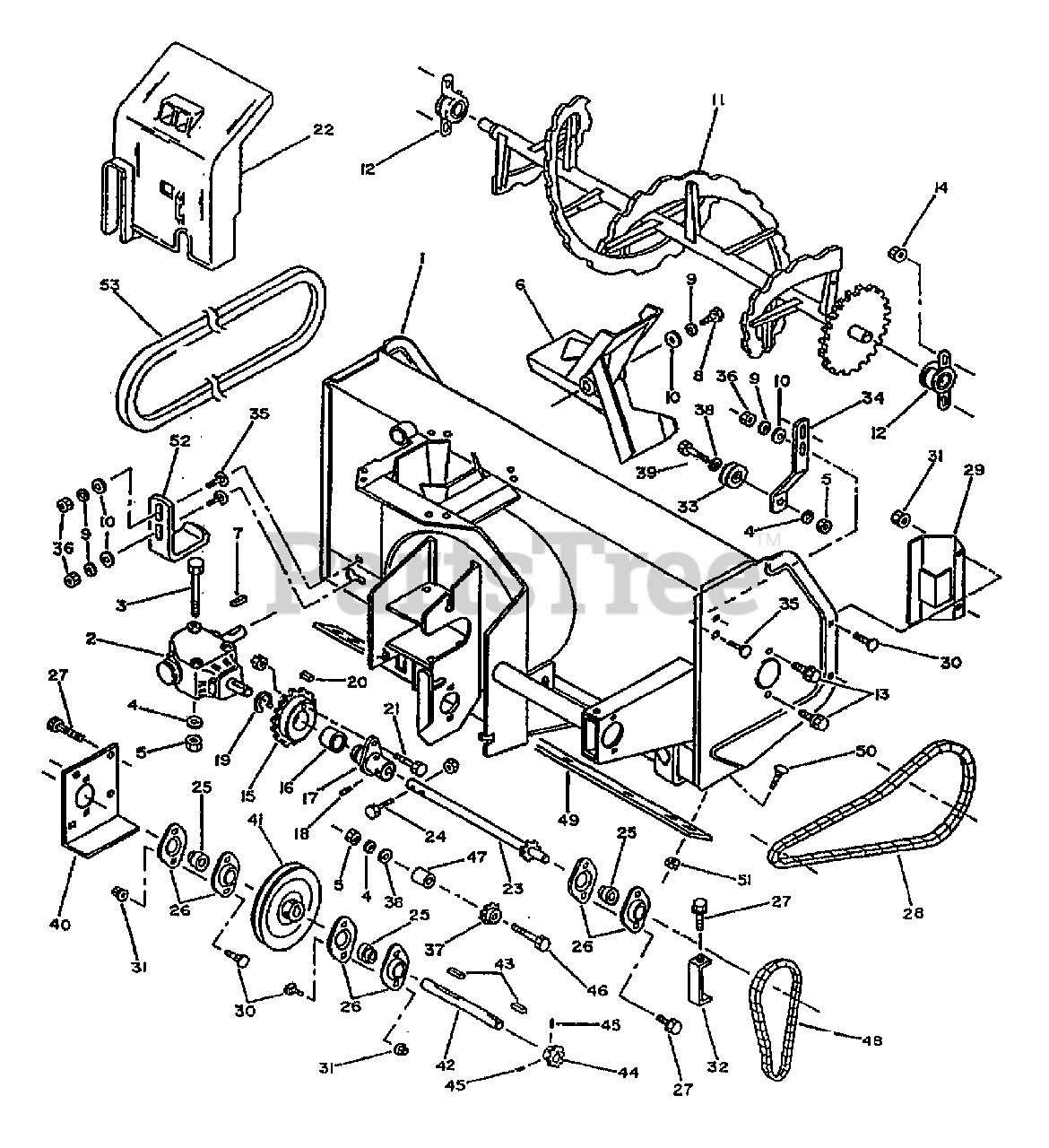

SNOWBLOWER HEAD Parts Diagram

  • Title

1

Troy-Bilt 1825508

HOUSING-BLOWER

$

$

Currently unavailable

2

MTD 1825509

ASSM-GEARBOX

$

$

Not available

3

Troy-Bilt 1111616

SCR-HH 3/8-16X4.00

$

$

Currently unavailable

4

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1825510

ASSM-FAN

$

$

Currently unavailable

7

MTD 1825511

KEY-8MM X 7MM X 35MM

$

$

Not available

8

Troy-Bilt 1860217

BOLT-M8X25
(Superseded to 710-3206A)

$3.99

$

In Stock, Qty 13

0

9

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

11

MTD 1825512

AUGER-40"

$

$

Not available

12

MTD 1825513

BUSHING-SIDEMOUNT

$

$

Not available

13

MTD 1186345

SCR

$

$

Not available

14

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

15

MTD 1825514

SPROCKET

$

$

Not available

16

MTD 1825515

BUSHING

$

$

Not available

17

MTD 1825516

PLATE-SHEAR

$

$

Not available

18

MTD 1182554

SCR-SET

$

$

Not available

19

MTD 1825517

RING-SNAP

$

$

Not available

20

MTD 1825518

KEY-8 X 8 X 35

$

$

Not available

21

MTD 1825519

IMPELLER-SHEAR BOLT

$

$

Not available

22

MTD 1825548

COVER

$

$

Not available

23

MTD 1825520

SHAFT-DRIVE

$

$

Not available

24

Troy-Bilt 1825521

AUGER-SHEAR BOLT

$

$

Not available

25

MTD 1825522

BEARING

$

$

Not available

26

MTD 1825523

BEARING-FLANGE

$

$

Not available

27

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

28

MTD 1825524

CHAIN (#40 91 LINKS)

$

$

Not available

28

MTD 1185026

LINK-CONNECTOR

$

$

Not available

29

MTD 1825525

GUARD-CHAIN

$

$

Not available

30

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

32

MTD 1825526

GUARD-CHAIN

$

$

Not available

33

Troy-Bilt 1825527

PULLEY-IDLER

$

$

Currently unavailable

34

MTD 1825528

ARM-ADJUSTER

$

$

Not available

35

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

36

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 1825529

SPROCKET-IDLER

$

$

Currently unavailable

38

MTD 1100265

WASHER-1.25X.5X.083 ZP

$

$

Not available

39

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 1825539

PLATE-BEARING SUPT

$

$

Currently unavailable

41

MTD 1825540

PULLEY

$

$

Not available

42

Troy-Bilt 1825541

SHAFT-DRIVE

$

$

Currently unavailable

43

Troy-Bilt 1104333

KEY-.188 SQ X 1.0
(Superseded to 914-0105)

$3.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 1825543

SPROCKET (40B10)

$

$

Currently unavailable

45

MTD 1187876

SCR-SET 1/4-20

$

$

Not available

46

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

47

MTD 1825542

SPACER-IDLER

$

$

Not available

48

Troy-Bilt 1825544

CHAIN-#40 (40 LINKS)

$

$

Currently unavailable

49

MTD 1825545

EDGE-CUTTING

$

$

Not available

50

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

51

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

52

MTD 1825546

SHOE-SKID

$

$

Not available

53

MTD 1825547

BELT

$

$

Not available
