14038 - Troy-Bilt 29" Tiller Attachment (SN: 140380200101 & Above) 29" TILLER ATTACHMENT Parts Diagram

29" Tiller Attachment

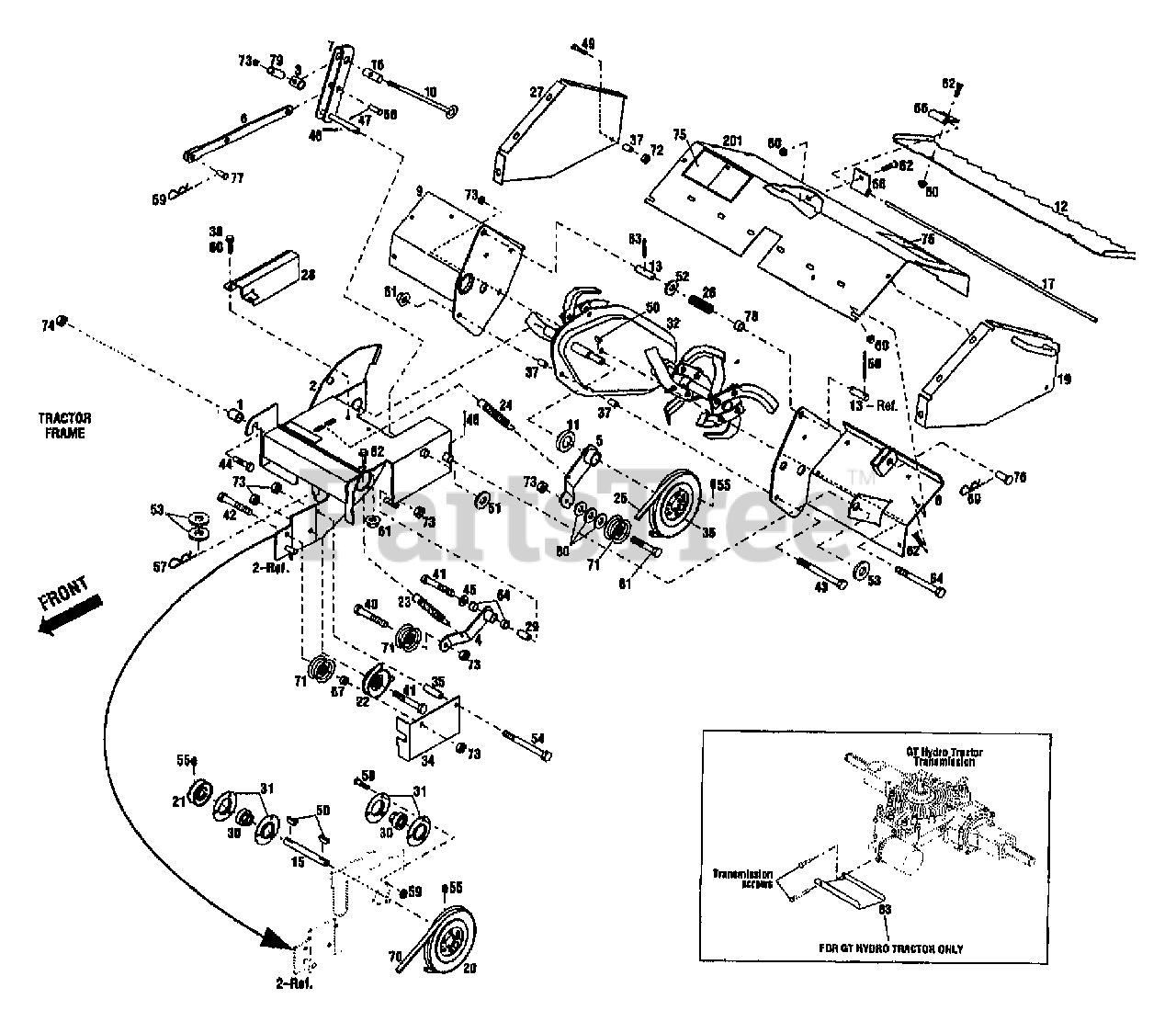

29" TILLER ATTACHMENT Parts Diagram

  • Title

1

MTD 1766328

SPACER-ATTACHMENT

$

$

Not available

2

MTD 1766421001

HITCH-TILLER

$

$

Not available

3

MTD 1766430

SPACER-1.0X.782X.81

$

$

Not available

4

MTD 1766433

ARM-IDLER

$

$

Not available

5

MTD 1766436

ARM-IDLER

$

$

Not available

6

MTD 1766441001

LINK

$

$

Not available

7

Troy-Bilt 1766443

ARM-PIVOT

$

$

Currently unavailable

8

Troy-Bilt 1766445001

PLATE-TINE COVER LH

$

$

Currently unavailable

9

Troy-Bilt 1766449001

PLATE-TINE COVER RH

$

$

Currently unavailable

10

MTD 1766453

ROD-PIVOT ARM

$

$

Not available

11

MTD 1766455

WASHER-CUP 2.12X1.18X.44

$

$

Not available

12

Troy-Bilt 1766456001

SHIELD-TINE HOOD

$

$

Currently unavailable

13

MTD 1766458

PIN

$

$

Not available

15

MTD 1766476

DRIVESHAFT-PULLEY

$

$

Not available

16

MTD 1766477

PIN

$

$

Not available

17

MTD 1766478

PIN-HINGE

$

$

Not available

19

Troy-Bilt 1767805001

COVER-TINE HOOD LH

$

$

Currently unavailable

20

MTD 1767832

PULLEY-6" DIA

$

$

Not available

21

MTD 1767833

PULLEY-2.50" DIA.

$

$

Not available

22

MTD 1767834

PULLEY-IDLER 3" DIA

$

$

Not available

23

MTD 1767843

SPRING-EXTENSION

$

$

Not available

24

MTD 1767844

SPRING-EXTENSION

$

$

Not available

25

MTD 1767848

BELT-V 30"

$

$

Not available

26

MTD 1767851

SPRING-COMPRESSION

$

$

Not available

27

MTD 1767872001

COVER-TINE HOOD RH

$

$

Not available

28

MTD 1767928001

COVER-BELT

$

$

Not available

29

MTD 1767932

SPACER-.625X.39X1.25

$

$

Not available

30

MTD 1767942

BEARING-BALL

$

$

Not available

31

Troy-Bilt 1767944

BEARING-FLANGE

$

$

Currently unavailable

32

0

TRANSMISSION

$

$

Not available

34

Troy-Bilt 1767996001

SHIELD-DEBRIS

$

$

Currently unavailable

35

Troy-Bilt 1768755

SPACER-.625X.406X2.12

$

$

Currently unavailable

?36

MTD 1985139

PULLEY-7" DIA

$

$

Not available

37

MTD 1985165

SPACER-.375X.812

$

$

Not available

38

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

?40

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

44

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.49

$

In Stock, only 1 left!

0

45

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

47

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

48

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

49

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

50

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

51

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$3.99

$

In Stock, Qty 20+

0

53

MTD 1107387

WASHER-1.5X.812X.134 ZP

$

$

Not available

54

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

55

MTD 1182554

SCR-SET

$

$

Not available

?56

Troy-Bilt 1185284

PIN-ROLL .25X2.25
(Superseded to 715-0121)

$6.49

$

In Stock, Qty 12

0

57

Troy-Bilt 1185590

PIN-HITCH .149DIA

$4.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 1186069

SCR-CARR 1/4-20X.75 G2 ZP
(Superseded to 710-0703)

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

64

MTD 1714299

BUSHING-FLANGE

$

$

Not available

66

MTD 1718196

HINGE-HOOD

$

$

Not available

67

MTD 1985164

SPACER-.625X.406X.563

$

$

Not available

68

MTD 1722409

PIN-CLEVIS .5X1.75 ZP

$

$

Not available

69

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

70

MTD 1726723

BELT-V

$

$

Not available

71

MTD 1729440

PULLEY-IDLER

$

$

Not available

72

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

75

Troy-Bilt 1742798

DECAL-OPEI CAUTION
(Superseded to 1739687)

$6.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 1752309

PIN-CLEVIS .625X1.44
(Superseded to 711-0654)

$14.99

$

Usually ships in 3-6 days

0

77

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

78

Troy-Bilt 1768780

SPACER-.875X.63X.5

$

$

Currently unavailable

79

MTD 1985164

SPACER-.625X.406X.563

$

$

Not available

80

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

?82

MTD 1186345

SCR

$

$

Not available

83

MTD 1768877001

SHIELD

$

$

Not available

93

MTD 1768809

KIT-SHIFT ON FLY LOCKOUT

$

$

Not available

201

MTD 1768767

HOOD W/DECALS

$

$

Not available

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available
