14049 - Troy-Bilt 38" Mulching Mower Deck (SN: 140490100101 & Above) 38" MULCHING MOWER DECK Parts Diagram

38" Mulching Mower Deck

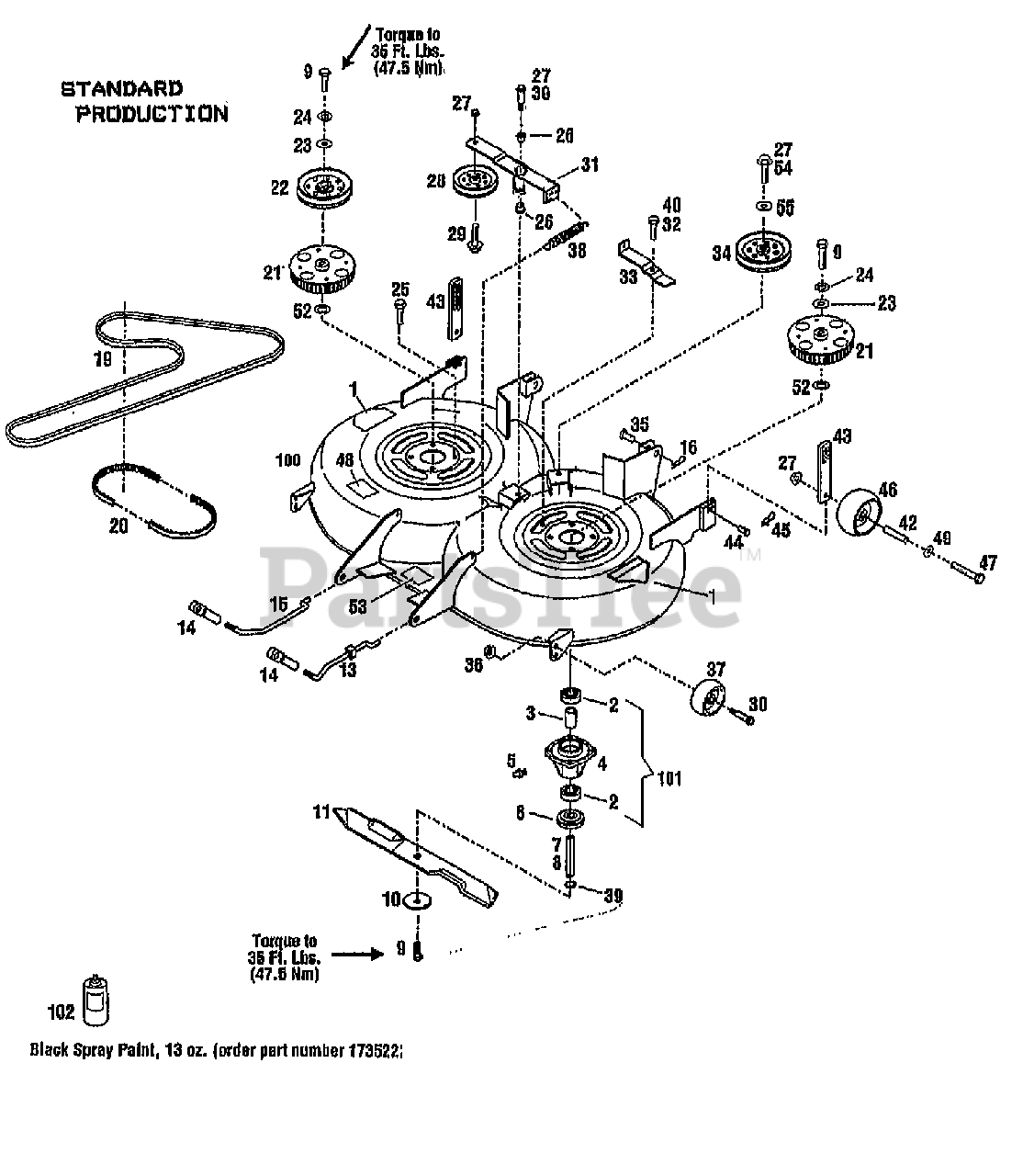

38" MULCHING MOWER DECK Parts Diagram

  • Title

1

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$6.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$32.99

$

In Stock, Qty 19

0

3

Troy-Bilt 1746869

SPACER

$17.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 7

0

5

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 1765029

SPACER-BLADE

$12.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1766061

SHAFT-SPINDLE MED. H/T
(Superseded to 1918880)

$97.99

$

In Stock, Qty 12

0

8

MTD 1765027

SHAFT-SPINDLE LONG

$

$

Not available

9

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1765197

WASHER-BELLEVILLE

$24.99

$

In Stock, Qty 11

0

11

Troy-Bilt 1765217

BLADE-MULCHING
(Superseded to 1772303)

$49.99

$

In Stock, Qty 6

0

13

MTD 1766052

ROD-LIFT FRONT LH

$

$

Not available

14

Troy-Bilt 1752554

ROD-END

$64.99

$

Usually ships in 3-6 days

0

15

MTD 1766051

ROD-LIFT FRONT RH

$

$

Not available

16

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

19

Troy-Bilt 1765211

BELT-DRIVE PTO

$66.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 1765212

BELT-DRIVE 38"
(Superseded to 1773601)

$65.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 1765406

SPROCKET-56T GRIVORY
(Superseded to 913-04050)

$151.99

$

In Stock, Qty 6

0

22

Troy-Bilt 1765210

ASSM-SHEAVE DRIVE

$

$

Currently unavailable

23

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$8.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

In Stock, Qty 12

0

26

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

27

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 1749764

PULLEY

$

$

Not available

29

MTD 1186350

SCR-HFLK 3/8-16X1.75 G5ZP

$

$

Not available

30

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$9.49

$

In Stock, only 2 left!

0

31

MTD 1771967

ASSM-IDLER ARM

$

$

Not available

32

Troy-Bilt 1103196

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

33

MTD 1765327

BRKT-BELT TENSION ADJ

$

$

Not available

34

Troy-Bilt 1749911

PULLEY

$68.99

$

Usually ships in 3-6 days

0

35

MTD 1719367

PIN-CLEVIS .625X2.25

$

$

Not available

36

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 1762138

WHEEL-GAGE

$23.99

$

In Stock, only 3 left!

0

38

Troy-Bilt 1756595

SPRING-EXTENSION

$16.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

40

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 1766342

SPACER-GAGE WHEEL

$

$

Not available

43

Troy-Bilt 1766189001

LEVER-GAGE WHEEL ADJUST

$

$

Not available

44

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 1766087

WHEEL-GAGE
(Superseded to 753-04856A)

$19.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 1111615

SCR-HH 3/8-16X3.5 G5 ZP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 1768540

DECAL-BELT DRIVE

$

$

Currently unavailable

49

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 1766787

WASHER-THRUST .75 ID

$5.99

$

In Stock, only 4 left!

0

53

Troy-Bilt 1768862

DECAL-LIFT ROD

$

$

Currently unavailable

54

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

55

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 1768862

DECAL-LIFT ROD

$

$

Currently unavailable

54

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

55

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

100

Troy-Bilt 1767750

DECK-MOWER W/DECALS

$

$

Currently unavailable

101

Troy-Bilt 1769048

ASSM-MOWER SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 7

0

102

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available
