1405 (13A-145F100) - Cub Cadet Garden Tractor 14 HP B&S Vanguard Engine Parts Diagram

Garden Tractor

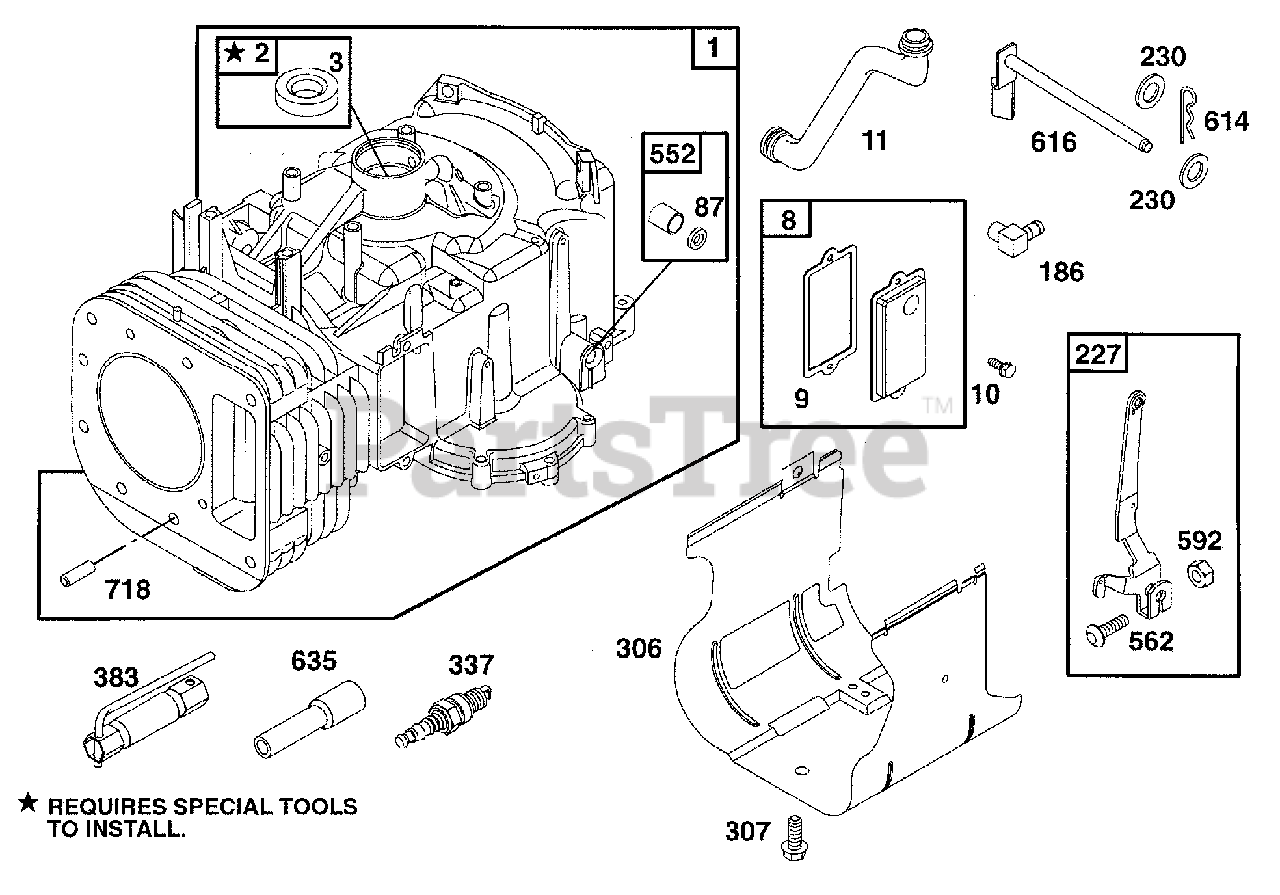

14 HP B&S Vanguard Engine Parts Diagram

  • Title

Cub Cadet BS-28Q777-0647-E1

14 HP B&S Vanguard Engine

$

$

Currently unavailable

1

Cub Cadet BS-496412

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-399265

Bushing/Seal Kit
(Superseded to BS-797673)

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Oil Seal
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495734

Breather Assembly

$55.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27803

Breather Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Hex Screw
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-281246

Breather Tube
(Superseded to BS-691328)

$15.99

$

Usually ships in 2-12 days

0

87

Cub Cadet BS-491323

Governor Shaft Seal
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

186

Cub Cadet BS-67218

Hose Connector

Note: (Vacuum Line)

$

$

Not available

227

Cub Cadet BS-493935

Governor Lever

$

$

Not available

230

Cub Cadet BS-94927

Flat Washer
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-225020

Cylinder Shield

$

$

Not available

307

Cub Cadet BS-94930

Hex Screw

$

$

Not available

337

UNKNOWN

$

$

Not available

383

UNKNOWN

$

$

Not available

552

Cub Cadet BS-491986

Governor Crank Bushing

$

$

Not available

562

Cub Cadet BS-94907

Governor Lever Bolt

$

$

Not available

592

Cub Cadet BS-231978

Hex Nut

$

$

Not available

614

Cub Cadet BS-93306

Cotter Pin

$

$

Not available

616

Cub Cadet BS-495157

Governor Crank
(Superseded to BS-692012)

$13.99

$

In Stock, only 4 left!

0

635

Cub Cadet BS-280872

Spark Plug Boot
(Superseded to BS-691909)

$4.99

$

In Stock, Qty 10

0

718

Cub Cadet BS-230192

Locating Pin
(Superseded to BS-690959)

$6.99

$

Usually ships in 2-12 days

0
