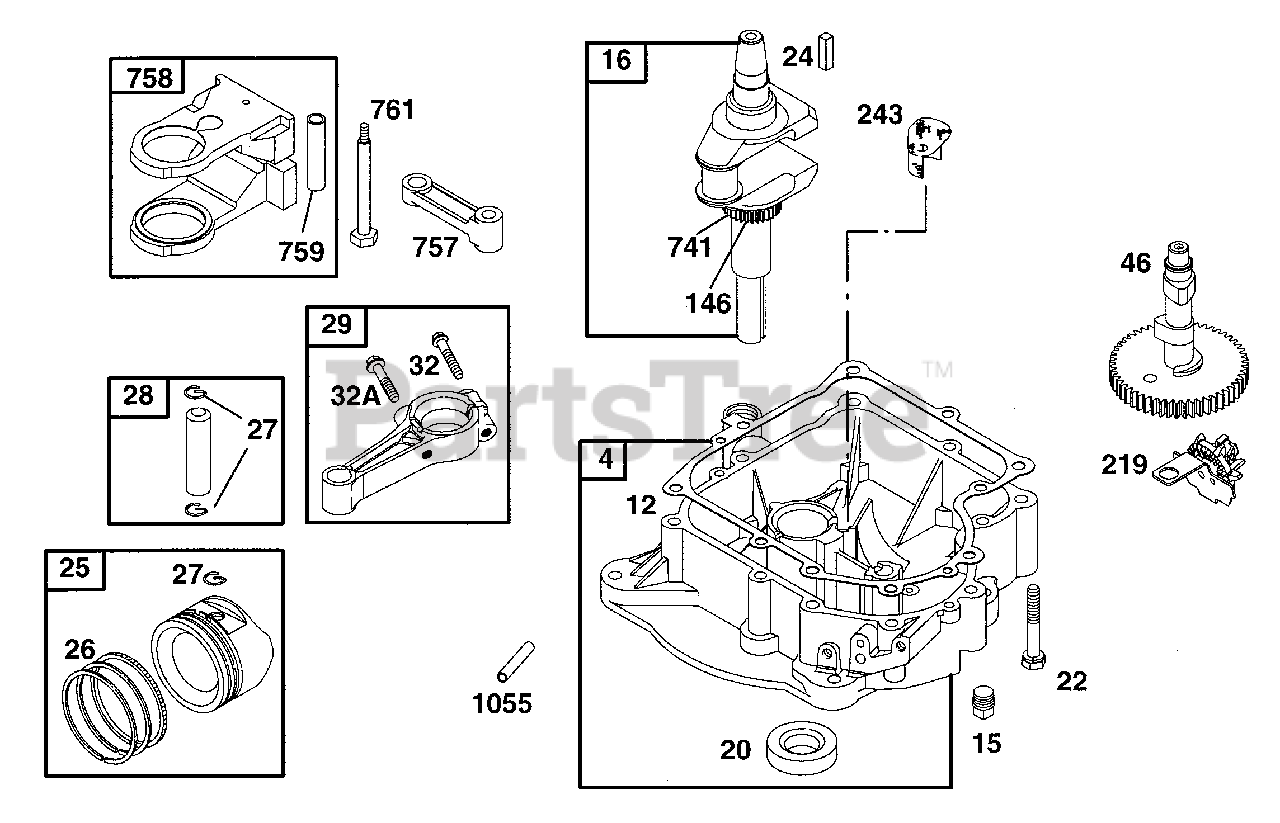

1405 (13A-145F100) - Cub Cadet Garden Tractor Crankcase Parts Diagram

Garden Tractor

Crankcase Parts Diagram

  • Title

4

Cub Cadet BS-496742

Engine Sump

$200.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-271916

Crankcase Gasket (Standard)
(Superseded to BS-692226)

$6.99

$

In Stock, only 3 left!

0

Cub Cadet BS-271997

Crankcase Gasket (.005")
(Superseded to BS-692406)

$9.49

$

In Stock, only 1 left!

0

Cub Cadet BS-271996

Crankcase Gasket (.009")
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

15

Cub Cadet BS-94239

Oil Drain Plug
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-498971

Crankshaft

$

$

Not available

20

Cub Cadet BS-291675

Oil Seal
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692125

Hex Screw

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499284

Piston Assembly (Standard)

$84.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499288

Piston Assembly (.010" OS)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499292

Piston Assembly (.020" OS)

$

$

Not available

Cub Cadet BS-499296

Piston Assembly (.030" OS)

$86.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-495854

Ring Set (Standard)

$79.99

$

In Stock, Qty 6

0

Cub Cadet BS-495852

Ring Set (.010" OS)

$29.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-495851

Ring Set (.020" OS)

$

$

Currently unavailable

Cub Cadet BS-495855

Ring Set (.030" OS)

$

$

Currently unavailable

27

Cub Cadet BS-263129

Piston Pin Lock

$

$

Not available

28

Cub Cadet BS-498319

Piston Pin (Standard)

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498320

Piston Pin (.005" OS)

$19.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-494504

Connecting Rod (Standard)
(Superseded to BS-494504S)

$112.99

$

In Stock, Qty 5

0

Cub Cadet BS-494490

Connecting Rod (.020")

$

$

Currently unavailable

32

Cub Cadet BS-94695

Connecting Rod Screw (1-7/8")

$

$

Currently unavailable

32A

Cub Cadet BS-94648

Connecting Rod Screw (1-5/8")

$

$

Currently unavailable

?43

Cub Cadet BS-490815

Governor/Oil Slinger
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 11

0

46

Cub Cadet BS-496885

Cam Gear

$

$

Not available

146

Cub Cadet BS-94196

Timing Key

$

$

Not available

219

UNKNOWN

$

$

Not available

243

UNKNOWN

$

$

Not available

741

Cub Cadet BS-262932

Timing Gear
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-213998

Counterweight Link

$

$

Not available

758

Cub Cadet BS-399891

Counterweight
(Superseded to BS-692423)

$222.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-230787

Counterweight Pin
(Superseded to BS-691239)

$8.99

$

In Stock, only 1 left!

0

761

Cub Cadet BS-94593

Hex Screw

$

$

Not available

1055

Cub Cadet BS-231931

Oil Pump Tube
(Superseded to BS-690528)

$8.49

$

Usually ships in 2-12 days

0
