1405 (13A-145F100) - Cub Cadet Garden Tractor Starter Parts Diagram

Garden Tractor

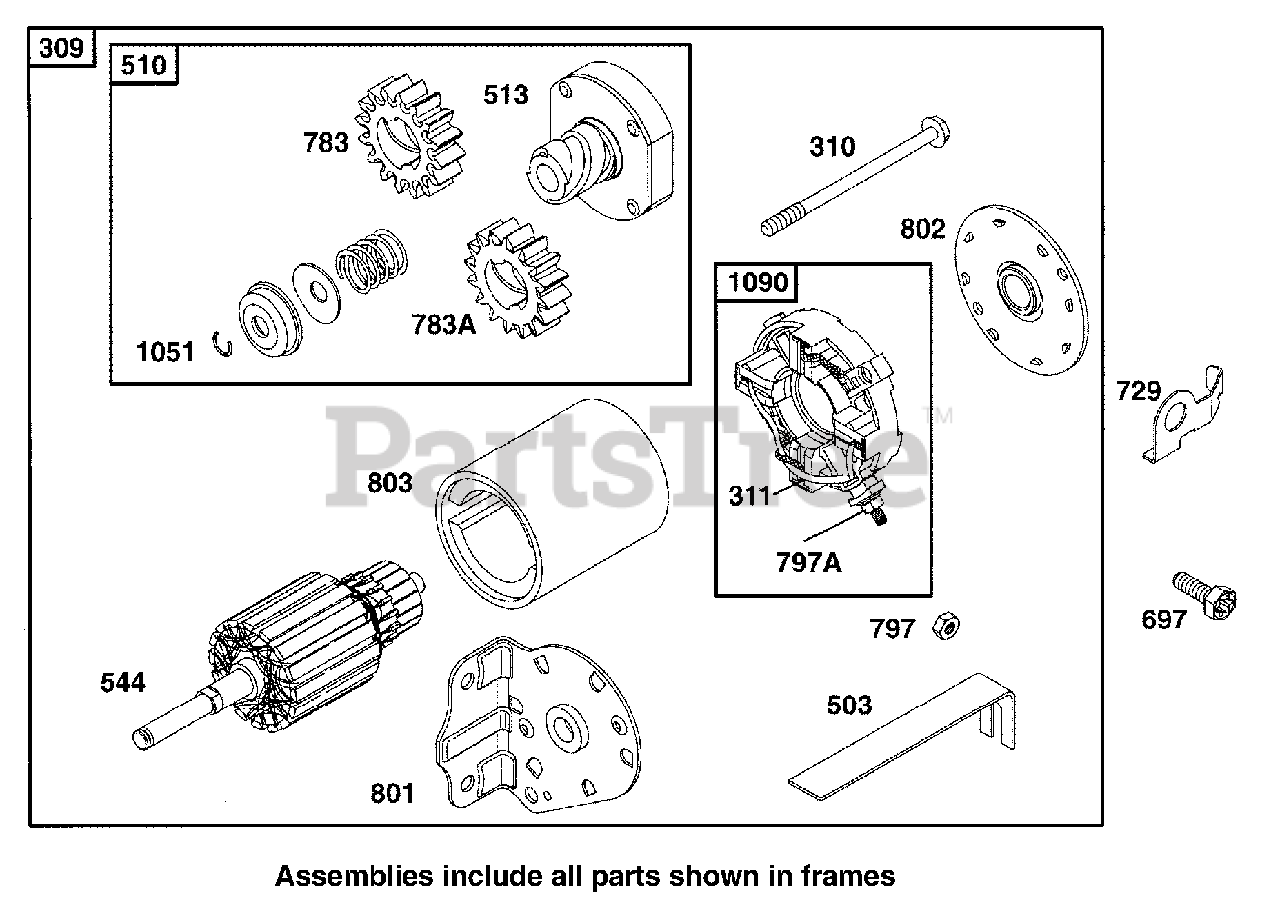

Starter Parts Diagram

  • Title

309

Cub Cadet BS-497595

Starter Motor

Note: (3-5/8" Housing Length for Plastic Ring Gear Only)

$110.99

$

In Stock, Qty 5

0

Cub Cadet BS-693054

Starter
(Superseded to BS-497595)

Note: Motor (3-5/8" Housing Length for Aluminum Ring Gear Only)

$110.99

$

In Stock, Qty 5

0

310

Cub Cadet BS-94003

Bolt (Starter Motor)

$

$

Currently unavailable

311

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

503

Cub Cadet BS-806000

Starter Strap
(Superseded to BS-691532)

$6.49

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-497606

Starter Drive
(Superseded to BS-696541)

$

$

Not available

513

Cub Cadet BS-398003

Drive Clutch
(Superseded to BS-692024)

$21.99

$

In Stock, only 1 left!

0

544

Cub Cadet BS-497603

Starter Armature

$

$

Not available

?675

Cub Cadet BS-225137

Flat Washer (Starter Motor Mounting)

$

$

Not available

697

Cub Cadet BS-94951

Screw (Starter Motor Mounting)
(Superseded to BS-791680)

$3.99

$

In Stock, Qty 6

0

729

Cub Cadet BS-225170

Wire Clip

$

$

Not available

783

Cub Cadet BS-693058

Starter Gear (For Plastic Ring Gear Only)
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

783A

Cub Cadet BS-693059

Starter Gear (For Aluminum Ring Gear Only)
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

797

Cub Cadet BS-92278

Nut (Starter Terminal)
(Superseded to 912-0121)

$3.99

$

In Stock, Qty 20+

0

797A

Cub Cadet BS-693167

Nut (Starter Terminal)

$4.49

$

Usually ships in 2-12 days

0

801

Cub Cadet BS-497626

Drive Cap
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-497607

Cap End

$

$

Not available

803

Cub Cadet BS-497604

Starter Housing (3-5/8 Housing Length)

$

$

Not available

1051

Cub Cadet BS-263080

Retaining Ring
(Superseded to BS-691265)

$5.49

$

In Stock, Qty 7

0

1090

Cub Cadet BS-497605

Brush Retainer
(Superseded to BS-691293)

$29.99

$

In Stock, Qty 6

0
