14061 - Troy-Bilt 60" Side-Discharge Mower Deck (SN: 120900100101 - 140610200100) RIGHT ANGLE GEAR BOX ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

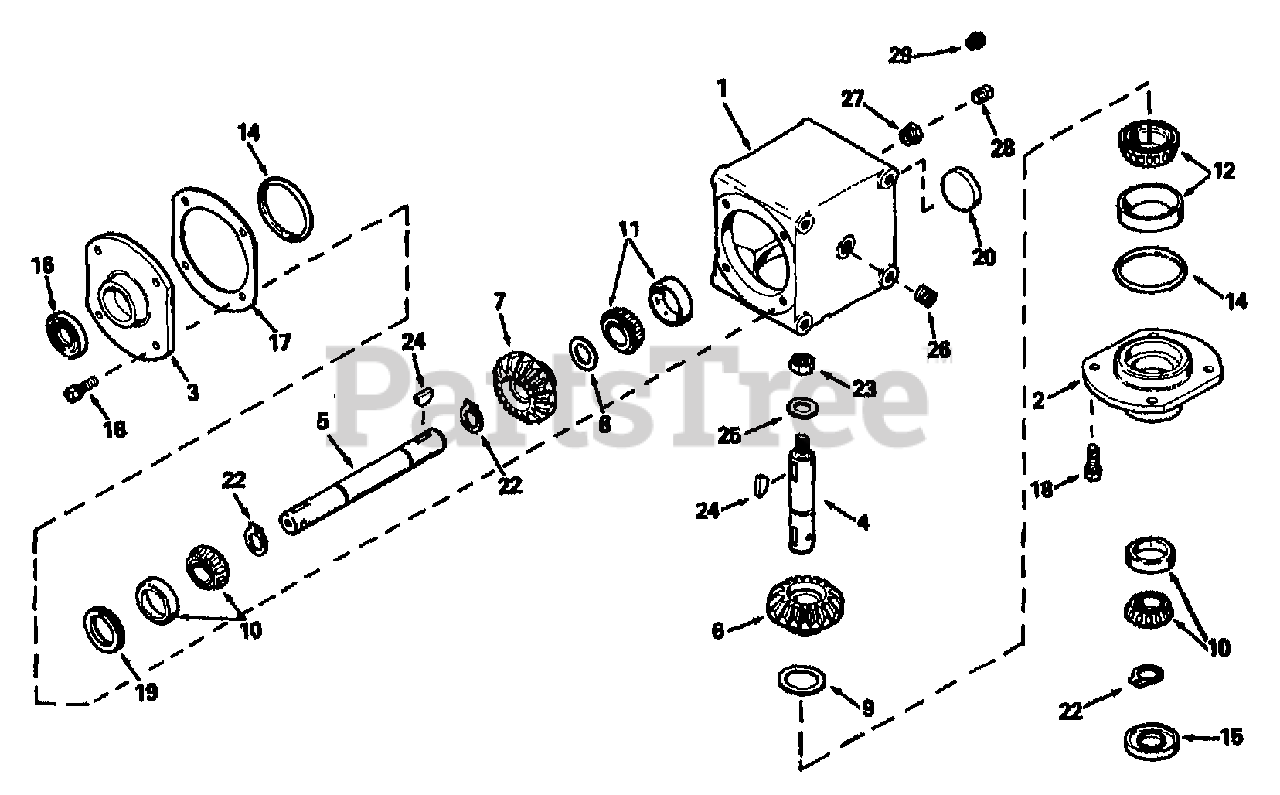

RIGHT ANGLE GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Right Angle Drive Housing

$

$

Not available

2

Retainer Cap

$

$

Not available

3

Retainer Cap

$

$

Not available

4

Output Shaft

$

$

Not available

5

Input Shaft

$

$

Not available

6

Bevel Gear (20 teeth)

$

$

Not available

7

Bevel Gear (27 teeth)

$

$

Not available

8

Shim, 1-1/2" O.D. x 1-1/64 I.D. x .002 thick

$

$

Not available

9

Shim, 2.000" O.D. x 1.531 I.D. x .002 thick

$

$

Not available

10

Bearing & Cup Ass'y

Note: (Ass'y may include shim washer which is not required at this location.)

$

$

Not available

11

Bearing & Cup Ass'y

Note: (Ass'y may include Ref. 9. Shim Washer. Shim Washer must be replaced if included)

$

$

Not available

12

Bearing & Cup Ass'y

Note: (Ass'y may include Ref. 9. Shim Washer. Shim Washer must be replaced if included)

$

$

Not available

14

"O" Ring

$

$

Not available

15

Oil Seal

$

$

Not available

16

Oil Seal

$

$

Not available

17

Cap Retainer Shim

$

$

Not available

18

Hex Hd. Sems Screw, 5/16-18 x 1

$

$

Not available

19

Load Ring

$

$

Not available

20

Plug

$

$

Not available

22

Retaining Ring

$

$

Not available

23

Jam Nut, 3/4-16

$

$

Not available

24

Woodruff Key

$

$

Not available

25

Flat Washer

$

$

Not available

26

Pipe Plug, 1/4-18

$

$

Not available

27

Reducer Pipe, 1/4-18 to 1/8-27

$

$

Not available

28

Pipe Plug

$

$

Not available

29

Relief Valve

$

$

Not available

$

$
