14063 - Troy-Bilt 46" Two Stage Snow Thrower Attachment (SN: 140630100101 & Above) SNOWBLOWER HEAD Parts Diagram

46" Two Stage Snow Thrower Attachment

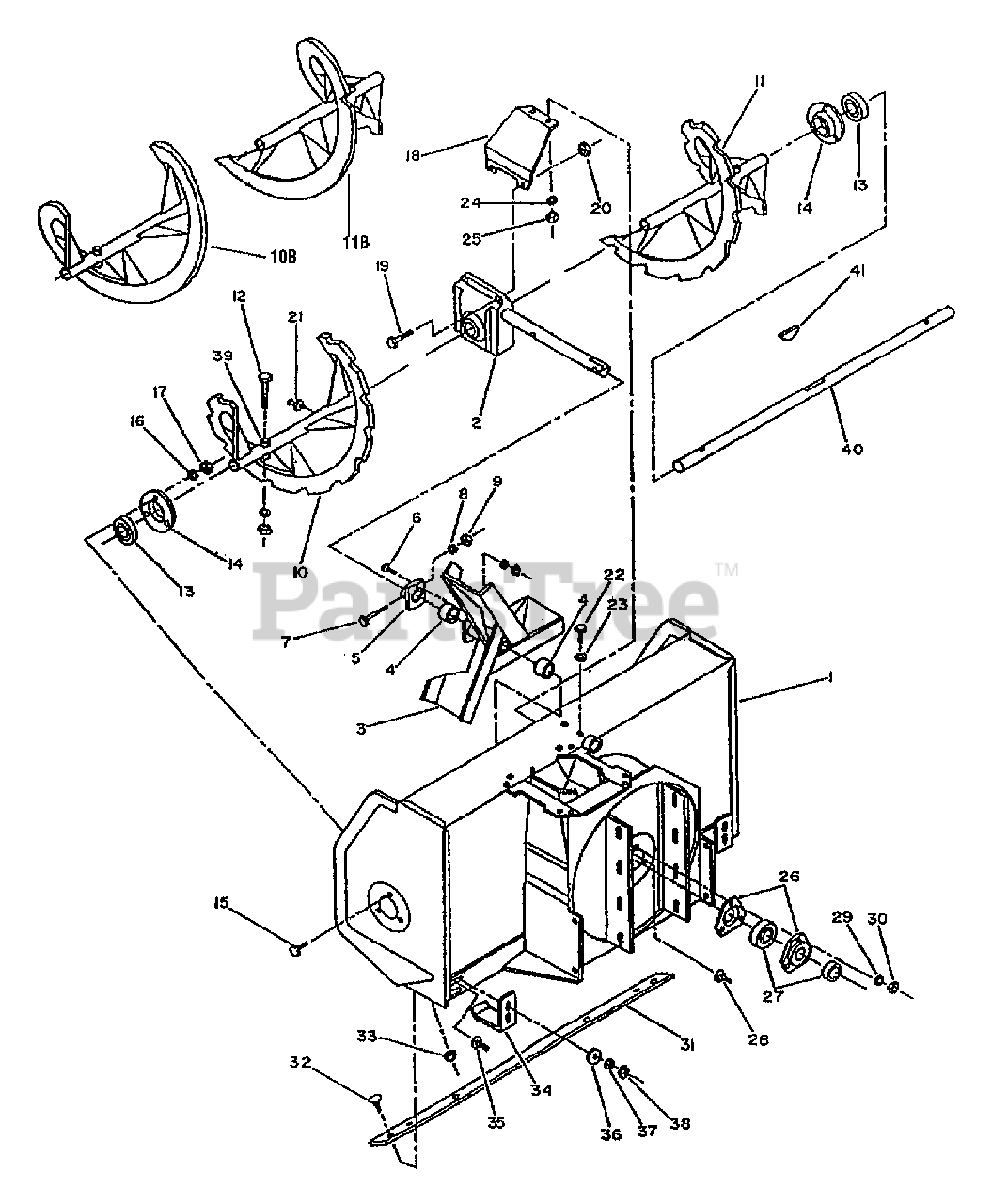

SNOWBLOWER HEAD Parts Diagram

  • Title

1

Troy-Bilt 1825100

FRAME

$

$

Currently unavailable

2

MTD 1825004

ASSM-WORM GEAR

$

$

Not available

3

MTD 1825122

ASSM-FAN

$

$

Not available

4

MTD 1825123

BUSHING

$

$

Not available

5

Troy-Bilt 1825007

COUPLING

$

$

Currently unavailable

6

MTD 1825092

BOLT

$

$

Not available

7

MTD 1111606

SCR-HH 5/16-18X2.00

$

$

Not available

8

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1825593

AUGER-LH SCALLOP 46"

$

$

Currently unavailable

10B

MTD 1825127

AUGER-RH

$

$

Not available

11

Troy-Bilt 1825594

AUGER-RH SCALLOP 46"

$

$

Currently unavailable

11B

Troy-Bilt 1825235

BOLT-SHEAR

$

$

Currently unavailable

12

Troy-Bilt 1825235

BOLT-SHEAR

$

$

Currently unavailable

13

Troy-Bilt 1825128

BEARING

$

$

Currently unavailable

14

MTD 1825129

FLANGE

$

$

Not available

15

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1825130

BRACKET

$

$

Currently unavailable

19

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

20

Troy-Bilt 1983038

NUT-H/LK 5/16-18 NYLOCK
(Superseded to 912-0429)

$3.99

$

In Stock, Qty 20+

0

21

MTD 1825189

FITTING

$

$

Not available

22

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 1825008

FLANGE

$

$

Currently unavailable

27

Troy-Bilt 1825009

BRG W/COLLAR

$

$

Currently unavailable

28

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

29

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 1825132

BAR-SCRAPER

$

$

Not available

32

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

33

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 1825133

SHOES-SKID

$

$

Currently unavailable

35

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

36

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

MTD 1825134

BUSHING

$

$

Not available

40

Troy-Bilt 1825026

SHAFT-OUTPUT

$

$

Currently unavailable

41

MTD 1825025

KEY-WOODRUFF

$

$

Not available
