14064 - Troy-Bilt 54" Hydraulic Angling Snow Blade (SN: 140640100101 & Above) 54" HYD. ANGLING SNOW BLADE Parts Diagram

54" Hydraulic Angling Snow Blade

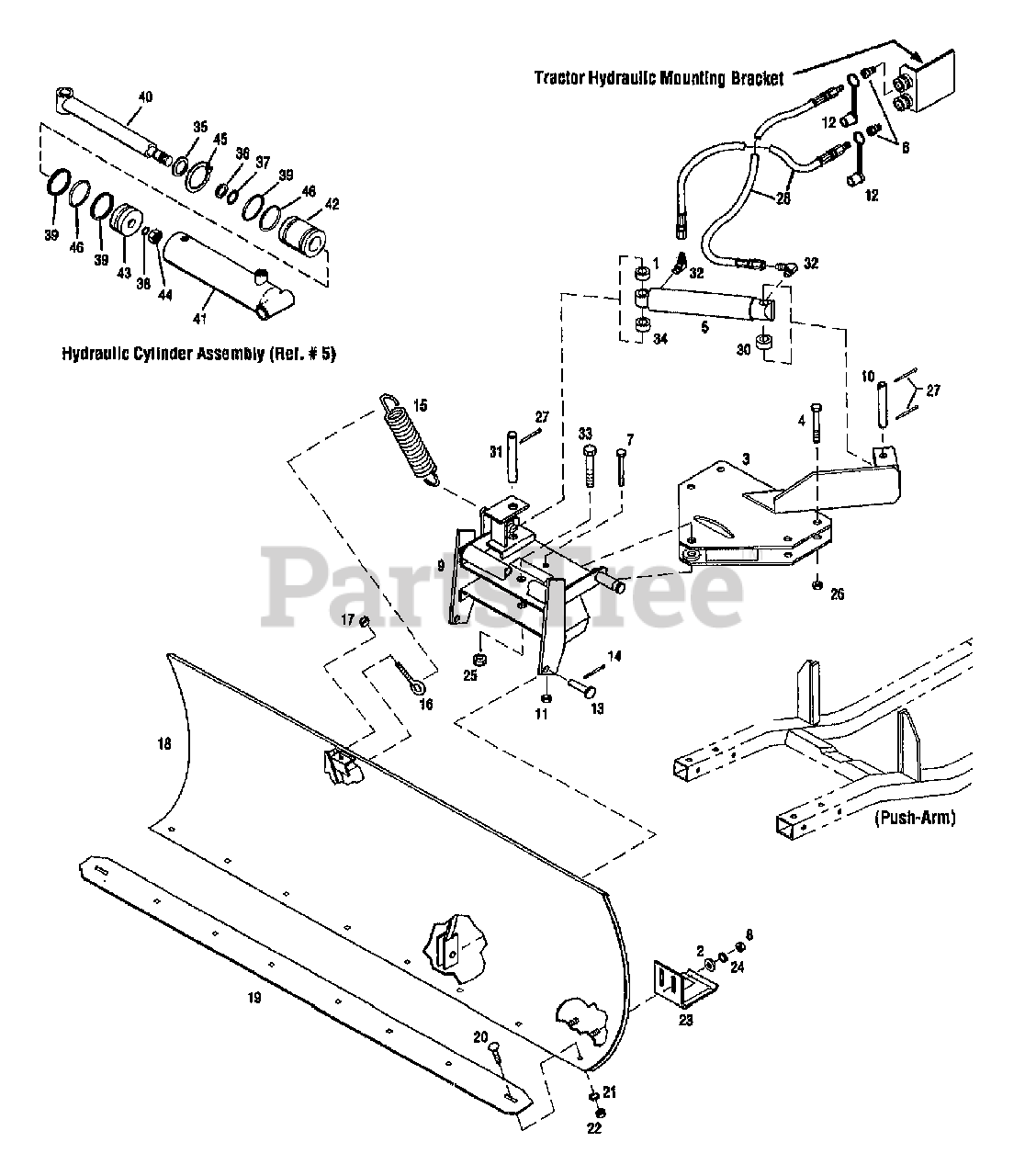

54" HYD. ANGLING SNOW BLADE Parts Diagram

  • Title

1

Troy-Bilt 1749591

SPACER-1.0X.781X.5

$

$

Currently unavailable

2

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1749594001

HITCH-SNOWBLADE

$

$

Currently unavailable

4

MTD 1100056

SCR-HH 1/2-13X2.5 G5 ZP

$

$

Not available

5

Troy-Bilt 1725725

ASSM-CYL HYDRAULIC

$

$

Currently unavailable

6

Troy-Bilt 1863869

COUPLING-HYDRAULIC

$

$

Currently unavailable

7

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

8

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1749589001

PLATE-PIVOT

$

$

Currently unavailable

10

Troy-Bilt 1749595

PIVOT-PIN

$

$

Currently unavailable

11

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1720732

CAP-DUST

$

$

Currently unavailable

13

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

14

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

15

Troy-Bilt 1714844001

SPRING-EXT

$

$

Currently unavailable

16

MTD 1713077

BOLT-EYE 5/16-18X2.75 ZP

$

$

Not available

17

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1719089001

BLADE-SNOW

$

$

Currently unavailable

19

Troy-Bilt 1719090001

BLADE-SCRAPER

$

$

Currently unavailable

20

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

21

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1715754001

SHOE-SKID

$

$

Not available

24

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

26

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

27

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

28

Troy-Bilt 1717625

ASSM-HOSE HYDRAULIC

$

$

Currently unavailable

30

Troy-Bilt 1749596

SPACER-1.0X781X.94

$

$

Currently unavailable

31

Troy-Bilt 1749590

PIVOT-PIN

$

$

Currently unavailable

32

MTD 1717624

ELBOW-90 DEG

$

$

Not available

33

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

34

Troy-Bilt 1749825

SPACER-1.0X.781X.61

$

$

Currently unavailable

35

Troy-Bilt 1185266

SEAL-OIL
(Superseded to 921-0175)

$9.99

$

In Stock, Qty 20+

0

36

MTD 1186019

RING-BACK/UP

$

$

Not available

37

MTD 1177395

RING-O .984 ID

$

$

Not available

38

Troy-Bilt 1177509

RING-O .424 ID

$

$

Currently unavailable

39

MTD 1186018

RING-BACK/UP

$

$

Not available

40

MTD 1724512

ROD-PISTON HYDRAULIC

$

$

Not available

41

Troy-Bilt 1724516

TUBE-CYLINDER HYDRAULIC

$

$

Currently unavailable

42

MTD 1724511

HEAD-CYLINDER

$

$

Not available

43

MTD 1724515

PISTON-HYDRAULIC

$

$

Not available

44

MTD 1110154

NUT-H/LK 5/8-18

$

$

Not available

45

Troy-Bilt 1118735

RING-RETAIN INT 2.210 DIA
(Superseded to 716-0188)

$

$

Not available

46

MTD 1186017

RING-O 1.6 ID

$

$

Not available

?47

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$

$

Not available
