14068-01 - Troy-Bilt 54" Snow Blade 54" SNOW BLADE Parts Diagram

54" Snow Blade

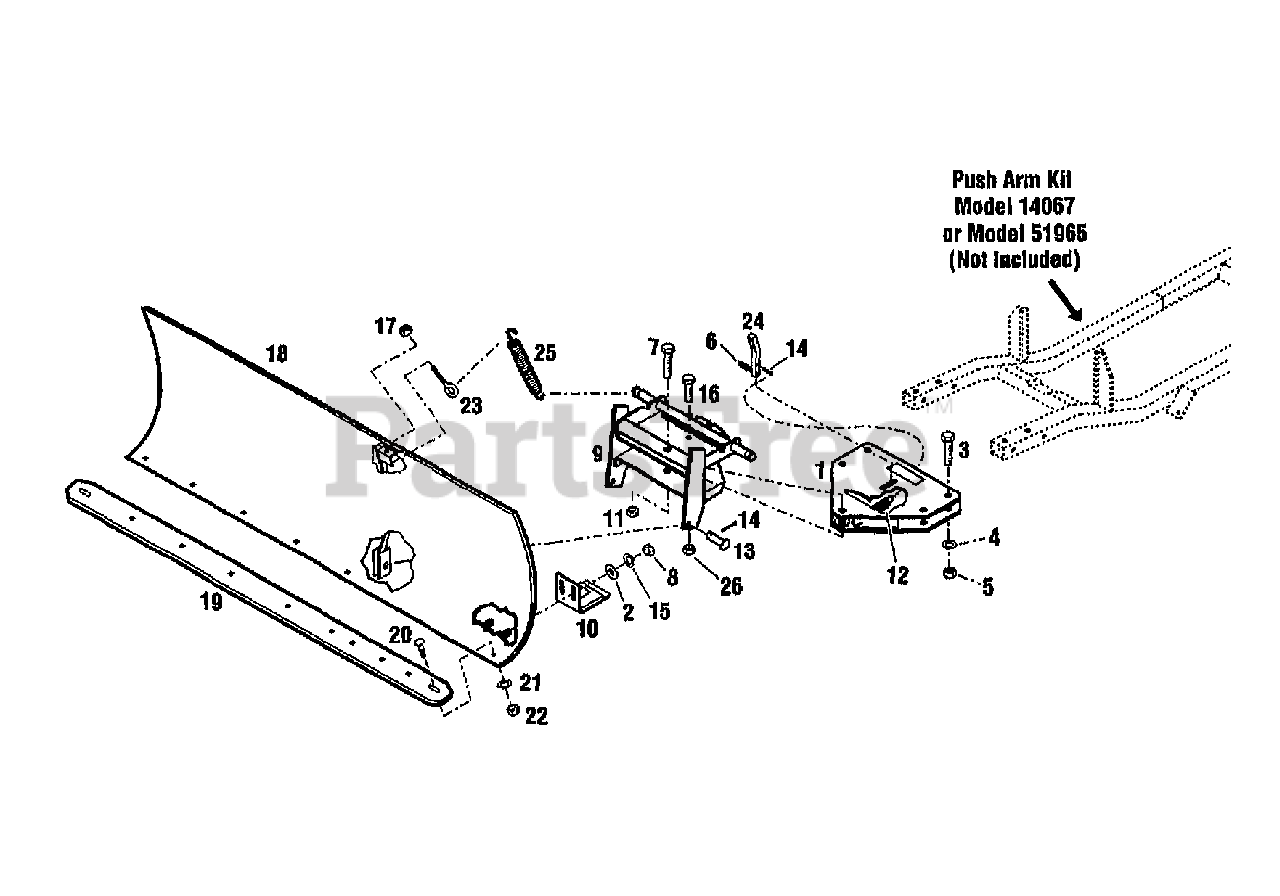

54" SNOW BLADE Parts Diagram

  • Title

1

Troy-Bilt 1731057001

ASSM-HITCH

$

$

Currently unavailable

2

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

3

MTD 1100056

SCR-HH 1/2-13X2.5 G5 ZP

$

$

Not available

4

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1704692

PIN-DRIVE .125X1.0

$

$

Not available

7

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

8

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1731053001

ASSM-PLATE

$

$

Currently unavailable

10

MTD 1715754001

SHOE-SKID

$

$

Not available

11

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

12

MTD 1700401

SPRING

$

$

Not available

13

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

14

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

15

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

16

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

17

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1719089001

BLADE-SNOW

$

$

Currently unavailable

19

Troy-Bilt 1719090001

BLADE-SCRAPER

$

$

Currently unavailable

20

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

21

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1713077

BOLT-EYE 5/16-18X2.75 ZP

$

$

Not available

24

MTD 1714830

PIN-LATCH

$

$

Not available

25

Troy-Bilt 1714844001

SPRING-EXT

$

$

Currently unavailable

26

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0
