14081 - Troy-Bilt 2-Bag Hopper Assembly (SN: 140810100101 - 140810199999) 2-BAG HOPPER ASSEMBLY Parts Diagram

2-Bag Hopper Assembly

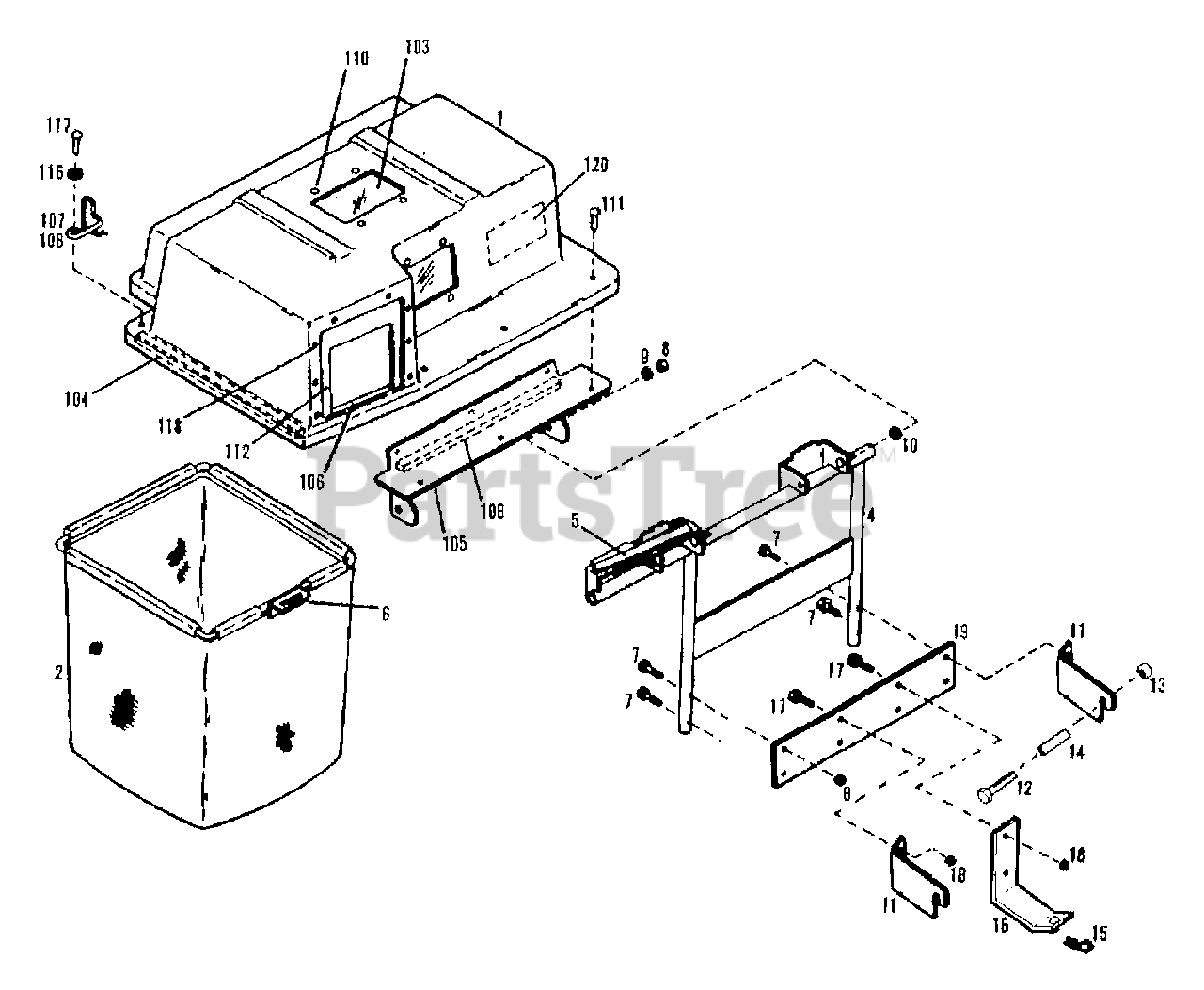

2-BAG HOPPER ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1755353

ASSM-CVR GRASS BAG

$

$

Currently unavailable

2

MTD 1756717

ASSM-GRASS BAG

$

$

Not available

4

MTD 1754979001

ASSM-BAG SUPPORT

$

$

Not available

5

Troy-Bilt 1755360

SEAL-COVER 9.5"

$

$

Currently unavailable

6

MTD 1752529001

ASSM-FRAME GRASSBAG

$

$

Not available

7

MTD 1111606

SCR-HH 5/16-18X2.00

$

$

Not available

8

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

10

MTD 1741195

WASHER-.87X.34X.06 NYLON

$

$

Not available

11

MTD 1766218001

PLATE-SIDE MOUNTING

$

$

Not available

12

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$7.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$4.49

$

In Stock, Qty 20+

0

14

MTD 1766328

SPACER-ATTACHMENT

$

$

Not available

15

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

16

MTD 1766219001

SUPPORT-MOUNTING

$

$

Not available

17

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$5.49

$

In Stock, Qty 7

0

18

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 19

0

19

MTD 1766217001

PLATE-SUPPORT

$

$

Not available

?101

MTD 1750148001

BRKT-ANGLE

$

$

Not available

?102

MTD 1751983

COVER-SEAL

$

$

Not available

103

MTD 1748349

WINDOW

$

$

Not available

104

MTD 1755359

SEAL-COVER

$

$

Not available

105

MTD 1755317001

ASSM-HINGE SUPPORT

$

$

Not available

106

MTD 1754982001

CHUTE REINFORCEMENT

$

$

Not available

107

MTD 1755307

COVER-LOCK RH

$

$

Not available

108

MTD 1755308

COVER-LOCK LH

$

$

Not available

?109

MTD 1755358

SEAL-COVER

$

$

Not available

110

Troy-Bilt 1748369

RIVET-POP

$

$

Currently unavailable

111

Troy-Bilt 1185878

RIVET-POP 3/16"DIA
(Superseded to 928-0123)

$5.49

$

Usually ships in 3-6 days

0

112

MTD 1755309

GASKET-CHUTE

$

$

Not available

?113

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.99

$

Usually ships in 3-6 days

0

?114

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

?115

MTD 1748346

SCREEN

$

$

Not available

116

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

117

MTD 1728772

RIVET-POP 3/16X1/2

$

$

Not available

118

Troy-Bilt 1186059

RIVET-POP .125

$

$

Currently unavailable

?119

Troy-Bilt 1737650

RIVET-POP
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

120

MTD 1748245

DECAL-INST

$

$

Not available

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$32.99

$

In Stock, only 1 left!

0
