141 - Husqvarna Chainsaw (1998-09) Chain Brake Assembly Parts Diagram

Chainsaw

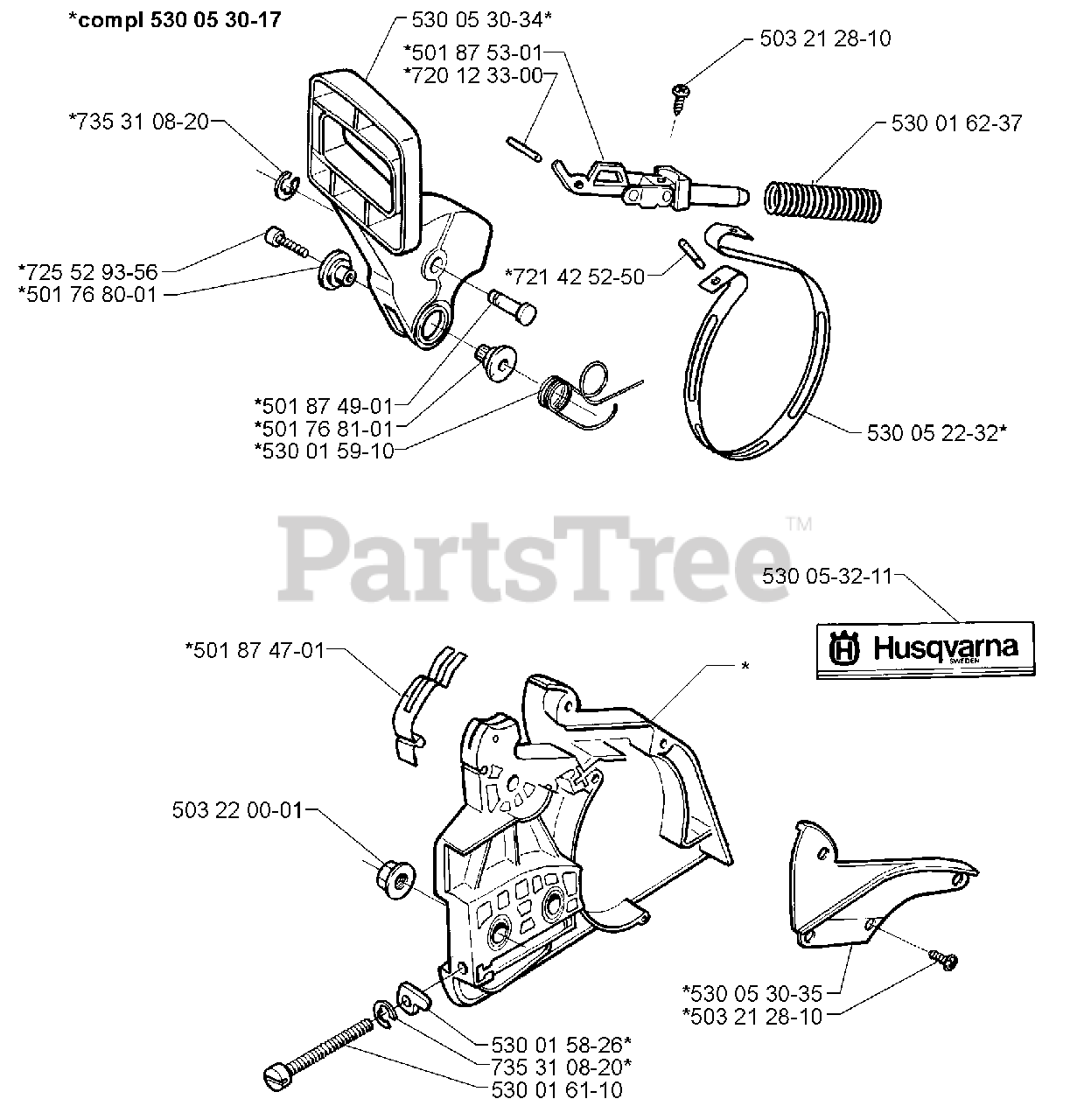

Chain Brake Assembly Parts Diagram

  • Title

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

In Stock, only 2 left!

0

501874701

Husqvarna 501874701

SPRING

$3.49

$

In Stock, Qty 8

0

530053211

Husqvarna 530053211

Decal

Note: (New Part)

$

$

Not available

501768101

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

530015910

Husqvarna 530015910

SPRING,BRK HDL 36/41

$5.99

$

In Stock, only 2 left!

0

530053017

Husqvarna 530053017

CHAIN BRAKE ASSY
(Superseded to 530054802)

Note: (New Part)

$

$

Not available

735310820

Husqvarna 735310820

E-RING 4

$3.49

$

In Stock, only 4 left!

0

725529356

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 1 left!

0

501768001

Husqvarna 501768001

PIVOT SLEEVE R

$5.99

$

In Stock, only 2 left!

0

530053034

Husqvarna 530053034

HANDGUARD
(Superseded to 530071348)

Note: (New Part)

$

$

Not available

501875301

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 2 left!

0

720123300

Husqvarna 720123300

PIN 3X10

$2.49

$

In Stock, only 1 left!

0

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

503212810

Husqvarna 503212810

SCREW

$3.49

$

In Stock, only 3 left!

0

530016237

Husqvarna 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

Note: (New Part)

$

$

Not available

530052232

Husqvarna 530052232

BRAKE BAND
(Superseded to 545137401)

Note: (New Part)

$6.99

$

In Stock, only 1 left!

0

530053035

Husqvarna 530053035

CHAIN BRAKE COVER

Note: (New Part)

$3.49

$

In Stock, only 2 left!

0

503212810

Husqvarna 503212810

SCREW

$3.49

$

In Stock, only 3 left!

0

530015826

Husqvarna 530015826

ADJUST PIN,BAR 36/41

$5.99

$

In Stock, Qty 5

0

735310820

Husqvarna 735310820

E-RING 4

$3.49

$

In Stock, only 4 left!

0

530016110

Husqvarna 530016110

BAR ADJUSTING SCREW

$3.49

$

In Stock, Qty 10

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.49

$

In Stock, Qty 20+

0
