141 - Husqvarna Chainsaw (2001-05) Chain Brake Parts Diagram

Chainsaw

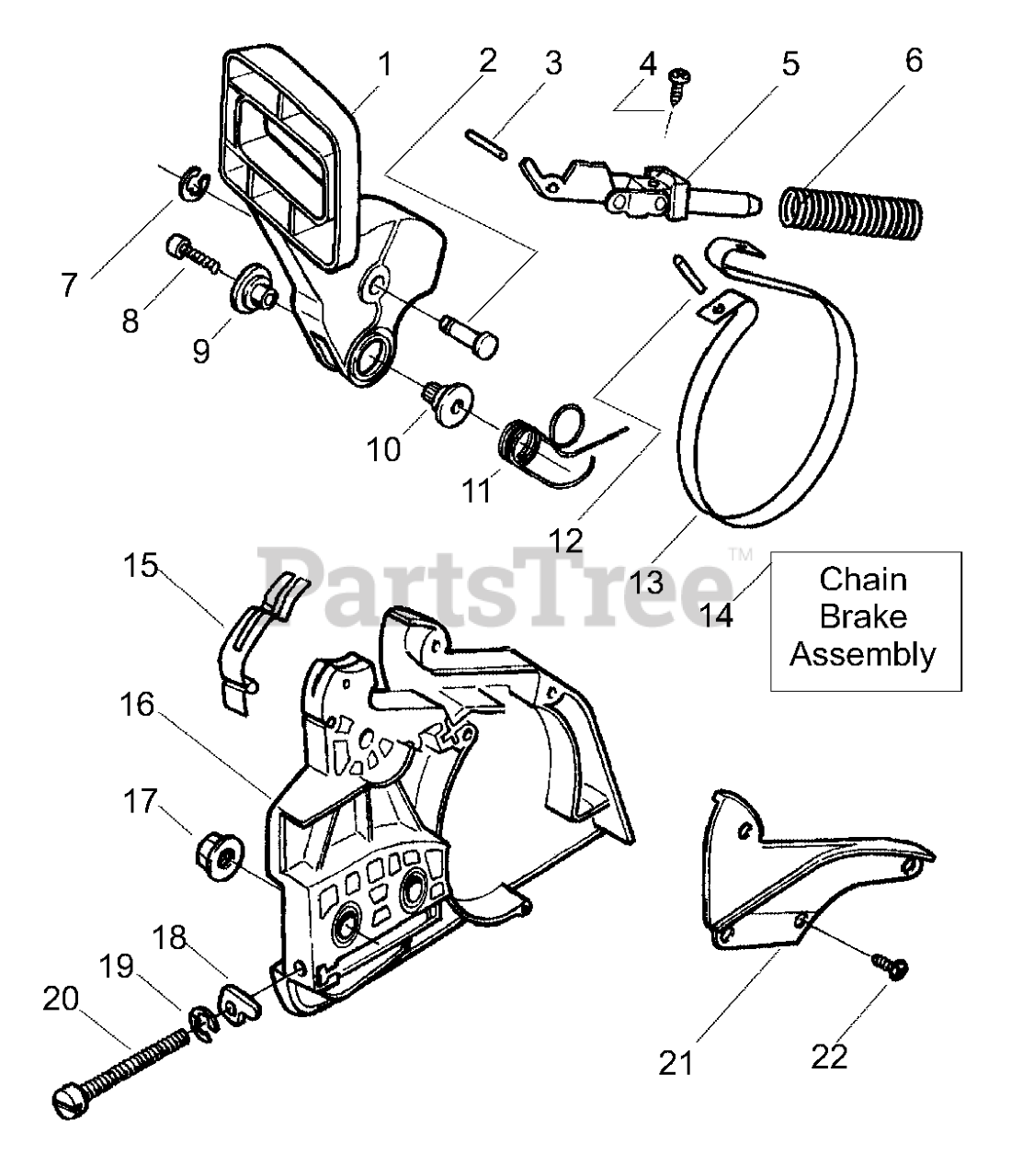

Chain Brake Parts Diagram

  • Title

1

Husqvarna 530071348

HANDGUARD

$

$

Not available

2

Husqvarna 530029879

PIVOT PIN

$

$

Not available

3

Husqvarna 720123300

PIN 3X10

$2.49

$

In Stock, Qty 9

0

4

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 530054741

FRONT LINK ASSY

$

$

Not available

6

Husqvarna 501875401

SPRING

$

$

Not available

7

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 12

0

8

Husqvarna 530015914

SCREW

$3.49

$

In Stock, Qty 7

0

9

Husqvarna 501768001

PIVOT SLEEVE R

$5.99

$

In Stock, Qty 9

0

10

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

11

Husqvarna 530015910

SPRING,BRK HDL 36/41

$5.99

$

In Stock, Qty 12

0

12

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, Qty 16

0

13

Husqvarna 530052232

BRAKE BAND
(Superseded to 545137401)

$6.99

$

In Stock, only 1 left!

0

14

Husqvarna 530054802

CHAIN BRAKE ASM.

$

$

Not available

15

Husqvarna 530029878

SPRING-POSITION

$5.99

$

In Stock, Qty 6

0

16

Husqvarna 530049483

CLUTCH COVER

$

$

Not available

17

Husqvarna 530015917

BAR NUT

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 530015826

ADJUST PIN,BAR 36/41

$5.99

$

In Stock, Qty 17

0

19

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 12

0

20

Husqvarna 530016110

BAR ADJUSTING SCREW

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 530053035

CHAIN BRAKE COVER

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 20+

0
