141 - Husqvarna Chainsaw (2003-01) Chain Brake Parts Diagram

Chainsaw

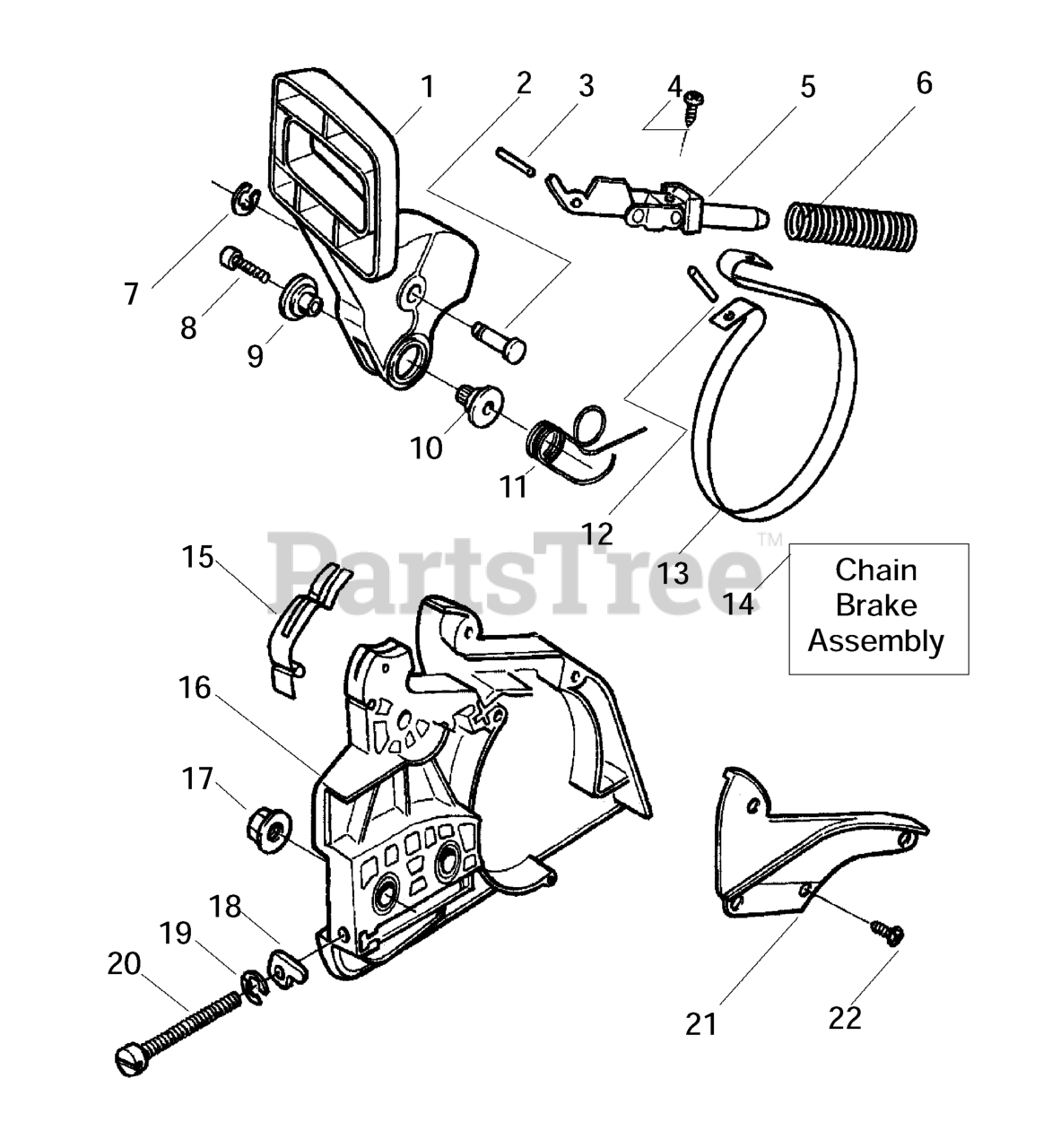

Chain Brake Parts Diagram

  • Title

1

Husqvarna 530071348

HANDGUARD

$

$

Not available

2

Husqvarna 530029879

PIVOT PIN

$

$

Not available

3

Husqvarna 530015915

PIN

$

$

Not available

4

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 530054741

FRONT LINK ASSY

$

$

Not available

6

Husqvarna 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

$

$

Not available

7

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 12

0

8

Husqvarna 530016384

SCREW

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 530056531

JOURNAL, RIGHT

$

$

Not available

10

Husqvarna 530029881

SHAFT PIVOT

$

$

Not available

11

Husqvarna 530015910

SPRING,BRK HDL 36/41

$5.99

$

In Stock, Qty 12

0

12

Husqvarna 530015913

PIN

$3.49

$

In Stock, Qty 12

0

13

Husqvarna 530052232

BRAKE BAND
(Superseded to 545137401)

$6.99

$

In Stock, only 1 left!

0

14

Husqvarna 530054802

CHAIN BRAKE ASM.

$

$

Not available

15

Husqvarna 530029878

SPRING-POSITION

$5.99

$

In Stock, Qty 6

0

16

Husqvarna 530049483

CLUTCH COVER

$

$

Not available

17

Husqvarna 530015917

BAR NUT

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 530015826

ADJUST PIN,BAR 36/41

$5.99

$

In Stock, Qty 17

0

19

Husqvarna 530038593

RETAINER

$3.49

$

In Stock, Qty 12

0

20

Husqvarna 530016110

BAR ADJUSTING SCREW

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 530053035

CHAIN BRAKE COVER

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

Operator Manual

$

$

Not available

Husqvarna 530088322

U.S./Canada

Note: Not Shown

$

$

Not available

Husqvarna 530088185

MANUAL, OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530088186

European

Note: Not Shown

$

$

Not available

Husqvarna 530088541

MANUAL-OPERATORS

Note: Not Shown

$

$

Not available

Husqvarna 530088184

Scan.

Note: Not Shown

$

$

Currently unavailable

Husqvarna 530086223

Japan

Note: Not Shown

$

$

Not available

Husqvarna 530031135

SCRENCH
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, Qty 19

0

Husqvarna 530031136

PULLER WORM GEAR

Note: Not Shown

$

$

Not available

Husqvarna 530031112

CLUTCH TOOL

Note: Not Shown

$20.99

$

In Stock, only 2 left!

0

Husqvarna 530047941

KICKBACK WARNING DECAL

Note: Not Shown

$

$

Not available

Husqvarna 530037912

Scabbard
(Superseded to 596703701)

Note: Not Shown

$9.49

$

In Stock, only 1 left!

0
