14101 - Troy-Bilt 54" Snow Blade 54" Snow Blade Parts Diagram

54" Snow Blade

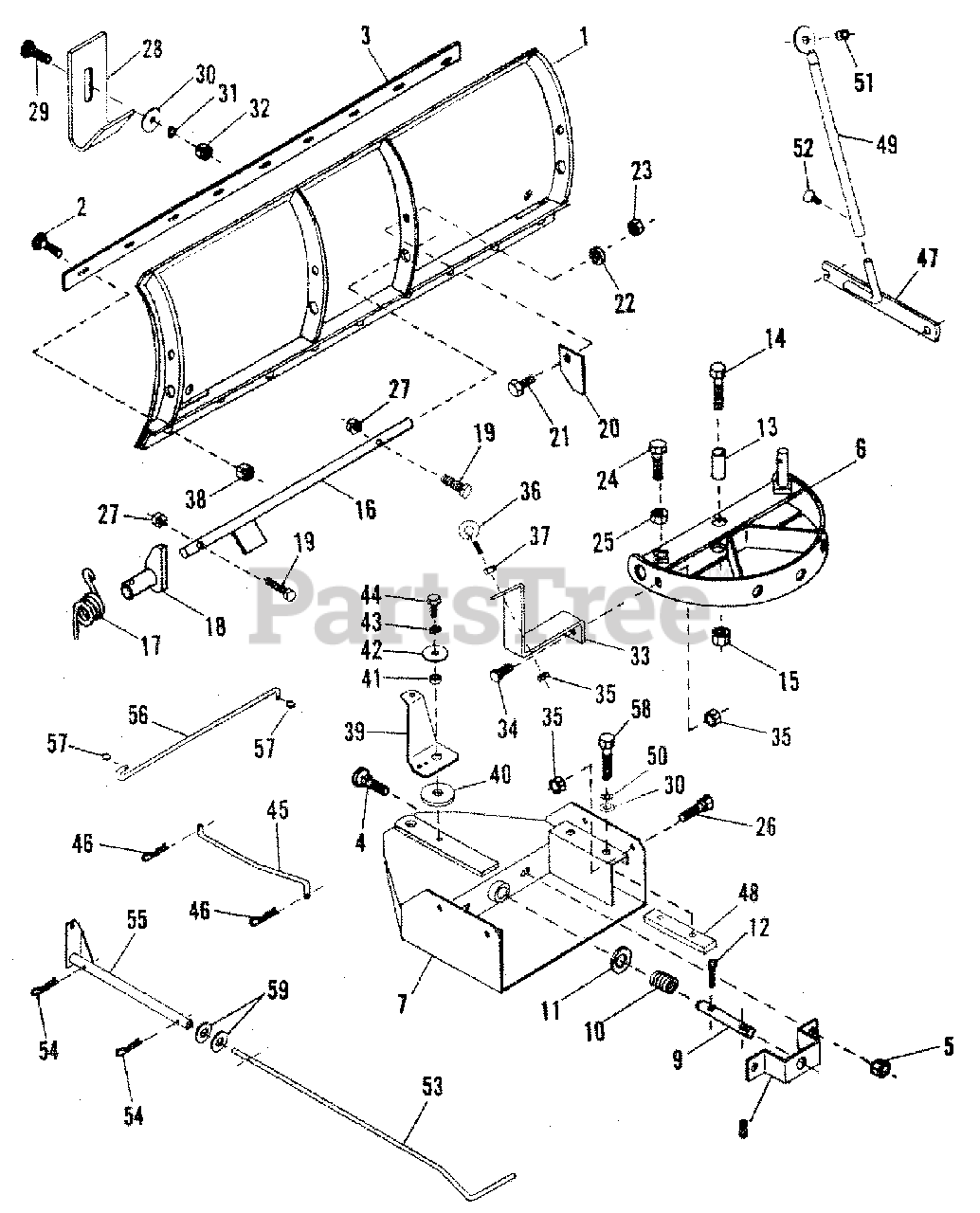

54" Snow Blade Parts Diagram

  • Title

1

Troy-Bilt 1773353

Blade Assembly -54"

$

$

Currently unavailable

2

Troy-Bilt 1186100

Bolt - 5/16-18 x 1" Carriage

$

$

Not available

3

Troy-Bilt 1773355

Scraper Blade - 54"
(Superseded to HA-19385-0637)

$

$

Not available

4

Troy-Bilt 1186098

Bolt - 5/16-18 x 3/4 Carriage

$

$

Not available

5

Troy-Bilt 1732499

Nut - 5/16-18 Hex Lock
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1773356

Pivot Quadrant Assembly

$

$

Currently unavailable

7

Troy-Bilt 1773357

Pivot Bracket Assembly

$

$

Currently unavailable

8

MTD 1773358

Lock Pin Bracket

$

$

Not available

9

MTD 1773359

Lock Pin

$

$

Not available

10

MTD 1773360

Spring

$

$

Not available

11

Troy-Bilt 1107386

Flat Washer - 21/32 x 1-5/16 x .095
(Superseded to 736-0237)

$3.99

$

In Stock, Qty 20+

0

12

MTD 1100351

Cotter Pin 1/8 x 1-1/4

$

$

Not available

13

Troy-Bilt 1773375

Spacer

$

$

Currently unavailable

14

Troy-Bilt 1100066

Bolt - 1/2-13 x 3-1/2 Hex Head
(Superseded to GW-9548)

$13.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1734514

Nut - 1/2-13 Hex Lock
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

16

MTD 1773361

Breakover Pin Assembly

$

$

Not available

17

Troy-Bilt 1773362

Torsion Spring

$

$

Currently unavailable

18

MTD 1773363

Spring Anchor Assembly

$

$

Not available

19

Troy-Bilt 1100811

Bolt - 1/4-20 x 1-1/2 Hex Head
(Superseded to 710-0606)

$4.99

$

In Stock, Qty 15

0

20

MTD 1773364

Blade Stop Strap

$

$

Not available

21

MTD 1773365

Bolt - 5/8-11 x 1-1/4 Hex Head

$

$

Not available

22

MTD 1100247

Lock Washer - 5/8 Med

$

$

Not available

23

Troy-Bilt 1108891

Nut - 5/8-11 Hex Jam
(Superseded to 912-3015)

$4.49

$

In Stock, Qty 15

0

24

Troy-Bilt 1100064

Bolt - 1/2-13 x 1-1/2 Hex Head
(Superseded to 710-3181)

$6.49

$

In Stock, only 1 left!

0

25

Troy-Bilt 1186261

Nut - 1/2-13 Hex Jam
(Superseded to 912-3048)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 1100049

Bolt - 3/8-16 x 2-1/4 Hex Head
(Superseded to 710-3011)

$6.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 1734398

Nut - 1/4-20 Hex Lock
(Superseded to 912-0291)

$

$

Not available

28

MTD 1773366

Skid Shoe

$

$

Not available

29

Troy-Bilt 1186180

Bolt - 1/2-13 x 1" Carriage

$

$

Currently unavailable

30

Troy-Bilt 1107385

Flat Washer- 17/32 x 1-1/16 x .095
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 1100245

Lock Washer - 1/2 Med
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 1186233

Nut - 1/2-13 Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

33

MTD 1773367

Pivot Control Bracket

$

$

Not available

34

Troy-Bilt 1100043

Bolt - 3/8-18 x 1-1/4 Hex Head
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 1733398

Nut - 3/8-16 Hex Lock
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

36

MTD 1773368

Eye Bolt

$

$

Not available

37

Troy-Bilt 1186231

Nut -3/8-16 Hex
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 1186391

Nut - 5/16-18 Hex Serrated Flange
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

39

MTD 1773369

Pivot Release Bracket

$

$

Not available

40

Troy-Bilt 1743945

Flat Washer - 17/32 x 2" x .134

$

$

Currently unavailable

41

MTD 1773370

Spacer

$

$

Not available

42

Troy-Bilt 1805077

Flat Washer - 13/32 x 1-1/2 x .065

$

$

Currently unavailable

43

Troy-Bilt 1100243

Lock Washer - 3/8 Med
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 1100086

Bolt - 3/8-16 x 3/4 Hex Head
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

45

MTD 1773371

Lock Pin Release Rod

$

$

Not available

46

Troy-Bilt 1717897

Hitch Pin

$3.49

$

Usually ships in 3-6 days

0

47

MTD 1773335

Control Rod Support Anchor Assembly

$

$

Not available

48

MTD 1773395

Tapped Strap

$

$

Not available

49

Troy-Bilt 1773331

Control Rod Support Assembly

$

$

Currently unavailable

50

Troy-Bilt 1773396

Lock Washer - 1/2" Internal Tooth
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

51

MTD 1773332

Control Rod Guide Bushing

$

$

Not available

52

MTD 1773334

Thumb Screw

$

$

Not available

53

MTD 1773372

Control Rod

$

$

Not available

54

MTD 1723478

Hitch Pin

$

$

Not available

55

MTD 1773373

Pivot Control Arm Assembly

$

$

Not available

56

MTD 1773374

Pivot Release Rod

$

$

Not available

57

Troy-Bilt 1751908

Spring Clip

$5.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 1100075

Bolt - 12-13 x 2-1/4 Hex Head
(Superseded to 710-3104)

$7.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 1185023

Flat Washer - 19/32 x 1-3/16 x .095

$

$

Currently unavailable
