14111 - Troy-Bilt Electric Lift Kit ELECTRIC LIFT KIT Parts Diagram

Electric Lift Kit

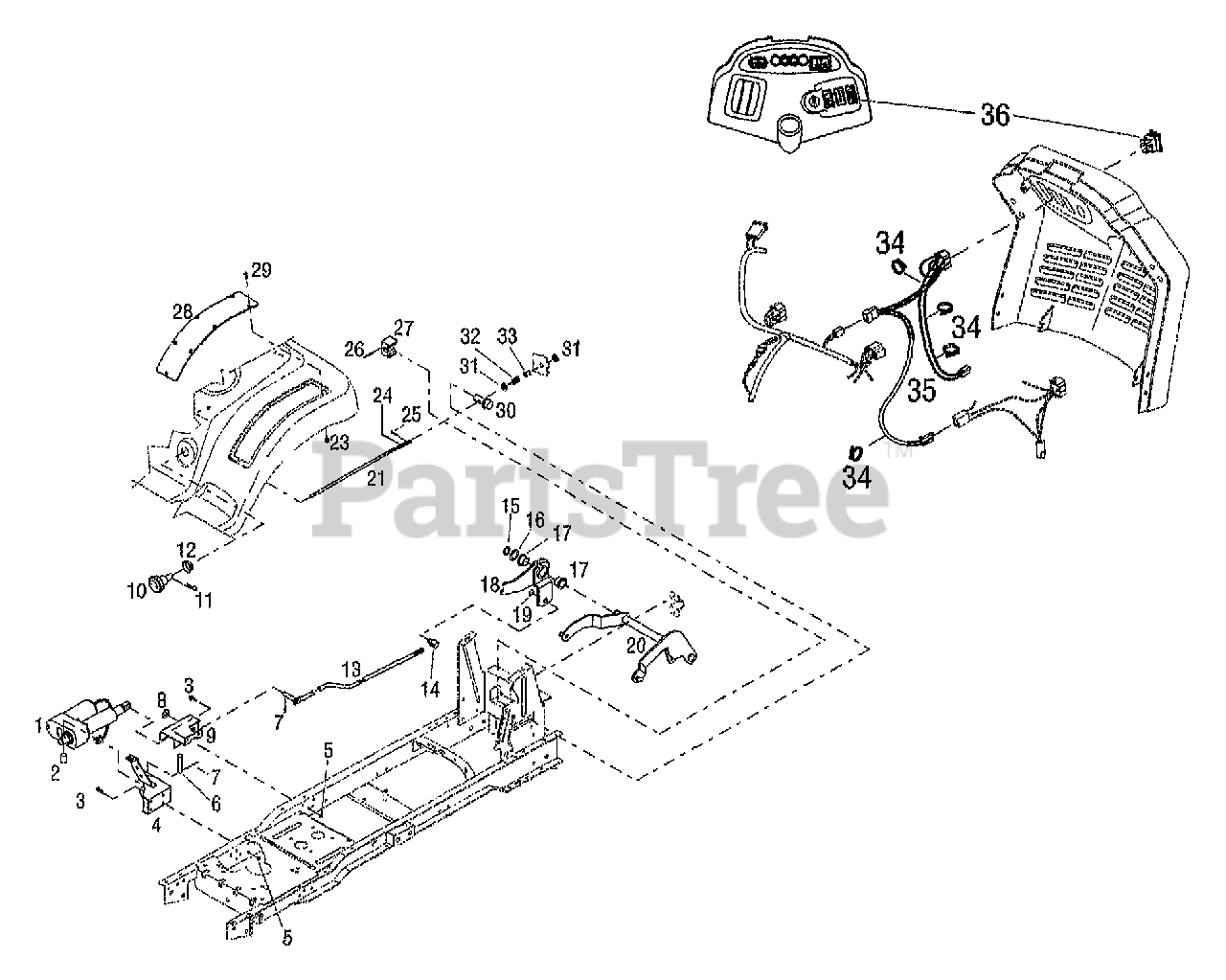

ELECTRIC LIFT KIT Parts Diagram

  • Title

1

Troy-Bilt 1771678

ACTUATOR

$

$

Currently unavailable

2

Troy-Bilt 1771694

SPACER

$

$

Currently unavailable

3

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

4

MTD 1770688001

SUPPORT-FRONT

$

$

Not available

5

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

6

MTD 1706621

PIN-CLEVIS .5X2.75

$

$

Not available

7

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1771799001

SUPPORT-REAR

$

$

Currently unavailable

10

MTD 1765485

KNOB-HEIGHT ADJUST

$

$

Not available

11

MTD 1817091

PIN-HITCH

$

$

Not available

12

MTD 1766346

GROMMET-SNAP BUSHING

$

$

Not available

13

Troy-Bilt 1772978

ROD-LIFT

$

$

Currently unavailable

14

Troy-Bilt 1770696

BLOCK-PIVOT

$

$

Currently unavailable

15

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

16

Troy-Bilt 1185816

WASHER-SPEC

$3.49

$

Usually ships in 3-6 days

0

17

0

N/A

$

$

Not available

18

Troy-Bilt 1773025

ASSM-PIVOT ARM

$

$

Currently unavailable

19

Troy-Bilt 1777567

RETAINING E-RING

$

$

Currently unavailable

20

Troy-Bilt 1772970001

ASSM-LIFT

$

$

Currently unavailable

21

MTD 1773133

SCR-HEIGHT ADJUST

$

$

Not available

23

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

25

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

26

MTD 1185376

PIN-DRIVE

$

$

Not available

27

MTD 1766259

COLLAR-HEIGHT ADJUST

$

$

Not available

28

Troy-Bilt 1773064

COVER

$

$

Currently unavailable

29

Troy-Bilt 1772882

SCR-MACH .25-20X.62
(Superseded to 710-0946)

$3.49

$

Usually ships in 3-6 days

0

30

MTD 1766257

BLOCK-HEIGHT ADJUST

$

$

Not available

31

Troy-Bilt 1738490

SPACER

$

$

Not available

32

MTD 1721492

SPRING-COMPRESSION

$

$

Not available

33

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

35

Troy-Bilt 1771681

HARNESS-ACTUATOR

$

$

Currently unavailable

36

MTD 1771668

SWITCH-ROCKER

$

$

Not available
