14115 - Troy-Bilt 38" Mulching Mower Deck 38" MULCHING MOWER DECK Parts Diagram

38" Mulching Mower Deck

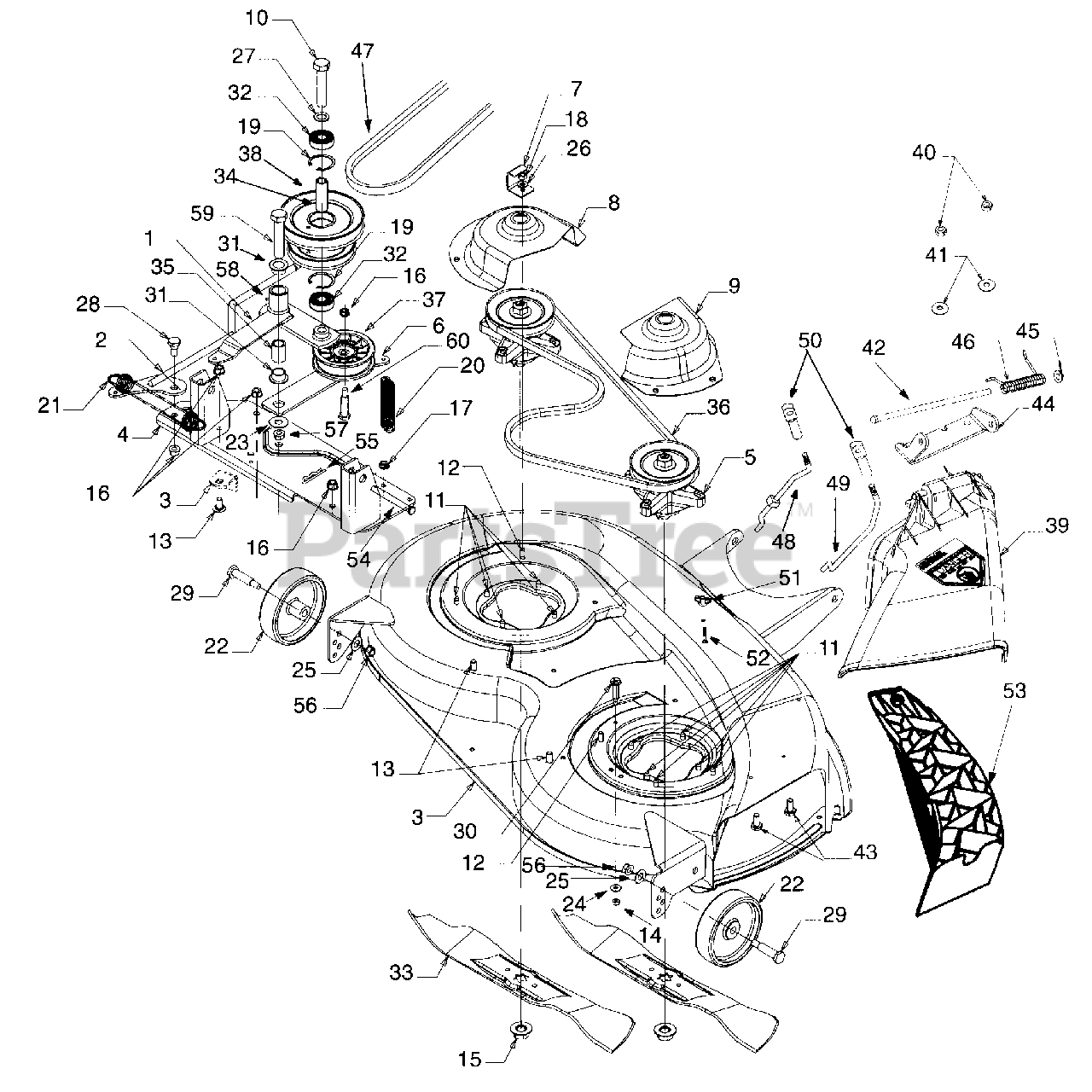

38" MULCHING MOWER DECK Parts Diagram

  • Title

1

Troy-Bilt 603-0172

Idler Assembly
(Superseded to 903-0857)

Variations

Troy-Bilt 603-0172-0716

Idler Arm Assembly - CUB YELLOW-99 (0716)

$122.99

$

In Stock, only 1 left!

0

$122.99

$

In Stock, only 1 left!

0

2

MTD 603-0199

Handle Assembly

Variations

Troy-Bilt 603-0199-0498

TENSION HANDLE - OLD CUB YELLOW (0498)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-0199-0637

TENSION HANDLE - POWDER BLACK (0637)

$

$

Not available

$50.99

$

Usually ships in 3-6 days

0

3

MTD 603-0635

Deck Assembly - 38"

Variations

Troy-Bilt 603-0635-0498

38" DECK SHELL (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 603-0635-0637

38" DECK SHELL (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Troy-Bilt 603-0636

Rear Lift Assembly
(Superseded to 603-0636-0637)

Variations

Troy-Bilt 603-0636-0498

DECK LIFT ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 603-0636-0637

LIFT ASSY-DECK REA - POWDER BLACK (0637)

$

$

Not available

$

$

5

Troy-Bilt 618-3167

Spindle Assembly
(Superseded to 918-3167)

$179.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-2463

Idler Bracket
(Superseded to 703-2463-0637)

Variations

Troy-Bilt 703-2463-0637

Idler Arm - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-2559

Stop Bracket

Variations

Troy-Bilt 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-2945

Pulley Shield, Left Side

Variations

Troy-Bilt 703-2945-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-2945-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-2945-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 703-2945-0648

COVER-BELT LH - TECH GRAY (0648)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 703-3237

Pulley Shield, Right Side

Variations

Troy-Bilt 703-3237-0498

Belt Cover, RH - OLD CUB YELLOW (0498)

$61.99

$

In Stock, only 2 left!

0

Troy-Bilt 703-3237-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$61.99

$

In Stock, only 2 left!

0

Troy-Bilt 703-3237-0637

COVER-BELT RH - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3237-4021

Belt Cover, RH - CUB YELLOW 2 (4021)

$61.99

$

In Stock, only 2 left!

0

$57.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0923

Hex Hd. Cap Scr. 5/8-18:3.00 Lg.

$9.49

$

In Stock, Qty 13

0

11

Troy-Bilt 710-1260

Hx Ind Wsh Scr. TT 5/16-18:.750 Lg.
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3008

Hex Hd. Cap Scr. 5/16-18:.750 Lg.

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3178

Carr. Bolt 3/8-16 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 712-0417A

Flanged Hex Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-3004A

Hex Flanged Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-3010

Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 716-3020

Internal Snap Ring
(Superseded to 916-3020)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 732-0262

Extension Spring
(Superseded to 932-0262)

$20.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-3115

Extension Spring

$28.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0100

Fl. Washer .531 I.D. x 1.25 O.D. x .036

$6.49

$

In Stock, Qty 10

0

24

Troy-Bilt 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 12

0

25

Troy-Bilt 736-0105

Bell Washer .041 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0275

Fl. Washer 5/16

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 736-0290

Fl. Washer 5/8 I.D. x 1.0 x .063

$6.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 738-0143

Shoulder Scr. 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 738-0373

Shoulder Scr.
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-0572

Shoulder Scr. .374 Dia. x 1.160 Lg.

$7.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 741-0338

Flange Brg. 3/4 I.D. x .52 Lg.

$8.49

$

In Stock, only 3 left!

0

32

Troy-Bilt 741-0524

Bearing .625 I.D. x .574 O.D. x .470
(Superseded to 941-0524A)

$21.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 742-0610

Blade 19.38 Lg. Star
(Superseded to 942-0610A)

$26.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 750-0656

Spacer .50 O.D. x .75 I.D. x 2.25

$11.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 750-3132

Spacer .88 O.D. x .635 I.D. x 1.25
(Superseded to 950-3132)

$8.99

$

In Stock, Qty 19

0

36

Troy-Bilt 754-3096

V-Belt
(Superseded to 954-3096)

$46.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 756-0627

Flat Idler Pulley 3.5 O.D.
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 756-3070

Double Pulley
(Superseded to 756-3113)

$131.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 731-1032

Chute Deflector - Complete
(Superseded to 631-05229)

Note: (Incl. Ref. Nos. 42, 44, 45, & 46)

$77.99

$

In Stock, Qty 17

0

40

Troy-Bilt 712-3006

Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 12

0

42

Troy-Bilt 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 710-0751

Hex Hd. Cap Scr. 1/4-20:.625

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 703-1693

Hinge Mounting Bracket
(Superseded to 703-1693A)

$21.99

$

In Stock, only 4 left!

0

45

Troy-Bilt 726-0106

Cap Speed Nut - 1/4 Rod

$3.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 732-0602

Torsion Spring
(Superseded to 732-0602A)

$11.99

$

In Stock, Qty 5

0

47

Troy-Bilt 754-3095

V-Belt
(Superseded to 954-3095)

$70.99

$

Usually ships in 3-6 days

0

48

MTD 1766052

Front Lift Rod (LH)

$

$

Not available

49

MTD 1766051

Front Lift Rod (RH)

$

$

Not available

50

Troy-Bilt 1752554

Rod End

$64.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 710-0597

Hex Bolt 1/4-20 x 1"

$3.99

$

In Stock, Qty 19

0

53

Troy-Bilt 731-1643A

Mulching Plug
(Superseded to OEM-190-116)

$101.99

$

In Stock, only 3 left!

0

54

MTD 1719367

Clevis Pin

$

$

Not available

55

MTD 1723478

Cotter Pin

$

$

Not available

56

Troy-Bilt 712-0181

Jam Nut 3/8-16

$3.99

$

In Stock, Qty 5

0

57

Troy-Bilt 712-0239

Nut 1/2-20

$5.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 710-1010

Hex Head Cap Screw 1/2-20:3

$

$

Not available

60

Troy-Bilt 710-0520

Hex Head Cap Screw 3/8-16:1.5

$4.49

$

In Stock, Qty 20+

0
