14116 - Troy-Bilt Twin Rear Bagger

Twin Rear Bagger

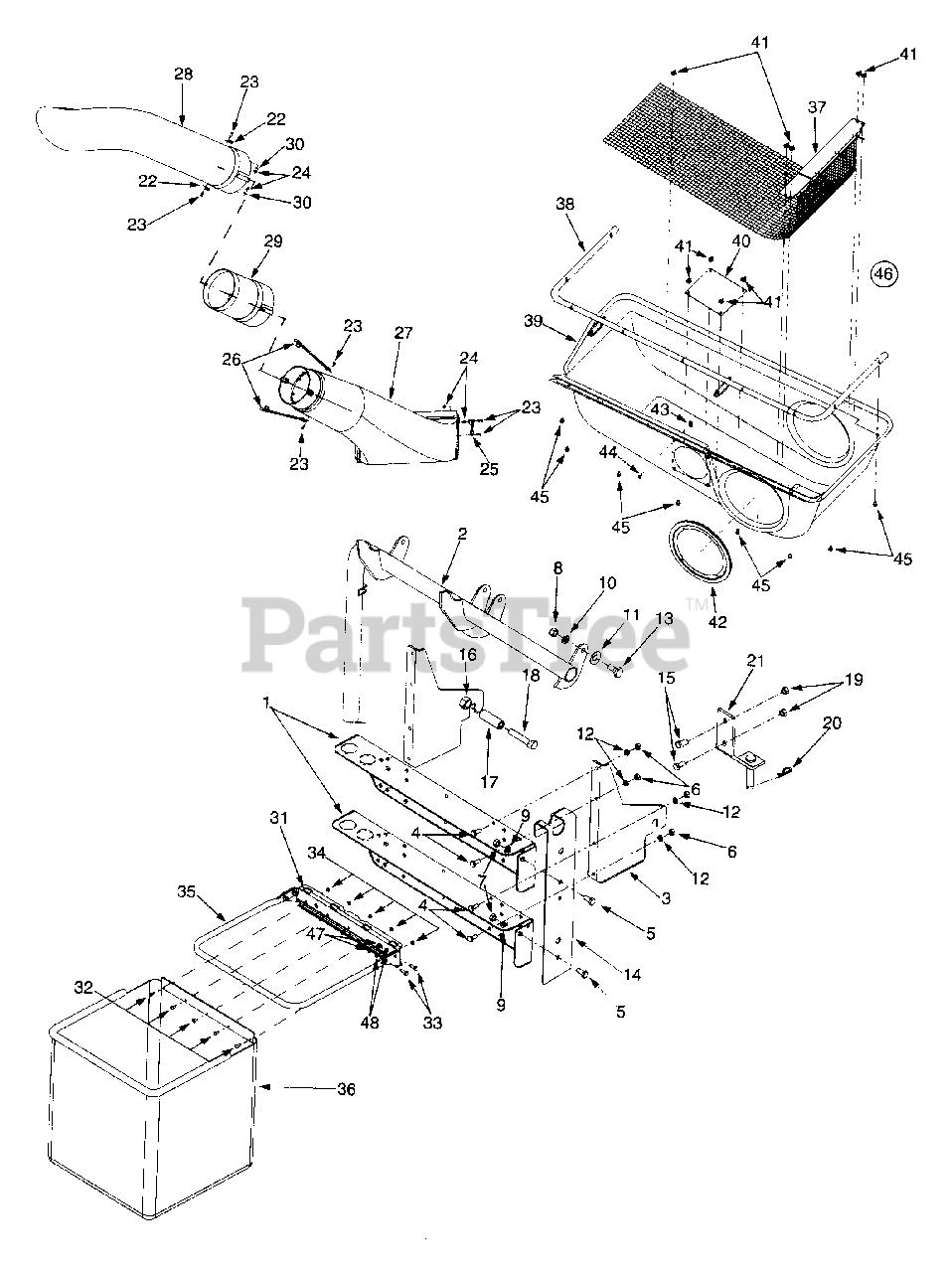

14116 - Troy-Bilt Twin Rear Bagger > Parts Diagrams (1) > General Assembly

  • Title
16587C

1

Bagger Support Bracket

Part# 16587C

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Mounting Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $53.68

16592

2

Catcher Support Tube Assembly

Part# 16592

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

Support Tube Assembly, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $126.98

703-3317

3

Bagger Bracket

Part# 703-3317

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BAGGER BRACKET

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Not available

710-0751

4

Hex Bolt, 1/4-20 x 62"

Part# 710-0751

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.66

710-3008

5

Hex Bolt, 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-3006

6

Hex Nut, 1/4-20

Part# 712-3006

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-3010

7

Hex Nut, 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

712-3017

8

Hex Nut, 3/8-16

Part# 712-3017 (Superseded to 912-3017)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0119

9

Lock Washer, 5/16 I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0169

10

Lock Washer, 3/8 I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.47

736-0255

11

Bell Washer, .51 I.D x 1.14 O.D. x .04

Part# 736-0255 (Superseded to 936-0255)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0329

12

Lock Washer, 1/4 I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.89

738-0380

13

Shoulder Screw, 3/8-16 x .5"

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.39

783-0601

14

Catcher Support Bracket

Part# 783-0601

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $24.05

1186331

15

Flange Screw, 5/16-18 x 1"

Part# 1186331 (Superseded to 710-04048)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.10

1734514

16

Locknut, 1/2-13

Part# 1734514 (Superseded to 712-3022)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.65

1766328

17

Spacer

Part# 1766328

OEM Warranty Repair Part for MTD

Not available

1100064

18

Cap Screw, 1/2-13 x 1.5"

Part# 1100064 (Superseded to 710-3181)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

1186391

19

Flange Nut, 5/16-18

Part# 1186391 (Superseded to 712-04054)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.94

1723478

20

Spring Cotter Pin

Part# 1723478

OEM Warranty Repair Part for MTD

Not available

1766219

21

Hitch Bracket

Part# 1766219

OEM Warranty Repair Part for Troy-Bilt

Currently unavailable

16606

22

Retainer Hook Bracket

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $4.92

710-0751

23

Hex Bolt, 1/4-20 x .62"

Part# 710-0751

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.66

712-0324

24

Hex Lock Nut, 1/4 -20

Part# 712-0324

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.48

723-0328

25

Retainer Strap Assembly

Part# 723-0328

OEM Warranty Repair Part for Troy-Bilt

Currently unavailable

723-0476

26

Chute Strap

Part# 723-0476

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $22.66

731-0827A

27

Discharge Chute

Part# 731-0827A (Superseded to 731-0827D)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $97.98

731-0899A

28

Grass Catcher Tube

Part# 731-0899A (Superseded to 731-0899E)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $81.47

731-3272

29

Catcher Extension Tube

Part# 731-3272 (Superseded to 731-3272B)

OEM Warranty Repair Part for Troy-Bilt

Not available

736-0175

30

Spring Washer, .265 x .562 x .025

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.58

16591A

31

Bag Frame Hanger Bracket

Part# 16591A

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

Bag Hanger Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $42.66

710-0473

32

Truss Mach. Screw, #10-24 x .5"

Part# 710-0473

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.85

710-0281

33

Tap Screw, 1/4-28 x .875"

Part# 710-0281

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.98

712-0272

34

Hex Sems Nut, 10-24

Part# 712-0272

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.63

749-0701A

35

Catcher Bag Frame

Part# 749-0701A

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

Grass Catcher Bag Frame

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.44

764-0221

36

Grass Bag

Part# 764-0221 (Superseded to 964-0221)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $50.08

16847A

37

Screen Assembly

Part# 16847A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

SCREEN ASSEMBLY

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Not available

16596

38

Hinge Bracket Assembly

Part# 16596

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

BRACKET ASSY-HINGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $77.52

731-0821A

39

Grass Catcher Cover

Part# 731-0821A

OEM Warranty Repair Part for MTD

Not available

731-0824A

40

Plastic Plate, 1/8 x 5.6" sq.

Part# 731-0824A

OEM Warranty Repair Part for MTD

Not available

726-0258

41

Zip Twist Fastener

Part# 726-0258

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.74

723-0412

42

Tube Seal

Part# 723-0412

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $24.97

712-0147

43

U-Type Speed Nut, #10-24

Part# 712-0147

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

710-0351

44

Truss B-Tap Screw, #10 x .5"

Part# 710-0351

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0599

45

Hex Screw, 1/4-20 x .5"

Part# 710-0599

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.83

16594A

46

Grass Catcher Cover Assembly

Part# 16594A

OEM Warranty Repair Part for MTD

Not available

712-0138

47

Hex Nut, 1/4-28

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

736-0329

48

Lock Washer, 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.89
