1415-0 - Generac 10,000 Watt AC Portable Generator Control Panel Parts Diagram

10,000 Watt AC Portable Generator

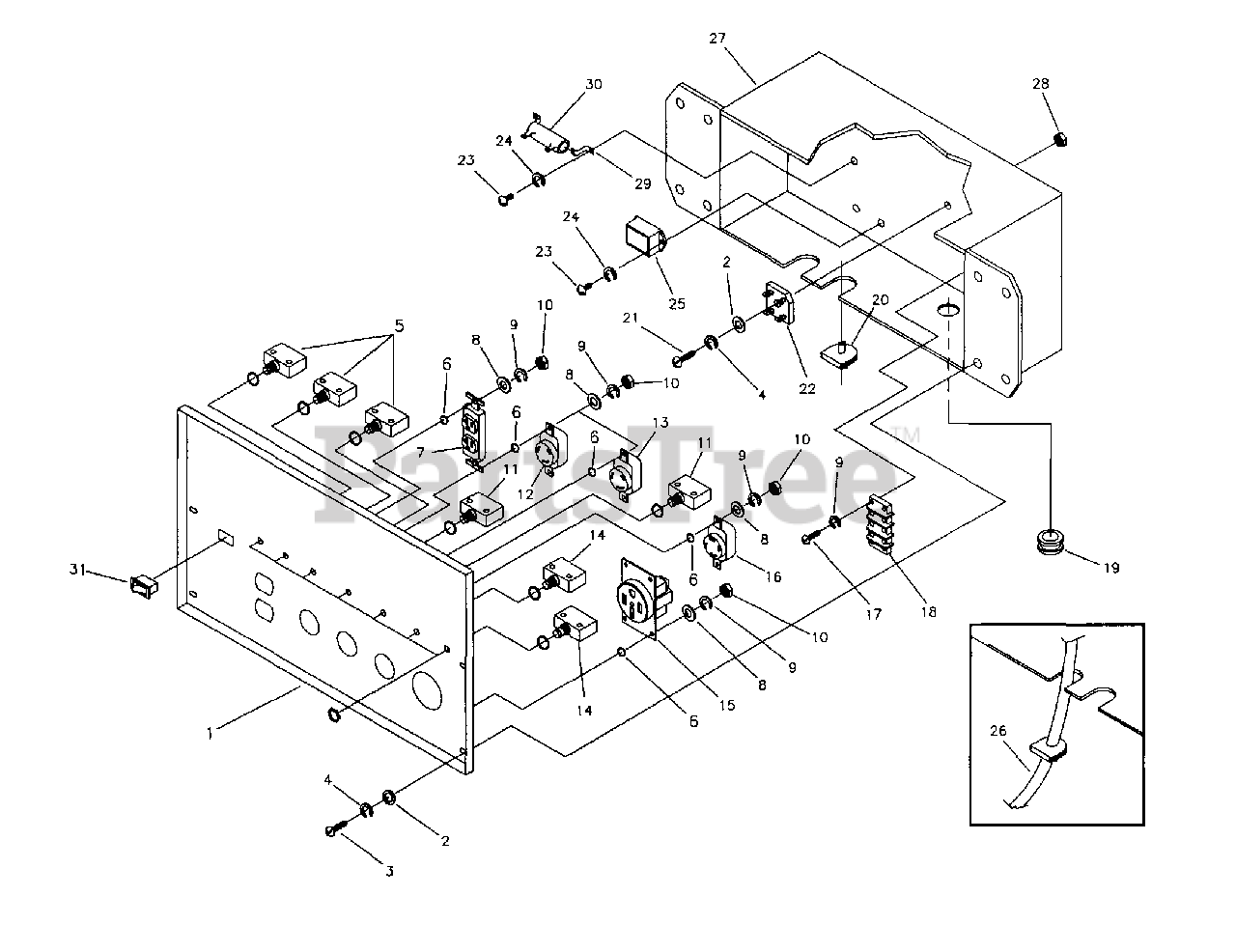

Control Panel Parts Diagram

  • Title
1

Briggs & Stratton BB5006

PANEL, Control

$

$

Currently unavailable

2

Briggs & Stratton 23897

FLAT WASHER, #10 - M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 91526

PPHMS, M5 - .08 x 12mm

$

$

Not available

4

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 Amp
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 9

0

6

Briggs & Stratton 23365

WASHER, #8 Shakeproof
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 68759

OUTLET, 120V, 20 Amp Duplex
(Superseded to 68759GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38150

FLAT WASHER, #5
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22264

LOCK WASHER, #8

$

$

Not available

10

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

11

75207A

CIRCUIT BREAKER, 30 Amp

$

$

Not available

12

Briggs & Stratton 74190

OUTLET, 120V/20A Twistlock

$

$

Not available

13

Briggs & Stratton 68868

OUTLET, 120V, 30 Amp Twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B4445

CIRCUIT BREAKER, 45 Amp
(Superseded to B4445GS)

$161.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4262

OUTLET, 120/250V, 50 Amp
(Superseded to B4262GS)

$142.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43437

OUTLET, 120/240V, 30 Amp Twistlock

$

$

Not available

17

Briggs & Stratton 80077

PPHMS, M4 x 20mm
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 92953

BLOCK, 50 Amp, 3 - Terminal
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 90576

GROMMET, Rubber
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 84135

GROMMET, Rubber
(Superseded to 84135GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75477

PPHMS, M5 - 0.8 x 20mm
(Superseded to 75477GS)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B4894

RECTIFIER, Battery Charge
(Superseded to B4894GS)

$

$

Not available

23

Briggs & Stratton 43181

PHMS, M3 - 0.5 x 10mm
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 43182

LOCK WASHER, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 77314

RELAY, Thermal

$

$

Not available

26

Briggs & Stratton B5011

ASSEMBLY, Wire Harness
(Superseded to B5011GS)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B95906

BOX, Control Panel

$

$

Currently unavailable

28

Briggs & Stratton 51716

NUT, Hex M5 - 0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4893

STAND OFF
(Superseded to B4893GS)

$

$

Not available

30

Briggs & Stratton B4892

RESISTOR, 2ohm 25 watt
(Superseded to B4893GS)

$

$

Not available

31

Briggs & Stratton 78653

SWITCH, Run/Stop
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0
