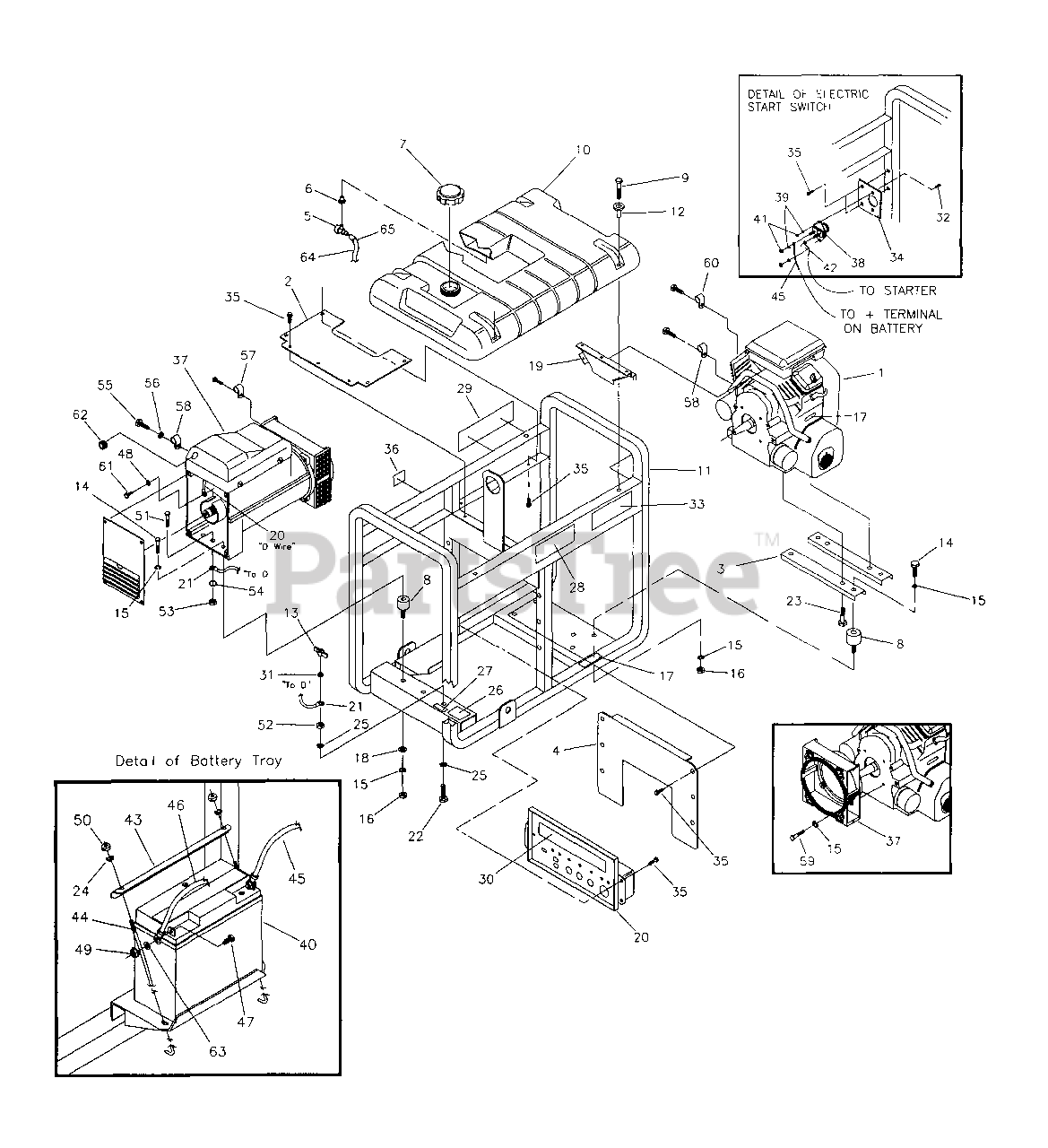

1415-0 - Generac 10,000 Watt AC Portable Generator Main Unit Parts Diagram

10,000 Watt AC Portable Generator

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE, B & S 18HP ES

$

$

Not available

2

Briggs & Stratton BB4509A

SHIELD, Heat
(Superseded to BB4509AGS)

$79.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A77304

SUPPORT, Engine
(Superseded to A77304GS)

$27.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton BB5567

SHIELD, Heat
(Superseded to BB5567GS)

$94.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

VALVE, Fuel Shut-Off
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

BUSHING, Fuel Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton B4325

CAP, Fuel Tank
(Superseded to B4325GS)

$93.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38353

MOUNTS, Vibration
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 78831B

CAPSCREW, M6-1.0 x 60mm
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton B1696

TANK, Fuel 10 Gal

$

$

Currently unavailable

11

Briggs & Stratton AB4426

CRADLE
(Superseded to AB4426GS)

$713.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

GROMMET, Fuel Tank Mounting
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 87680

WING NUT, M6 - 1.0
(Superseded to 87680GS)

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152

CAPSCREW, 3/8-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

WASHER, 3/8" Lock

$

$

Not available

16

Briggs & Stratton 22241

NUT, 3/8"-16 Hex

$

$

Not available

17

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22131

WASHER, 3/8" Flat
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B93074

SHIELD, Heat
(Superseded to B93074GS)

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B5012

ASSEMBLY, Control Panel

$

$

Not available

21

Briggs & Stratton 19553621

WIRE ASSEMBLY, Ground
(Superseded to 19553621GS)

$7.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 42568

HHCS, M6 - 1.0 x 20 Lg
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 75246

SELF TAPPING, 3/8"-16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22145

WASHER, M8 Flat

$

$

Not available

25

Briggs & Stratton 26850

WASHER, M6 Shakeproof

$

$

Not available

26

Briggs & Stratton 20566

DECAL, 1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton B5021

DECAL, Side Panel

$

$

Currently unavailable

30

Briggs & Stratton B5020

DECAL, Control Panel

$

$

Currently unavailable

31

Briggs & Stratton 52857

NUT, Locking M6 - 1.0
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 22287

CAPSCREW, 1/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93826

DECAL, Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 78289

ASSY., Starter Switch
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2153

SCREW, #12 Self Driller
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 73054

DECAL, Fuel Shut-Off

$

$

Not available

37

Briggs & Stratton B4268

ALTERNATOR, 10KW
(Superseded to B4268GS)

$2472.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

39

Briggs & Stratton 22097

WASHER, 1/4" Lock
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4489

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 4 left!

0

41

Briggs & Stratton 22127

NUT, 1/4" - 20 Hex

$

$

Not available

42

Briggs & Stratton 19853621

WIRE ASSEMBLY, Starter
(Superseded to 19853621GS)

$19.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton A96925

BRACKET, Battery Tie Down
(Superseded to M96925GS)

$

$

Not available

44

Briggs & Stratton 96924

J-BOLT, M8 - 1.25
(Superseded to 96924GS)

$7.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 19953621

CABLE, Battery Positive
(Superseded to 19953621GS)

$23.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 19753621

CABLE, Battery Negative
(Superseded to 19753621GS)

$14.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 52618

HHCS, M5 - 0.8 x 12
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 49226

WASHER, M5 Lock
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 52856

NUT, M5 Flange Lock
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 49820

NUT, Nylok M8 - 1.25

$

$

Not available

51

Briggs & Stratton 39253

CAPSCREW, M8 - 1.25 x 20
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 49813

NUT, Hex M6 - 1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 45771

NUT, M8 - 1.25

$

$

Not available

54

Briggs & Stratton 27482

WASHER, 5/16" Shakeproof
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 47411

CAPSCREW, M6 - 1.0 X 16

$

$

Not available

56

22473

WASHER, Flat M6

$

$

Not available

57

Briggs & Stratton 55934T

CLAMP, Hose
(Superseded to 55934TGS)

$4.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 55934G

CLAMP, Hose
(Superseded to 55934GGS)

$4.99

$

Usually ships in 2-12 days

0

59

22511

CAPSCREW, 3/8 x 1-1/4"

$

$

Not available

60

Briggs & Stratton 96832

CLAMP, Hose
(Superseded to 96832GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 52618

HHCS, M5 - 0.8 x 12
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B4794

GROMMET, Generator Cover
(Superseded to B4794GS)

$4.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 23897

WASHER, M5 Lock
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 30340

HOSE, 1/4" I.D.

$3155.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 48031C

CLAMP, Hose 1/2"

$

$

Not available

Briggs & Stratton B5013

Owner's Manual
(Superseded to B5013GS)

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

125V 30A Plug Parts
(Superseded to 100523GS)

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93568

125V 20A Plug

Note: Parts Not Illustrated

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

120/240V 30A Plug
(Superseded to 43438GS)

Note: Parts Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061

Oil Bottle (28oz)
(Superseded to BB3061GS)

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4784

Alt. Wire Harness

Note: Parts Not Illustrated

$

$

Currently unavailable

Briggs & Stratton B4767

Storage Cover
(Superseded to B4767GS)

Note: Available Accessories

$108.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883

Cord Wrap Brackets
(Superseded to 84883GS)

Note: Available Accessories

$29.99

$

Usually ships in 2-12 days

0
