1415 (138-241-100) - Cub Cadet Garden Tractor (SN: 126001 - 147087) Carburetor Parts Diagram

Garden Tractor

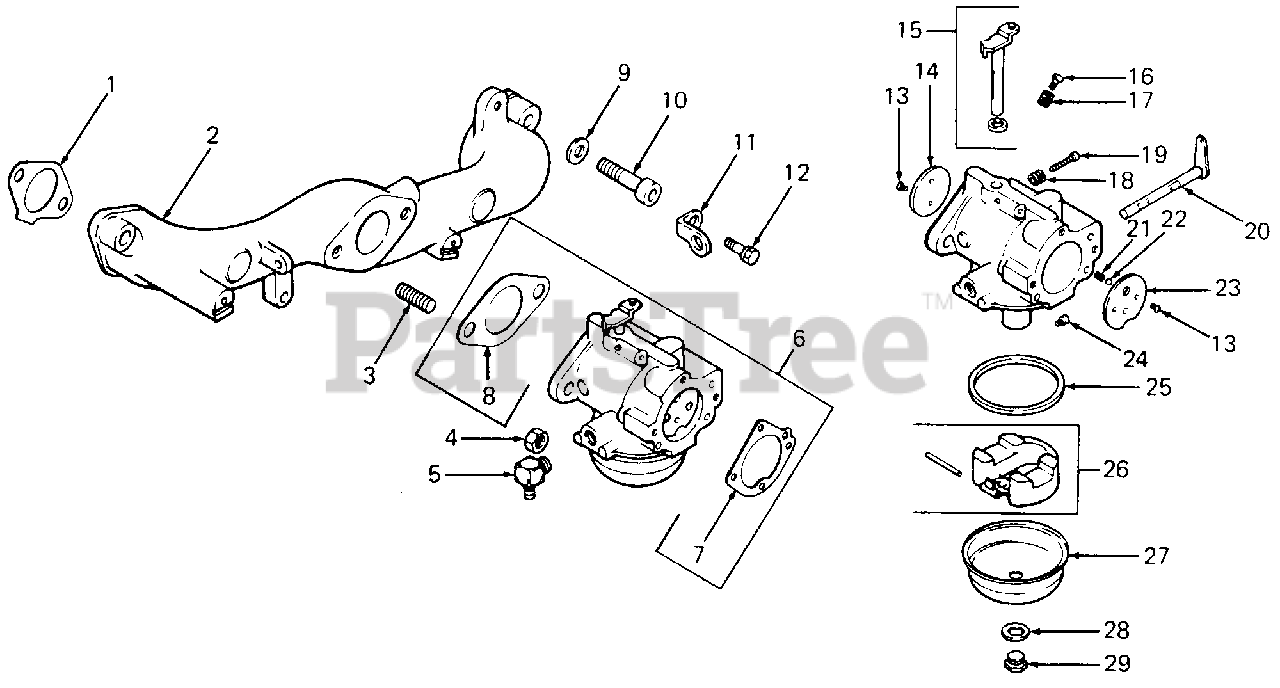

Carburetor Parts Diagram

  • Title

1

Cub Cadet KH-52-041-09

Gasket, Manifold
(Superseded to KH-52-041-09-S)

$

$

Not available

2

Cub Cadet KH-52-164-14

Manifold, Intake

$

$

Not available

3

Cub Cadet KH-X-352-37

Stud, 5/16-18 X 1

$

$

Not available

4

Cub Cadet KH-X-77-2

Nut, Hex, 5/16-18

$

$

Not available

5

Cub Cadet KH-22-155-02

Connector, 90 Hose

$

$

Currently unavailable

6

Cub Cadet KH-52-853-09

Carburetor Assy w/ Gasket
(Superseded to KH-52-853-25)

Note: [Includes Ref No. 7, 8, 13 (Qty 4) & 14 thru 29]

$

$

Not available

7

Cub Cadet KH-277069

Gasket, Air Intake Elbow
(Superseded to KH-25-041-06)

$

$

Not available

8

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

In Stock, Qty 8

0

9

Cub Cadet KH-X-25-44

Washer, Plain, 5/16

$

$

Not available

10

Cub Cadet KH-X-6-29

Screw, Hex Socket, 5/16-18 X 1-1/4

$

$

Currently unavailable

11

Cub Cadet KH-232867

Strap, Hanging

$

$

Not available

12

Cub Cadet KH-X-67-62

Screw, Hex Wash, 1/4-20 X 5/8

$

$

Not available

13

Cub Cadet KH-25-086-27

Screw, Throttle & Choke Plate

$

$

Not available

14

Cub Cadet KH-25-146-02

Plate, Throttle

$

$

Not available

15

Cub Cadet KH-52-144-16

Shaft, Throttle w/ Lever & Seal

$

$

Not available

16

Cub Cadet KH-25-368-01

Needle, Idle Fuel Adj

$

$

Not available

17

Cub Cadet KH-25-089-02

Spring, Idle Fuel

$

$

Not available

18

Cub Cadet KH-25-089-04

Spring, Idle Speed

$

$

Not available

19

Cub Cadet KH-25-086-26

Screw, Idle Speed Adj

$

$

Not available

20

Cub Cadet KH-52-090-13

Lever, Choke

$

$

Not available

21

Cub Cadet KH-25-089-03

Spring, Choke Friction

$

$

Not available

22

Cub Cadet KH-25-194-01

Ball, Choke Friction

$

$

Not available

23

Cub Cadet KH-25-146-03

Plate, Choke

$

$

Not available

24

Cub Cadet KH-52-337-06

Jet, Main

$

$

Not available

25

Cub Cadet KH-25-041-04

Gasket, Bowl

$

$

Not available

26

Cub Cadet KH-25-757-09

Float Kit

$

$

Not available

27

Cub Cadet KH-25-104-01

Bowl, Fuel

$

$

Not available

28

Cub Cadet KH-25-041-03

Gasket, Bowl Retainer Screw

$

$

Not available

29

Cub Cadet KH-25-100-05

Screw, Bowl Retainer
(Superseded to KH-12-086-05)

$

$

Not available

Cub Cadet KH-25-757-08

Carburetor Repair Kit
(Superseded to KH-25-757-11)

$

$

Not available

Cub Cadet KH-52-755-98

High Altitude Kit

$

$

Not available
