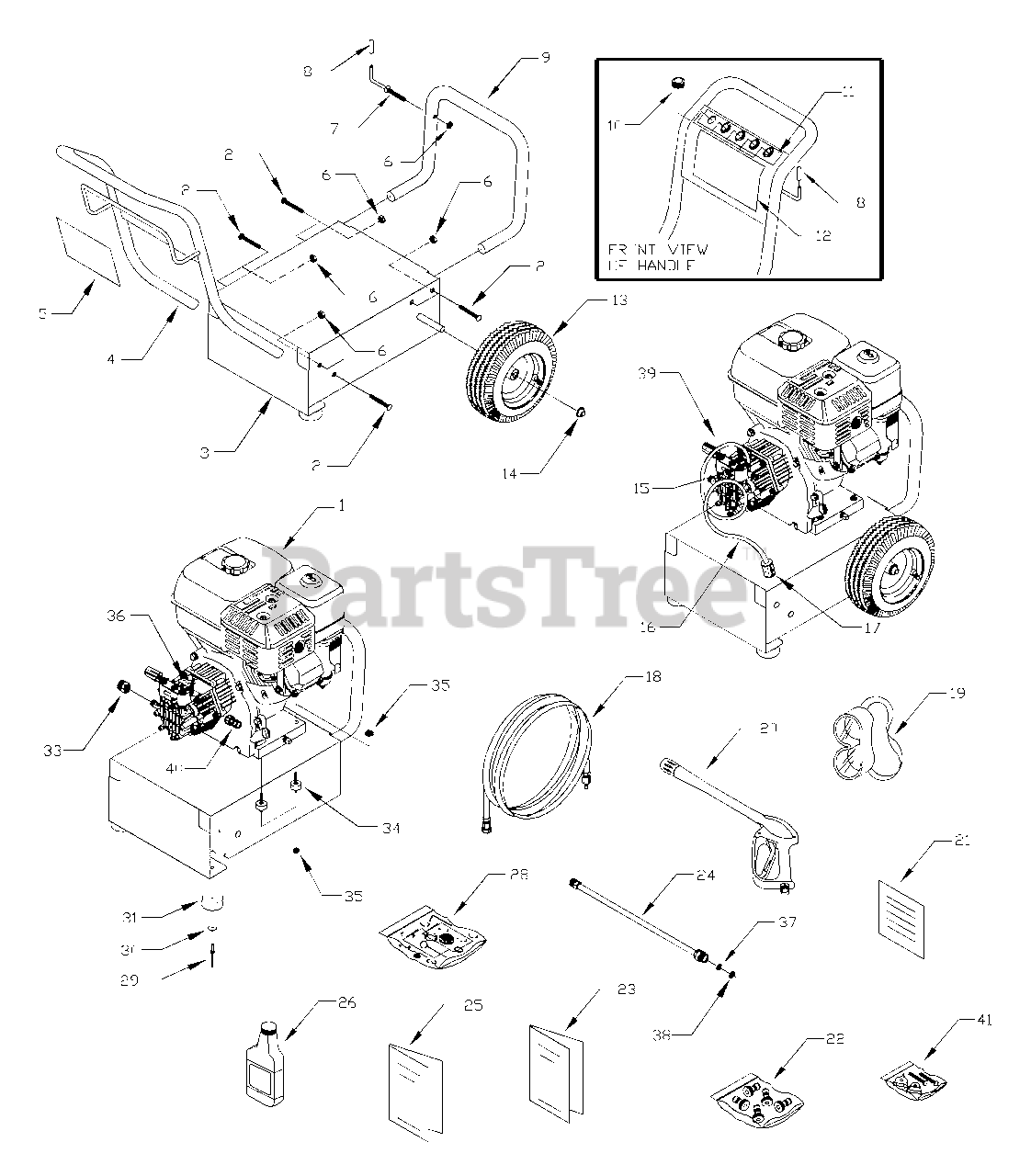

1417-0 - Generac 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

2

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B190516GS

BASE

$82.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton CB3861CGS

HANDLE

$179.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4160GS

DECAL, Operating Instructions

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99583GS

NUT, Hex Flange

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150GS

HOOK, Square Neck Gun

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516GS

CAP, Black Vinyl

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton CB3866GS

BUMPER

$31.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4159GS

DECAL, 5 QD Nozzles

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B5188GS

DECAL, Unit 1417

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 88521GS

ASSEMBLY, Wheel

$93.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040AGS

HOSE, Chemical Inject

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

19

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1436BGS

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 88681GS

CARD, Owners Registration

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B4155GS

KIT, Nozzles QD

$71.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B5189GS

MANUAL, Owners 1417-0

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3858GS

ASSY., Wand Ext. with QD

$

$

Not available

25

Briggs & Stratton B5214GS

MANUAL, Honda

$14.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

28

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 188194GS

BLIND RIVET

$1.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 71693GS

FLAT WASHER

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 27007GS

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

33

Briggs & Stratton 21424GS

CONNECTOR, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 21217GS

MOUNT, Rubber Shock

$7.49

$

In Stock, only 1 left!

0

35

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 20+

0

36

Briggs & Stratton B1288GS

TAG, Breather Cap

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97837GS

O-RING, Hi Presure Trans.

$3.49

$

In Stock, Qty 9

0

39

-----

PUMP, Assembly

Note: (For Replacement, order 198347GS)

$

$

Not available

39

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 185923GS

QUICK CONNECTOR

$31.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B4196GS

KIT, Handle Hardware

$6.49

$

Usually ships in 2-12 days

0
