1418-0 - Generac 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

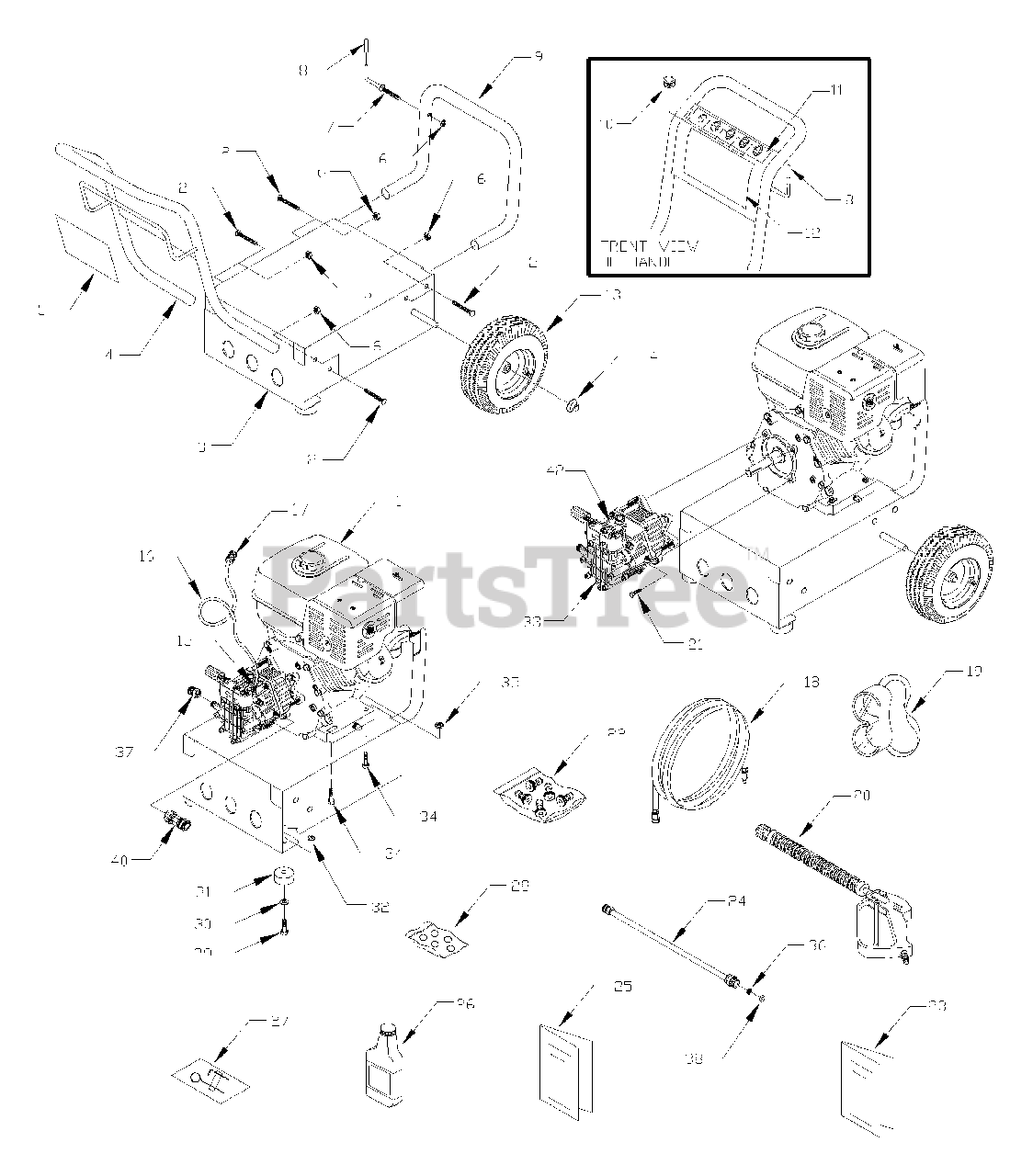

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton B2043

BOLT, 5/16" - 18 x 1-3/4" Carriage
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton BB2226B

BASE
(Superseded to BB2226BGS)

$

$

Not available

4

Briggs & Stratton CB3861C

HANDLE
(Superseded to CB3861CGS)

$179.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4160

DECAL, Instructions
(Superseded to B4160GS)

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99583

NUT, 5/16" - 18 Hex Flange
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150

HOOK, 5/16" Square Neck Gun
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516

CAP, Black Vinyl .280"
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton CB4105

BUMPER
(Superseded to CB4105GS)

$56.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 30809

GROMMET, 1/8" - 11/16"
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4159

DECAL, 5 QD Nozzles
(Superseded to B4159GS)

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B5607

DECAL, Unit
(Superseded to B5607GS)

$17.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 88521

ASSEMBLY, Wheel 10" Dia. x 4"
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75402

PUSHNUT, .50"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

15

Briggs & Stratton 48031G

CLAMP, Hose 7/16" Dia.
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040D

HOSE, 54" Chemical Inject
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton B4805

HOSE, 3/8" x 50'
(Superseded to 205734GS)

$

$

Not available

19

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1436B

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 23707

SHCS, 5/16" - 24 x 1"
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 186301

KIT, Nozzles QD
(Superseded to 186301GS)

$71.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B5606

MANUAL, Owners
(Superseded to B5606GS)

$14.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3858

ASSY., Wand Ext. with QD
(Superseded to 207784GS)

$38.99

$

In Stock, Qty 9

0

25

Briggs & Stratton B1464

MANUAL, Engine
(Superseded to B1464GS)

$17.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton BB3061B

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

27

Briggs & Stratton B2509

KIT, Nozzle Cleaning

$

$

Currently unavailable

28

Briggs & Stratton B5830

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 42909

HHCS, M8 - 1.25 x 30
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 50190

FLAT WASHER, 10GA - .34" x 1"
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 27007

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

32

Briggs & Stratton 52858

NUT, Locking M8 - 1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

33

NSP

ASSEMBLY, Pump (see pages 18-19)

$

$

Not available

34

Briggs & Stratton 64416

BOLT, M10 - 1.5 x 45 mm
(Superseded to 64416GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52859

NUT, Locking M10 - 1.50
(Superseded to 52859GS)

$2.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97837

O-RING, High Pressure Hose
(Superseded to 97837GS)

$3.49

$

In Stock, Qty 9

0

40

Briggs & Stratton 185923

QUICK CONNECT, M22 Female
(Superseded to 185923GS)

$31.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B1288

TAG, Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0
