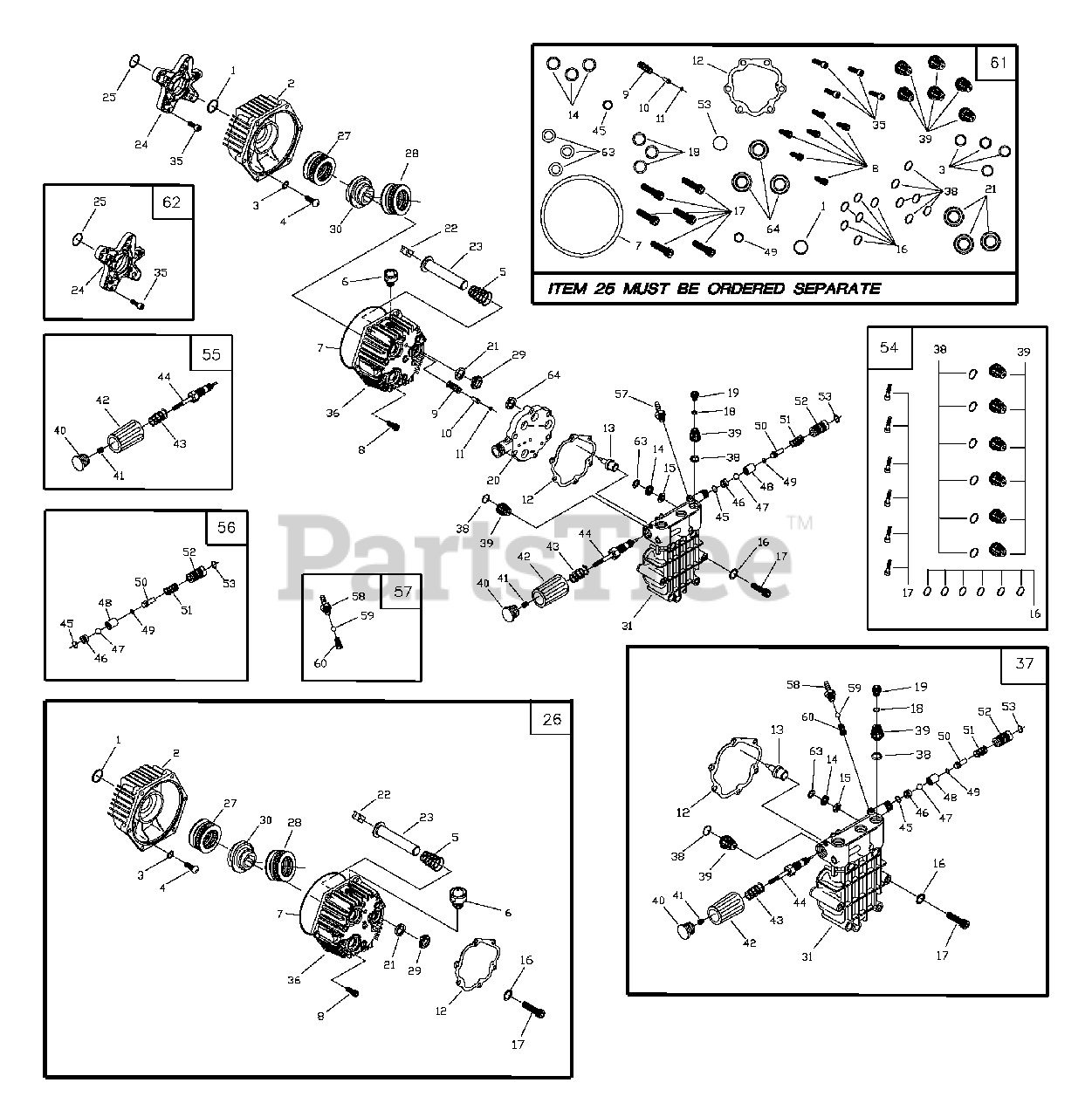

1418-0 - Generac 3,000 PSI Pressure Washer Pump Parts Diagram

3,000 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton B2218

O-RING, Engine Adapter
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton B2260

HOUSING, Cam
(Superseded to B2260GS)

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2217

O-RING, Engine Adapter Bolt
(Superseded to B2217GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2261B

SCREW, Button Hd 5/16 - 24 x 3/4"
(Superseded to B2261BGS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 96400

SPRING, Piston Return
(Superseded to 96400GS)

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99735

ASSEMBLY, Oil Breather
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93790

O-RING, Crankcase
(Superseded to 93790GS)

$6.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 40945

SHCS, M6 x 1.0 x 20mm
(Superseded to 40945GS)

$3.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 93652

SPRING, Thermal By-Pass
(Superseded to 93652GS)

$6.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 95416

PISTON, Thermal By-Pass
(Superseded to 95416GS)

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 93876

O-RING, Thermal By-Pass
(Superseded to 690312)

$3.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton A2069

GASKET, Head
(Superseded to A2069GS)

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93644

ACTUATOR, Thermal By-Pass
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 96053

SEAL, High Pressure
(Superseded to 96053GS)

$12.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 96015

RING, Bearing
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2665

WASHER, Steel Special
(Superseded to B2665GS)

$3.49

$

In Stock, Qty 5

0

17

Briggs & Stratton A2013

BOLT, Head M8 x 1.25 x 70mm
(Superseded to A2013GS)

$5.99

$

In Stock, Qty 5

0

18

Briggs & Stratton 97840

O-RING, Cap
(Superseded to 97840GS)

$5.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 97841

CAP, Outlet Port
(Superseded to 97841GS)

$

$

Not available

20

Briggs & Stratton A1320

SPACER PLATE
(Superseded to A1320GS)

$31.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B3286

SEAL, Oil Piston
(Superseded to B3286GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94944

SHOE, Piston Pivot
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 99427

ASSEMBLY, Ceramic Piston & Cap
(Superseded to 99427GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3672C

ADAPTER, Engine, Honda 8 - 9 HP

$

$

Currently unavailable

25

Briggs & Stratton 185726

O-RING, Engine Adapter
(Superseded to 185726GS)

$13.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 186216A

KIT, Crankcase, 7.5

Note: Service kit includes all parts shown within the box. Certain items are only available as a part of a kit.

$

$

Currently unavailable

1

O-RING, Engine Adapter

$

$

Not available

2

ADAPTER, Housing, Cam

$

$

Not available

3

O-RING, Engine Adapter Bolt

$

$

Not available

4

SCREW, Button Hd 5/16 - 24 x 3/4"

$

$

Not available

5

SPRING, Piston Return

$

$

Not available

6

ASSEMBLY, Oil Breather

$

$

Not available

7

O-RING, Crankcase

$

$

Not available

8

SHCS, M6 x 1.0 x 20mm

$

$

Not available

12

GASKET, Head

$

$

Not available

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head M8 x 1.25 x 70mm

$

$

Not available

21

SEAL, Oil Piston

$

$

Not available

22

SHOE, Piston Pivot

$

$

Not available

23

ASSEMBLY, Ceramic Piston & Cap

$

$

Not available

27

BEARING SET, 4 x 4

$

$

Not available

28

BEARING SET, 5.5 x 4

$

$

Not available

29

SPACER, Pilot

$

$

Not available

30

AXIAL CAM, 7.5 Lift

$

$

Not available

36

HOUSING, Piston

$

$

Not available

37

Briggs & Stratton 185752

KIT, Complete Head
(Superseded to 185752GS)

$310.99

$

Usually ships in 2-12 days

0

12

GASKET, Head

$

$

Not available

13

ACTUATOR, Thermal By-Pass

$

$

Not available

14

SEAL, High Pressure

$

$

Not available

15

RING, Bearing

$

$

Not available

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head M8 x 1.25 x 70mm

$

$

Not available

18

O-RING, Cap

$

$

Not available

19

CAP, Outlet Port

$

$

Not available

31

HEAD, Flat, Brass

$

$

Not available

38

O-RING, Check Valve

$

$

Not available

39

ASSEMBLY, Check Valve

$

$

Not available

40

CAP, Plastic

$

$

Not available

41

SET SCREW, M6 x 8

$

$

Not available

42

HANDLE, Unloader

$

$

Not available

43

SPRING, Unloader

$

$

Not available

44

ASSEMBLY, Spindle

$

$

Not available

45

O-RING, Ball Seat

$

$

Not available

46

SEAT, Ball Unloader

$

$

Not available

47

BALL, Stainless Steel 9/32 Dia.

$

$

Not available

48

SEAT, Trapped Line Pressure

$

$

Not available

49

O-RING, Trapped Line Pressure

$

$

Not available

50

VALVE, Shuttle Piston

$

$

Not available

51

SPRING, Piston Trapped Pressure

$

$

Not available

52

VENTURI, Chemical

$

$

Not available

53

O-RING, Venturi

$

$

Not available

58

BARB HOSE

$

$

Not available

59

BALL, 5.5 dia. Chemical Injector

$

$

Not available

60

SPRING, Chemical Injector

$

$

Not available

63

SPACER, High Pressure Seal

$

$

Not available

54

Briggs & Stratton 185933

KIT, Check Valve
(Superseded to 185933GS)

$49.99

$

Usually ships in 2-12 days

0

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head M8 x 1.25 x 70mm

$

$

Not available

38

O-RING, Check Valve

$

$

Not available

39

ASSEMBLY, Check Valve

$

$

Not available

55

Briggs & Stratton B3479

KIT, Unloader Spindle
(Superseded to B3479GS)

$50.99

$

Usually ships in 2-12 days

0

40

CAP, Plastic

$

$

Not available

41

SET SCREW, M6 x 8

$

$

Not available

42

HANDLE, Unloader

$

$

Not available

43

SPRING,Unloader

$

$

Not available

44

ASSEMBLY, Spindle

$

$

Not available

56

Briggs & Stratton B3510

KIT, High Pressure Outlet
(Superseded to B3510GS)

$39.99

$

In Stock, only 1 left!

0

45

O-RING, Ball Seat

$

$

Not available

46

SEAT, Ball Unloader

$

$

Not available

47

BALL, Stainless Steel 9/32 Dia.

$

$

Not available

48

SEAT, Trapped Line Pressure

$

$

Not available

49

O-RING, Trapped Line Pressure

$

$

Not available

50

VALVE, Shuttle Piston

$

$

Not available

51

SPRING, Piston Trapped Pressure

$

$

Not available

52

VENTURI, Chemical

$

$

Not available

53

O-RING, Venturi

$

$

Not available

57

Briggs & Stratton 185943

KIT, Chemical Injector
(Superseded to 185943GS)

$5.99

$

Usually ships in 2-12 days

0

58

BARB HOSE

$

$

Not available

59

BALL, 5.5 dia. Chemical Injector

$

$

Not available

60

SPRING, Chemical Injector

$

$

Not available

61

Briggs & Stratton 185926

KIT, O-Ring Sea Is
(Superseded to 185926GS)

$

$

Not available

1

O-RING, Engine Adapter

$

$

Not available

3

O-RING, Engine Adapter Bolt

$

$

Not available

7

O-RING, Crankcase

$

$

Not available

8

SHCS, M6 x 1.0 x 20mm

$

$

Not available

9

SPRING, Thermal By-Pass

$

$

Not available

10

PISTON, Thermal By-Pass

$

$

Not available

11

O-RING, Thermal By-Pass

$

$

Not available

12

GASKET, Head

$

$

Not available

14

SEAL, High Pressure

$

$

Not available

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head M8 x 1.25 x 70mm

$

$

Not available

18

O-RING, Cap

$

$

Not available

21

SEAL, Oil Piston

$

$

Not available

35

BOLT, SHCS 5/16 - 24 x 1"

$

$

Not available

38

O-RING, Check Valve

$

$

Not available

39

ASSEMBLY, Check Valve

$

$

Not available

45

O-RING, Spindle

$

$

Not available

49

O-RING, Trapped Line Pressure

$

$

Not available

53

O-RING, Venturi

$

$

Not available

63

SPACER, High Pressure Seal

$

$

Not available

64

SEAL, Piston U-Cup

$

$

Not available

62

Briggs & Stratton 187791

KIT, ENGINE ADAPTER

$

$

Currently unavailable

24

ADAPTER, Engine, Honda, 8 - 9 HP

$

$

Not available

25

O-RING, Engine Adapter

$

$

Not available

35

BOLT, SHCS 5/16 - 24 x 1"

$

$

Not available
