142-2038 - Exmark Turf Slicer Seeder Attachment (SN: 413950474 - 416150474) (Rev A) (2023) Seeder Hopper Assembly - 1 Parts Diagram

Turf Slicer Seeder Attachment

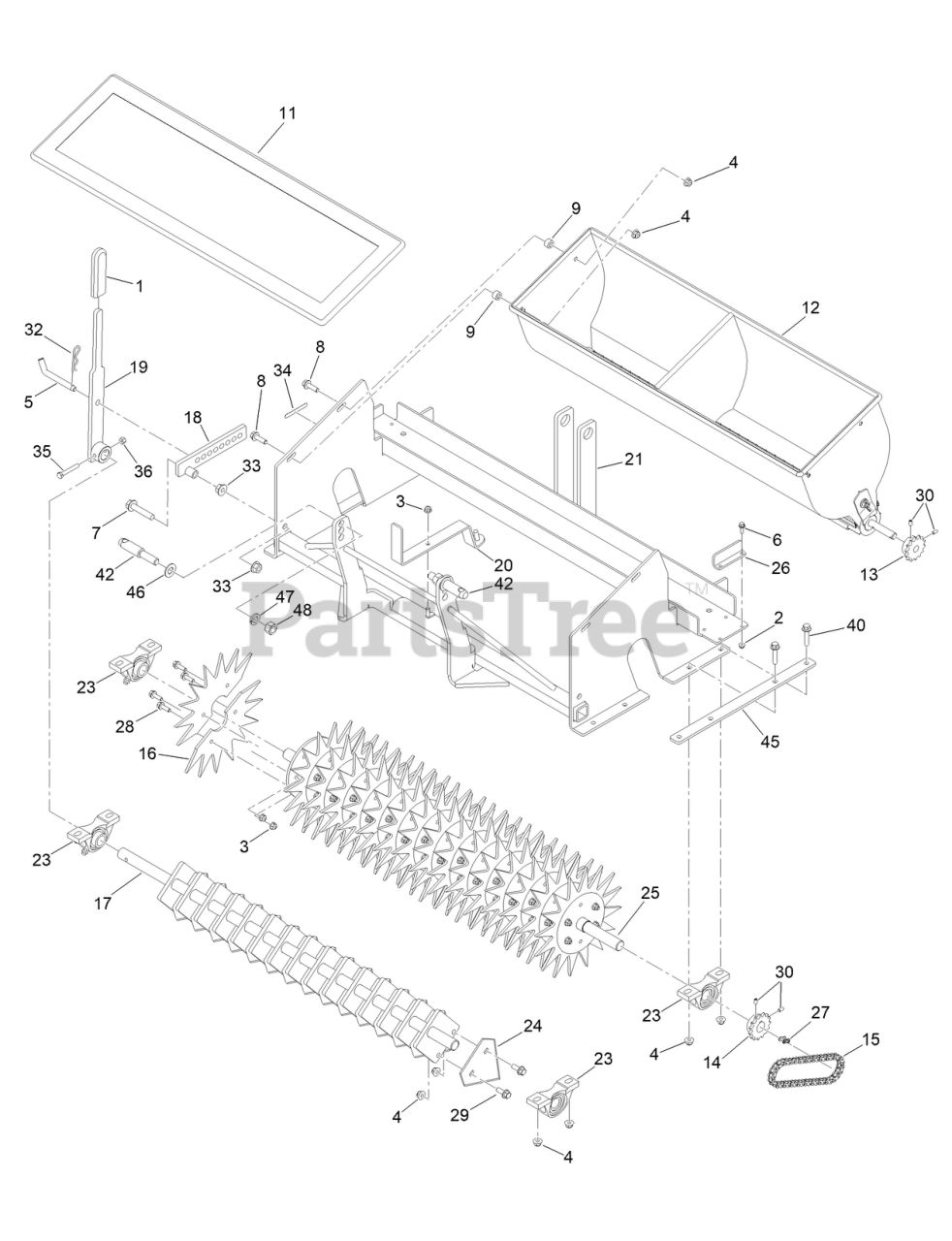

Seeder Hopper Assembly - 1 Parts Diagram

  • Title

1

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 7

0

2

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 135-9413

1/2 X 4-3/4 BENT PIN

$10.99

$

Usually ships in 3-6 days

0

6

Exmark 120-9678

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 127-7444

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

8

Exmark 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

9

Exmark 135-7040

BUSHING-HOPPER

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 135-8482

SLIT SEEDER DROP COVER

$62.99

$

Usually ships in 3-6 days

0

12

Exmark 135-8544

36" SLIT SEEDER HOPPER

$2442.99

$

Usually ships in 3-6 days

0

13

Exmark 135-8546

SPROCKET-UPPER,SEEDER\NDA

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 135-8547

SPROCKET-LOWER,SEEDER\NDA

$30.99

$

Usually ships in 3-6 days

0

15

Exmark 135-8549

Chain-Roller

$85.99

$

Usually ships in 3-6 days

0

16

Exmark 135-9312-05

Star, Slit Seeder

$22.99

$

Usually ships in 3-6 days

0

17

Exmark 135-9322-05

Shaft-Sq Plate [blk-Txt]

$788.99

$

Usually ships in 3-6 days

0

18

Exmark 135-9325-05

ARM-CTRL. SEEDER

$73.99

$

Usually ships in 3-6 days

0

19

Exmark 135-9327-05

Handle-Slit Seeder [blk-Txt]

$148.99

$

Usually ships in 3-6 days

0

20

Exmark 135-9329-05

Handle-Gate [blk-Txt]

$64.99

$

Usually ships in 3-6 days

0

21

Exmark 135-9349-05

FRAME-SEEDER, SLIT

$932.99

$

Usually ships in 3-6 days

0

23

Exmark 135-9379

PILLOW BLOCK BEARING

$33.99

$

Usually ships in 3-6 days

0

24

Exmark 135-9405

4' SLICING KNIFE\NR201313

$48.99

$

Usually ships in 3-6 days

0

25

Exmark 142-0263-05

DISC-SLIT SEEDER

$1026.99

$

Usually ships in 3-6 days

0

26

Exmark 142-1650-05

Bracket-Weight [blk-Txt]

$13.99

$

Usually ships in 3-6 days

0

27

Exmark 2710-11

Link-Chain

$6.49

$

Usually ships in 3-6 days

0

28

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

30

Exmark 3245-9

Screw-Set, HSH

$0.99

$

In Stock, Qty 15

0

32

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

33

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 8

0

34

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 6

0

42

Exmark 142-3075

PIN-LIFT

$11.99

$

Usually ships in 3-6 days

0

45

Exmark 142-3007-05

PLATE-DOUBLER

$26.99

$

Usually ships in 3-6 days

0

46

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

47

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0
