142-8181 - Exmark Gate and Cable Kit (SN: 416150475 - 417930745) (Rev A) (2024) Pedal Assembly Parts Diagram

Gate and Cable Kit

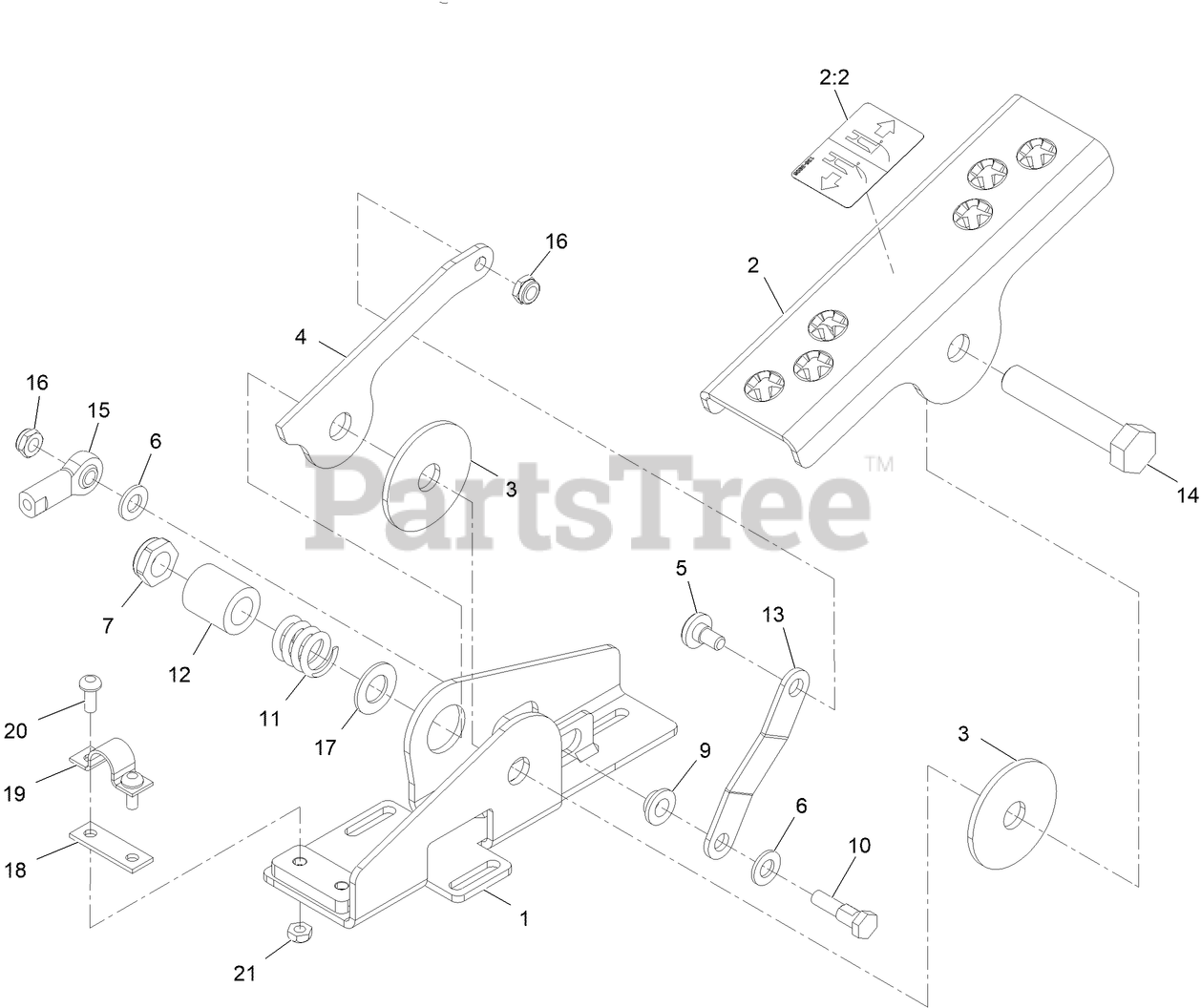

Pedal Assembly Parts Diagram

  • Title

1

Exmark 142-8216

WELD, PEDAL MOUNT

$113.99

$

Usually ships in 3-6 days

0

2

Exmark 142-9446

ASM-PEDAL LINK CHANNEL W/DECAL

$74.99

$

Usually ships in 0 days

0

2:2

Exmark 135-3908

DECAL-OCD OPERATION

$18.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5009

DISC-FRICTION

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 142-8210

Arm- Foot Pedal

$

$

Currently unavailable

5

Exmark 137-6246

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 107-0394

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Exmark 142-8208

Bushing, Flange

$

$

Currently unavailable

10

Exmark 136-8674

BOLT-PIVOT, ECCENTRIC

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 139-5858

SPRING-COMPRESSION

$1.99

$

Usually ships in 3-6 days

0

12

Exmark 139-6325

Spacer-Pivot

$

$

Currently unavailable

13

Exmark 142-8207

LINK, FOOT PEDAL

$13.99

$

Usually ships in 3-6 days

0

14

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 6

0

15

Exmark 2411-41

ROD END-BALL JOINT

$45.99

$

Usually ships in 3-6 days

0

16

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

18

Exmark 116-1544

SHIM,CONTROL CABLE

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 116-1545

CLAMP

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

21

Exmark 3296-12

NUT-LOCK, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 5

0
