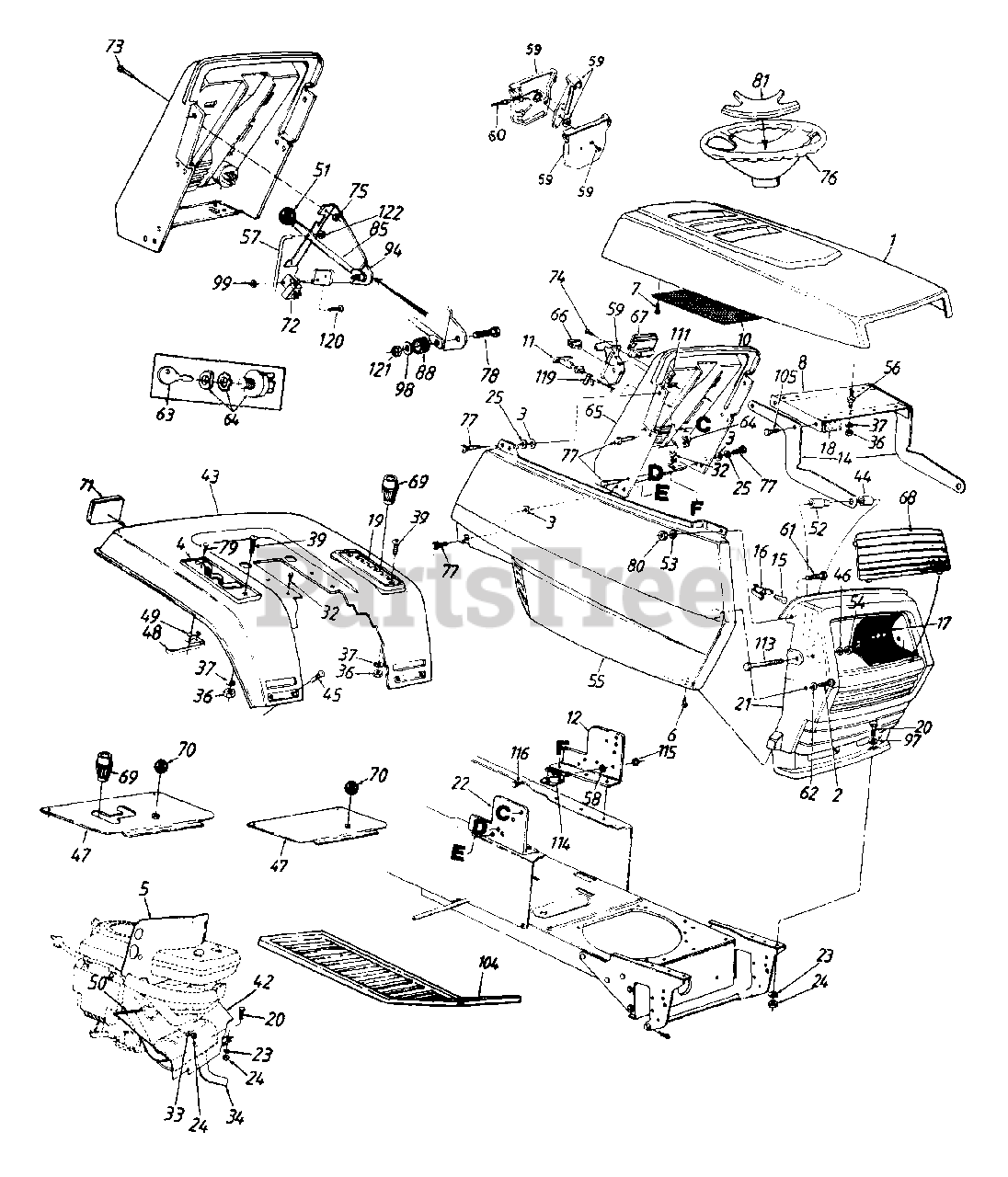

142-846H095 - Turf Power Garden Tractor (1992) (Cenex) Hood Assembly Parts Diagram

Garden Tractor

Hood Assembly Parts Diagram

  • Title

1

MTD 731-1036

Hood

Variations

MTD 731-1036-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 731-1036-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 731-1036-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 731-1371

Hood (Gray)

Note: New Part

Variations

MTD 731-1371-0662

No Longer Available HOOD / GRA - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$3.99

$

In Stock, Qty 9

0

4

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

Note: For model (806)

$28.99

$

Usually ships in 3-6 days

0

5

MTD 17452

Heat Shield

$

$

Not available

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

7

MTD 710-0200

Hex Wash Hd. AB-Tap Scr. #8 x .5" Lg.

$

$

Not available

8

MTD 16903A

Hood Plate

Note: New Part

Variations

MTD 16903A-0637

Hood Plate - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 723-0416

Screen

$

$

Not available

11

MTD 746-0614A

Choke Control

$22.99

$

In Stock, Qty 11

0

12

MTD 17294B

Dash Support Brkt.- L.H.
(Superseded to 17294B-0637)

Note: New Part

Variations

MTD 17294B-0637

BRACKET-DASH SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 16902

Hood Hinge

$

$

Not available

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

16

MTD 725-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

Note: New Part

$10.99

$

In Stock, Qty 20+

0

17

MTD 777-8516

Reflector - Headlight

$

$

Currently unavailable

18

MTD 722-0199

Foam Seal

$

$

Not available

19

MTD 731-1069

Speed Control Index Brkt.
(Superseded to 931-1746)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

21

MTD 731-1037A

Grille

Note: New Part/Code 629

Variations

MTD 731-1037A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 731-1037A-0638

GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 731-1373

Grille (Gray)

Note: New Part

$

$

Not available

22

MTD 172938

Dash Support Bracket - R.H.

Note: New Part

$

$

Currently unavailable

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0170

L-Wash. 5/16" I.D.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

34

MTD 751-0474

Muffler

$

$

Not available

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

39

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

42

MTD 16934

Front Heat Shield

$

$

Not available

43

MTD 17331

Rear Fender

Note: For model (806)

Variations

MTD 17331-0480

No Longer Available FENDER-RR - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17331-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17331-0498

No Longer Available FENDER-RR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17331-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 17330A

Rear Fender

Note: For model (846)

Variations

MTD 17330A-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17330A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17330A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17330A-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17330A-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17330A-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17330A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 750-0755

Spacer .33" I.D. x .625" O.D.

$3.99

$

Usually ships in 3-6 days

0

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash..328" I.D. x.68" O.D.

$5.49

$

Usually ships in 3-6 days

0

47

MTD 17397

Transmission Panel

Note: For model (806)

$

$

Currently unavailable

MTD 17401A

Transmission Panel

Note: For model (846)

$

$

Currently unavailable

48

MTD 725-1643

Reverse Safety Switch

Note: For model (806)

$9.99

$

In Stock, only 1 left!

0

49

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

Note: For model (806)

$6.49

$

In Stock, Qty 10

0

50

MTD 731-0511-12

Trim Strip 12" Lg.

$20.99

$

Usually ships in 3-6 days

0

51

MTD 720-0165

Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

52

MTD 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

MTD 736-0142

Fl-Wash..281" I.D. x .5" O.D.

$4.49

$

In Stock, only 1 left!

0

54

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

55

MTD 17448

Side Cover Ass'y.- R.H.

$

$

Not available

MTD 17447

Side Cover Ass'y.- L.H.

Note: (Not Shown)

$

$

Not available

MTD 683-0018

Side Cover Ass'y.- R.H. (Gray)

$

$

Not available

MTD 683-0017

Side Cover Ass'y.- L.H. (Gray)

Note: Not Shown)

$

$

Currently unavailable

56

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

57

MTD 747-0708

Deck Control Rod

$

$

Not available

58

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

59

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

60

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$10.99

$

In Stock, Qty 10

0

61

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0173

Fl-Wash..281" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 12

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

65

MTD 731-0957A

Dash Panel

$

$

Not available

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 1 left!

0

68

MTD 731-1038

Lens (White Logo)
(Superseded to 931-1038A)

$

$

Not available

MTD 731-1074

Lens (Plain)
(Superseded to 931-1038A)

$

$

Not available

69

MTD 720-0218

Shift Knob

$18.99

$

In Stock, only 1 left!

0

70

MTD 720-0166

Ball Knob Brake

$

$

Not available

71

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$16.99

$

In Stock, only 3 left!

0

72

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

73

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

74

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

76

MTD 631-0005

Steering Wheel
(Superseded to 931-0005)

Note: (Optional)

$

$

Not available

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

79

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

80

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

81

MTD 731-1344

Steering Wheel Cap

Note: (Optional)

$

$

Not available

85

MTD 747-0513

Blade Clutch Lever

$

$

Not available

88

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

94

MTD 13950A

Deck Clutch Control Brkt.

$

$

Not available

97

MTD 736-0159

Fl-Wash..344" I.D.

$3.99

$

In Stock, Qty 20+

0

98

MTD 736-0173

Fl-Wash..281" I.D. x .73"

$3.99

$

In Stock, Qty 10

0

99

MTD 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

104

MTD 731-1051

Foot Pad

Note: (Optional)

$

$

Not available

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

114

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

115

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

116

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

119

MTD 17782

Retainer Clip

$4.99

$

In Stock, only 3 left!

0

120

MTD 710-0473

Truss Mach. Scr. #10-24 x .5"

$3.99

$

In Stock, only 1 left!

0

121

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

122

MTD 726-0106

Push Nut 1/4" O.D. Rod

$3.99

$

Usually ships in 3-6 days

0
