142-8783 - Exmark Ultravac 2 Bag Collection System (SN: 413950474 - 416150474) (Rev B) (2023) 142-8783 Assembly Parts Diagram

Ultravac 2 Bag Collection System

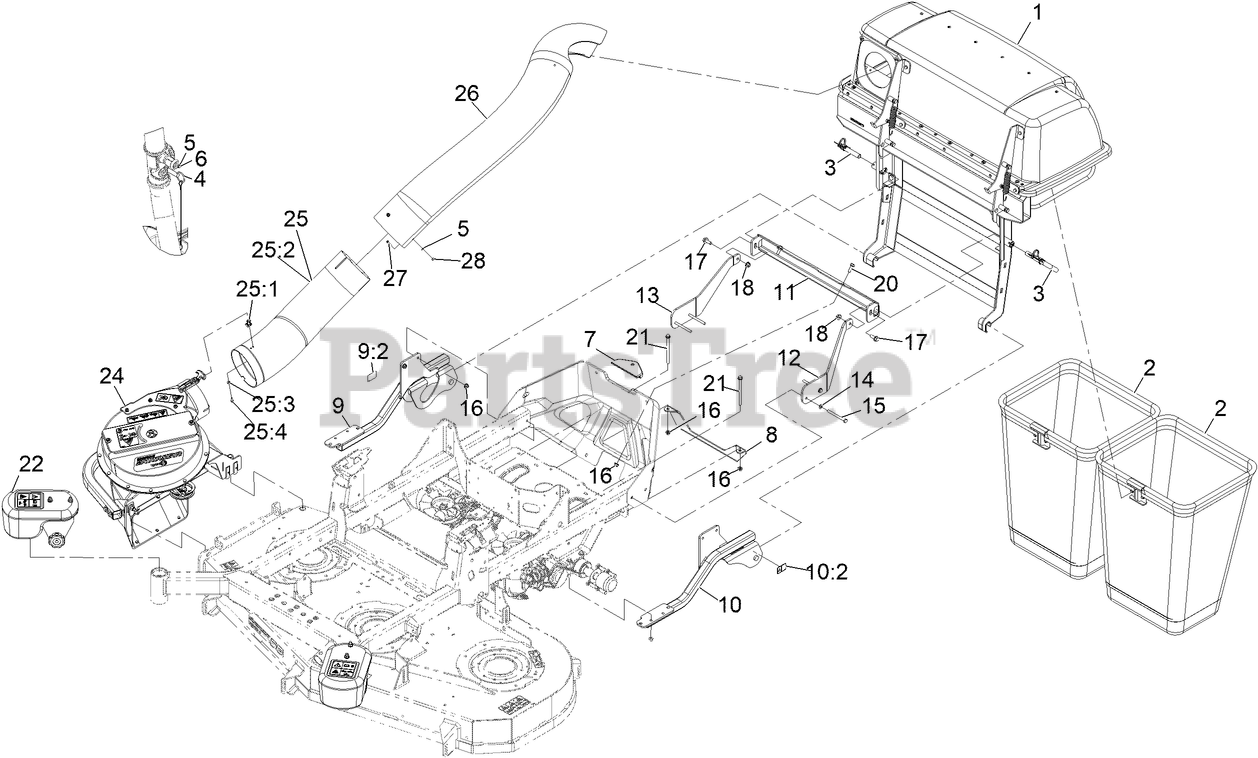

142-8783 Assembly Parts Diagram

  • Title

1

Exmark 109-5941

Asm, Hood & Frame

$

$

Currently unavailable

2

Exmark 116-0754

BAG AND FRAME ASM

$208.99

$

In Stock, only 2 left!

0

3

Exmark 116-0458

PIN-MOUNT, BAGGER

$17.99

$

In Stock, Qty 5

0

4

Exmark 106-9951

HITCH PIN ASM

$54.99

$

In Stock, only 1 left!

0

5

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 126-8299

COVER-HITCH

$8.99

$

Usually ships in 3-6 days

0

8

Exmark 145-3607-03

SUPPORT-TRANSMISSION

$51.99

$

Usually ships in 3-6 days

0

9

Exmark 142-8631

ASM, BAGGER MOUNT W/ DECAL, RT

$453.99

$

Usually ships in 0 days

0

9:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

10

Exmark 142-8632

ASM, BAGGER MOUNT W/ DECAL, LT

$453.99

$

Usually ships in 0 days

0

10:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

11

Exmark 126-6386-03

MOUNT-BAGGER LWR

$186.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9266-03

BRACKET-UPPER, LH

$47.99

$

Usually ships in 3-6 days

0

13

Exmark 126-9265-03

BRACKET-UPPER, RH

$47.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Exmark AU426-556

BOLT

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

17

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-5896

SCREW HHF

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 126-8639

CASTER WEIGHT KIT

$699.99

$

Usually ships in 3-6 days

0

24

Exmark 146-2474

ASM, UV BLOWER

$2403.99

$

Usually ships in 0 days

0

25

Exmark 109-2043

LOWER TUBE ASM

$290.99

$

Usually ships in 3-6 days

0

25:1

Exmark 109-2038

Tube, Lower Short

$

$

Currently unavailable

25:2

Exmark 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$15.99

$

Usually ships in 3-6 days

0

25:3

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

25:4

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 109-2036

TUBE-UPPER

$313.99

$

Usually ships in 3-6 days

0

27

Exmark 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

28

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0
