142 - Husqvarna Chainsaw (2006-12) Chain Brake Parts Diagram

Chainsaw

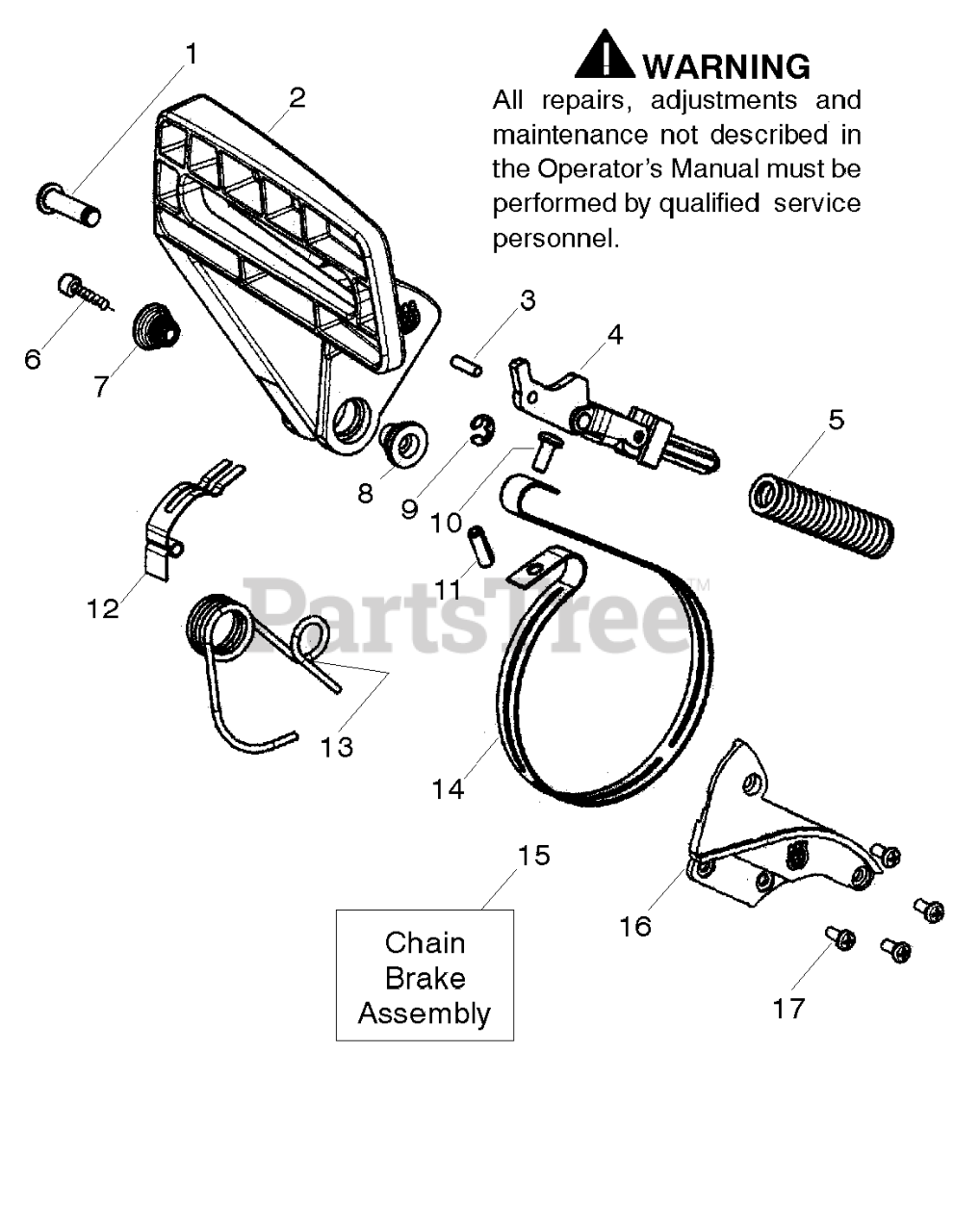

Chain Brake Parts Diagram

  • Title

1

Husqvarna 530029879

PIVOT PIN

$

$

Not available

2

Husqvarna 530071348

HANDGUARD

Note: (Incl. 4,14)

$

$

Not available

3

Husqvarna 530015915

PIN

$

$

Not available

4

Husqvarna 530054741

FRONT LINK ASSY

$

$

Not available

5

Husqvarna 530016237

%COMPRESSION SPRING
(Superseded to 545137301)

$

$

Not available

6

Husqvarna 530016384

SCREW

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 530056531

JOURNAL, RIGHT

$

$

Not available

8

Husqvarna 530029881

SHAFT PIVOT

$

$

Not available

9

Husqvarna 530024419

E-RING

$5.99

$

In Stock, Qty 9

0

10

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 530015913

PIN

$3.49

$

In Stock, Qty 12

0

12

Husqvarna 530029878

SPRING-POSITION

$5.99

$

In Stock, Qty 5

0

13

Husqvarna 530015910

SPRING,BRK HDL 36/41

$5.99

$

In Stock, Qty 12

0

14

Husqvarna 530052232

BRAKE BAND
(Superseded to 545137401)

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 530054802

CHAIN BRAKE ASM.

Note: (Incl. 1,2,3,4,5,6,7,8,9, 10,11,12,13,14,16,17,18,19,20,21)

$

$

Not available

16

Husqvarna 530053035

CHAIN BRAKE COVER

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 530015911

SCREW
(Superseded to 574780301)

$5.99

$

In Stock, only 1 left!

0

Husqvarna 545005218

DECAL

Note: Not Shown

$

$

Not available

Husqvarna 530031135

SCRENCH
(Superseded to 587417201)

Note: Not Shown

$9.99

$

In Stock, Qty 17

0

Husqvarna 530047839

DECAL

Note: Not Shown

$

$

Not available
