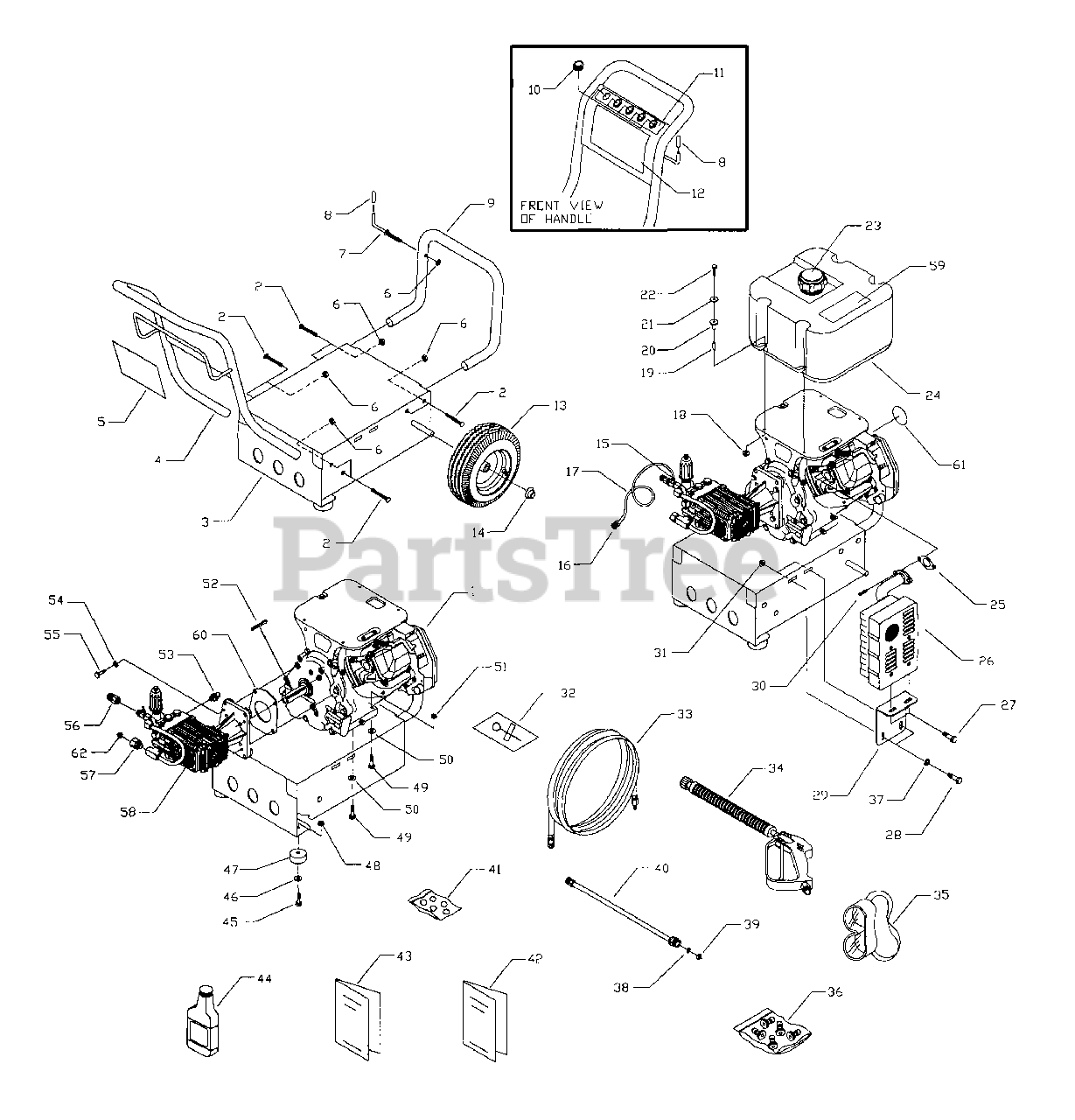

1421-1 - Craftsman 4,000 PSI Pressure Washer Main Unit Parts Diagram

4,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton B2043

BOLT, 5/16" - 18 x 1-3/4" Carriage
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton BB5205

BASE

$

$

Not available

4

Briggs & Stratton CB3861A

HANDLE

$

$

Not available

5

Briggs & Stratton 186490

DECAL, Instructions
(Superseded to 186490GS)

$18.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99583

NUT, 5/16"-18 Hex Flange, Lock
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2150

HOOK, 5/16" Square Neck Gun
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516

CAP, Black Vinyl .280"
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton CB4105

BUMPER
(Superseded to CB4105GS)

$56.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 30809

GROMMET, 1/8" - 11/16"
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4159

DECAL, 5 QD Nozzles
(Superseded to B4159GS)

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B5218

DECAL, Unit
(Superseded to B5218GS)

$19.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 88521

ASSEMBLY, Wheel 10" D x 4"
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75402

PUSHNUT, .50"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

15

Briggs & Stratton 48031G

CLAMP, Hose 7/16" D
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1040D

HOSE, 54" Chemical Inject
(Superseded to A1040DGS)

$12.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 77395

LOCKNUT, M6 Flange
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B2513

SLEEVE, Grommet Space

$

$

Not available

20

Briggs & Stratton B2465

BUSHING, Tank Mount
(Superseded to B2465GS)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B2495

WASHER, 25.4 x 8.45 x 1.4
(Superseded to B2495GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 38750

HHCS, M6 - 1.0 x 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 90878

CAP, Fuel Tank
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

24

Briggs & Stratton B2346

TANK, Fuel 2-Gal
(Superseded to B2346GS)

$

$

Not available

25

Briggs & Stratton 90239

GASKET, Muffler
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton A7433

MUFFLER
(Superseded to A7433GS)

$

$

Not available

27

Briggs & Stratton 66476

HHCS, M6 - 1.0 x 12 w/Lckwshr
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22287

HHCS, 1/4" - 20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186327

BRACKET, Muffler
(Superseded to 186327GS)

$14.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 95531

SHCS, 5/16"-24 x.75"
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2071

NUT, 1/4" - 20 Flange Lock
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B2509

KIT, Nozzle Cleaning

$

$

Currently unavailable

33

Briggs & Stratton B4805

HOSE, 3/8" x 50'
(Superseded to 205734GS)

$

$

Not available

34

Briggs & Stratton B1436B

GUN, with Molded Grip
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B4847

KIT, Nozzles QC
(Superseded to B4847GS)

$32.99

$

Usually ships in 2-12 days

0

37

22473

FLAT WASHER, 6mm D

$

$

Not available

38

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$1.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 97837

O-RING, Hi Pressure Transfer
(Superseded to 97837GS)

$3.49

$

In Stock, Qty 9

0

40

Briggs & Stratton B3858

ASSY., Wand Ext. with QD
(Superseded to 207784GS)

$38.99

$

In Stock, Qty 9

0

41

Briggs & Stratton B5830

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 186817

MANUAL, Owners

$

$

Not available

43

Briggs & Stratton A8927

MANUAL, Engine
(Superseded to A8927GS)

$14.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton BB3061B

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

45

Briggs & Stratton 42909

HHCS, M8 - 1.25 x 30
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 50190

FLAT WASHER, 10GA - 0.34" x 1"
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 27007

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

48

Briggs & Stratton 52858

NUT, M8 - 1.25, Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

49

Briggs & Stratton 57821

BOLT, M8 - 1.25 x 40 mm

$

$

Not available

50

Briggs & Stratton 22145

FLAT WASHER, 8mm D

$

$

Not available

51

Briggs & Stratton 67989

NUT, Locking M8 - 1.25
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

52

Briggs & Stratton 63281

KEY, 1/4" sq. x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

53

Briggs & Stratton B1554

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 22129

LOCKWASHER, 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 22147

HHCS, 5/16" - 24 x 1"
(Superseded to 22147GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 95458

CONNECTOR, Quick Connect

$

$

Not available

57

Briggs & Stratton 186839

CONNECTOR, Garden Hose
(Superseded to 186839GS)

$26.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 185806A

PUMP

Note: (See "Pump" & "Unloader" illustration and parts lists)

$

$

Not available

59

Briggs & Stratton 21786

DECAL, Danger
(Superseded to 21786GS)

$13.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B186659

PLATE, Spacer

$

$

Not available

61

Briggs & Stratton 91682G

DECAL, Recoil - 15 HP
(Superseded to 91682GGS)

$12.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B2384

FILTER, Washer
(Superseded to B2384GS)

$4.49

$

In Stock, only 3 left!

0
