1421 (1690798) - Simplicity Walk-Behind Mower Drive Group Parts Diagram

Walk-Behind Mower

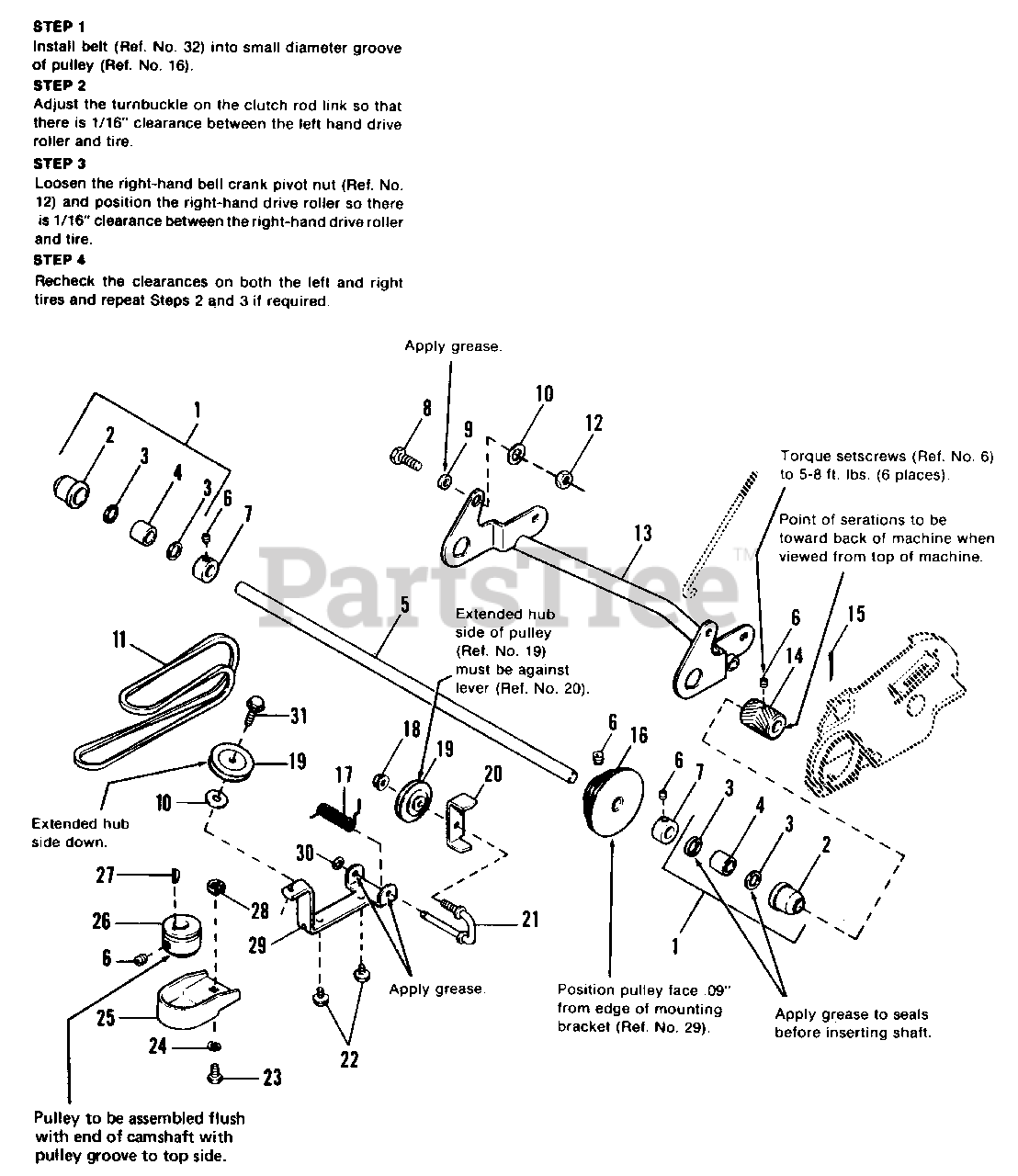

Drive Group Parts Diagram

  • Title

1

Simplicity 108667

BEARING & RETAINER ASSY.

Note: Ref. No. 1 includes Ref. Nos. 2, 3 & 4.

$

$

Not available

2

RETAINER (only Ref. No. 1)

$

$

Not available

3

Simplicity 108696

SEAL, Grease

$

$

Not available

4

Simplicity 108654

BEARING

$

$

Not available

5

Simplicity 108666

SHAFT, Driver

$

$

Not available

6

Simplicity 2828734

SCREW, Set

$

$

Not available

7

Simplicity 1729282SM

COLLAR, Set

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 2106772

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

9

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 2817377

WASHER, Plain, 5/16

$

$

Not available

11

Simplicity 1657284SM

BELT

$23.99

$

Usually ships in 2-12 days

0

12

Simplicity 1927557SM

NUT, Hex, 5/16-18 Lock

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1657259

BELLCRANK ASSY.

$

$

Not available

14

Simplicity 108664

DRIVER, Wheel

$

$

Not available

15

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

16

Simplicity 1657180

PULLEY, Driven

$

$

Not available

17

Simplicity 2108729SM

SPRING, ldler

$17.99

$

Usually ships in 2-12 days

0

18

Simplicity 2830642

LOCKNUT, Flange, 1/4-20

$

$

Not available

19

Simplicity 2108730SM

PULLEY ASSY.

$24.99

$

Usually ships in 2-12 days

0

20

Simplicity 1657175

LEVER

$

$

Not available

21

Simplicity 108693

U-BOLT

$

$

Not available

22

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 12

$

$

Not available

23

Simplicity 1921959SM

CAPSCREW, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

25

Simplicity 1657181

COVER, Pulley

$

$

Not available

26

Simplicity 1657515

PULLEY, Engine

$

$

Not available

27

Simplicity 2818945

KEY, Woodruff, #5

$

$

Not available

28

Simplicity 2817867

NUT, Tinnerman, 1/4-20

$

$

Not available

29

Simplicity 1667502

BRACKET, Idler Support

$

$

Not available

30

Simplicity 108698

RING, Retaining

$

$

Not available

31

Simplicity 2829783

SCREW, Taptite, 1/4-20 x 1

$

$

Not available
