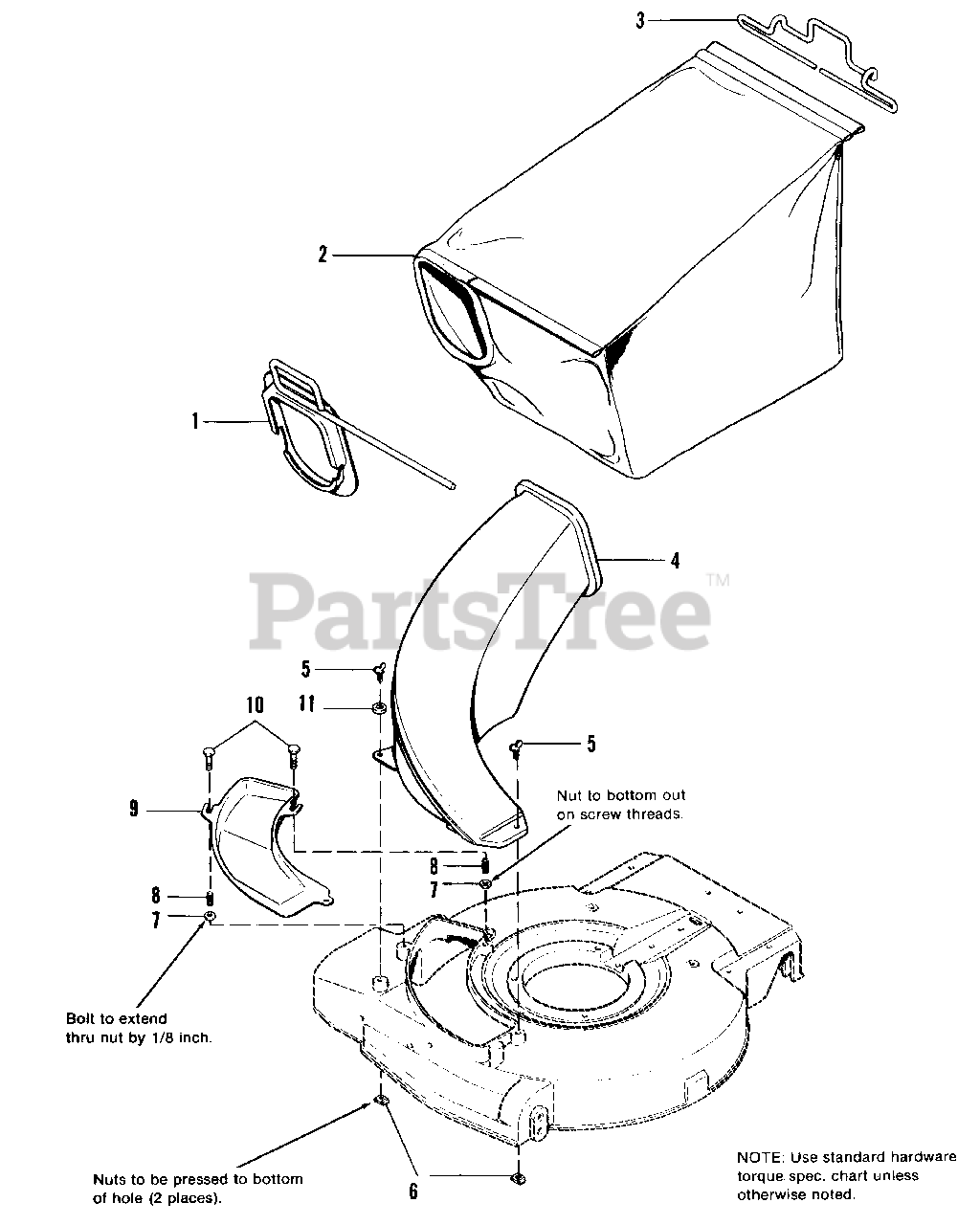

1421 (1691100) - Simplicity Walk-Behind Mower Grass Bag & Chute Group Parts Diagram

Walk-Behind Mower

Grass Bag & Chute Group Parts Diagram

  • Title

1

Simplicity 1666587

COLLAR ASSY.

$

$

Not available

2

Simplicity 1666605

BAG, Grass

$

$

Not available

3

Simplicity 1657152

SUPPORT, Bag Rear

$

$

Not available

4

Simplicity 1667082

CHUTE ASSY., Grass (use on 1690795)

$

$

Not available

4

Simplicity 1677922

CHUTE ASSY., Grass (use on 1691100)

$

$

Not available

5

Simplicity 1921959SM

SCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 2817867

NUT, Tinnerman, 1/4-20

$

$

Not available

7

Simplicity 2823358

LOCKNUT, Hex 1/4-20

$

$

Not available

8

Simplicity 171651

SPRING

$

$

Not available

9

Simplicity 171645

PLATE, Cover

$

$

Not available

10

Simplicity 2172429

SCREW, 1/4-20 x 1

$

$

Not available

11

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0
