143.716072 - Craftsman Engine, Made by Tecumseh Engine Parts List #2 Parts Diagram

Engine, Made by Tecumseh

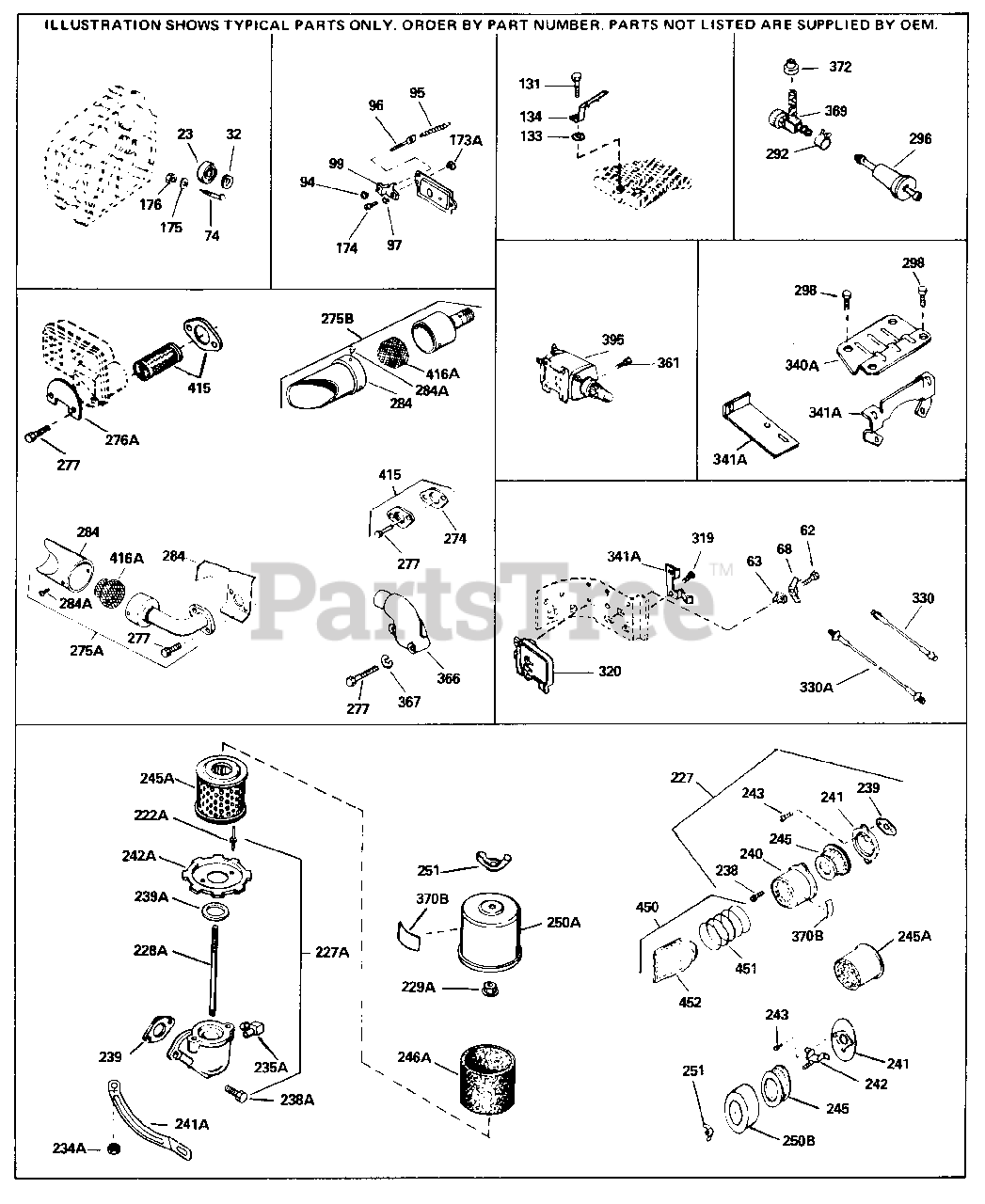

Engine Parts List #2 Parts Diagram

  • Title
62

Tecumseh 650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

63

Tecumseh 28545

Breather Tube Grommet

$1.99

$

In Stock, Qty 5

0

68

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 5

0

74

Tecumseh 31855

Retainer, Bearing

$7.49

$

Usually ships in 3-12 days

0

94

Tecumseh 33450

Nut Lock, 10-32
(Superseded to 651016)

$1.99

$

Usually ships in 3-12 days

0

95

Tecumseh 30886A

Spring, Extension

$3.99

$

Usually ships in 3-12 days

0

96

Tecumseh 30845A

Bolt, Governor spring adjusting

$7.49

$

Usually ships in 3-12 days

0

97

Lockwasher, Heavy split, #10 Buy loc ally

$

$

Not available

131

Tecumseh 650737

Screw, 1/4-20 x 1/2" Use as required

$1.99

$

In Stock, Qty 9

0

131

Tecumseh 650738

Screw, 1/4-20 x 5/8" Use as required

$3.99

$

Usually ships in 3-12 days

0

131

Tecumseh 650802

Screw, 1/4-20 x 5/8" Use as required

$1.99

$

In Stock, only 2 left!

0

133

Tecumseh 650890

Washer, Lock, 5/16"

$1.99

$

In Stock, only 2 left!

0

134

Tecumseh 30747

Clip, Spark plug shorting

$6.99

$

In Stock, only 4 left!

0

174

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 3 left!

0

174

Tecumseh 650597

Screw, 10-24 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

227

Tecumseh 730127

Air Cleaner Ass'y. (Incl. 238,239,240 ,241,243,245 & 370) (Use as required)

$46.99

$

In Stock, Qty 9

0

227

Tecumseh 730164

Air Cleaner Ass'y. (Incl. 238, 239, 2 40, 241, 243 & 245) (Use as required)

$57.99

$

In Stock, only 3 left!

0

228A

Tecumseh 650824

Stud, 1/4-20 x 7.33 (Use as required)

$

$

Not available

228A

Tecumseh 650851

Stud, 1/4-20 x 8.1 (Use as required) (Used with drilled thru elbow)

$5.49

$

Usually ships in 3-12 days

0

239

Tecumseh 27272A

* Gasket, Air cleaner

$4.49

$

In Stock, Qty 20+

0

239

Tecumseh 27272A

* Gasket, Air cleaner

$4.49

$

In Stock, Qty 20+

0

241

Tecumseh 33266

Bracket, Air cleaner

$9.49

$

Usually ships in 3-12 days

0

242

Tecumseh 33267

Bracket, Air cleaner

$7.49

$

In Stock, Qty 5

0

243

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, Qty 12

0

245A

Tecumseh 34700

Air Filter
(Superseded to 34700B)

$24.99

$

In Stock, Qty 6

0

245

Tecumseh 33268

Air Filter (Paper) also available in Packaged Part #740027B

$13.99

$

In Stock, Qty 9

0

250B

Tecumseh 33269A

Cover, Air cleaner

$19.99

$

In Stock, only 2 left!

0

251

Tecumseh 650513

Nut, Wing, 1/2-20
(Superseded to 650825)

$1.99

$

In Stock, Qty 10

0

274

Tecumseh 35865

Gasket, Exhaust (Use as required)

$2.49

$

In Stock, Qty 20+

0

275C

Tecumseh 35824

Muffler (Optional quiet muffler)

$123.99

$

Usually ships in 3-12 days

0

275B

Tecumseh 391026

Muffler (Incl. 284, 284A & 416A) (Thi s spark arresting muffler can be used on any model.)
(Superseded to 36248)

$76.99

$

In Stock, only 1 left!

0

276A

Tecumseh 34479A

Spark Arrester Kit (Incl. 277A) (Also as an optional part)

$32.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650729

Screw, 5/16-18 x 3-3/16"

$1.99

$

In Stock, Qty 5

0

277A

Tecumseh 650696

Screw, 5/16-18x2-3/4" Used with 276A

$3.99

$

In Stock, only 2 left!

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw, 1/4-15 x 7/8"

$1.99

$

In Stock, only 4 left!

0

361

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

370J

Tecumseh 34870

Decal, Instruction Can be used on HM8 0 with diecast starter.

$

$

Currently unavailable

370B

Tecumseh 34387

Decal, Instruction Can be used on HM8 0 with stamped steel recoil starter.

$2.49

$

In Stock, only 1 left!

0

395

Tecumseh 33329D

Starter Motor Kit (110-120 Volt) This 110-120 volt starter motor kit may h ave been added to this engine. It can be added only if cylinder hasdrilled and tapped starter mounting bosses a nd a ring gear flywheel. Refer to se rvice number stamped on e
(Superseded to 33329E)

$

$

Not available

395

Tecumseh 35763A

Electric Starter Motor (12 Volt) (Inc l. 361) (Refer to service number stam ped on end cap of motor, or on decal for identification. Refer to Divisio n 5, Section D, Page 20 for breakdown or Fiche 18A-1, Grids G-9, G-10 or G -11)
(Superseded to 36680)

$249.99

$

In Stock, only 1 left!

0

408

Tecumseh 35570

Screen Seal Can be used on HM80 with stamped steel recoil starter

$

$

Not available

409

Tecumseh 35569

Spacer Can be used on HM80 with stamp ed steel recoil starter

$7.49

$

Usually ships in 3-12 days

0

410

Tecumseh 730573

Debris Screen Kit (Incl. 360, 370B, 3 87, 411 &413) (Can be used on HM80 wi th stamped steel recoil starter)

$

$

Not available

411

Tecumseh 35568

Debris Screen Can be used on HM80 wit h stamped steel recoil starter

$

$

Not available

413

Tecumseh 650907

Screw, 5/16-18 x 1-5/8" Can be used o n HM80 with stamped steel recoil star ter

$

$

Not available

415

Tecumseh 730130

Exh.Adapter Kit (Incl. 274,277) Use a s req.

$

$

Not available

425

Tecumseh 730572

Starter Muff Kit (Incl. 370J, 426 & 4 27) (Can be used on HM80 with di e cast starter)

$

$

Not available

429

Tecumseh 650868

Screw, 8-18 x 1-1/8" (3 Required) (Us e as required) (Refer to Mechanics Ha ndbook for installation instructions) .

$

$

Currently unavailable

430

Tecumseh 611077

Alternator, Add on (Use as required) (Refer to Mechanics Handbook for inst allation instructions).

$

$

Not available

431

Tecumseh 590609

Centering tube (Use with engines equi pped with die cast aluminum starter)( Use as required) (Refer to Mechanics Handbook for installation instruction s)

$

$

Currently unavailable

431

Tecumseh 590610

Centering tube (Use as required) (Ref er to Mechanics Handbook for installa tion instructions).

$

$

Not available

432

Tecumseh 611078

A.C. Lighting Connector (Use as requi red) (Refer to Mechanics Handbook for installation instructions).

$

$

Currently unavailable

432

Tecumseh 611079

D.C. Charging Connector (Use as requi red) (Refer to Mechanics Handbook for installation instructions).

$

$

Currently unavailable

433

Tecumseh 590611

Alternator Shaft (4.00") (Use with en gines equipped with cast aluminum sta rter)(Use as required) (Refer to Mech anics Handbook for installation instr uctions).

$

$

Not available

433

Tecumseh 590636

Alternator Shaft (Use with engines e quipped with stamped steel starter)(U se as required) (Refer to Mechanics H andbook for installation instructions ).

$

$

Currently unavailable
