1430-1 - Craftsman 2,100 PSI Pressure Washer Main Unit (187339) Parts Diagram

2,100 PSI Pressure Washer

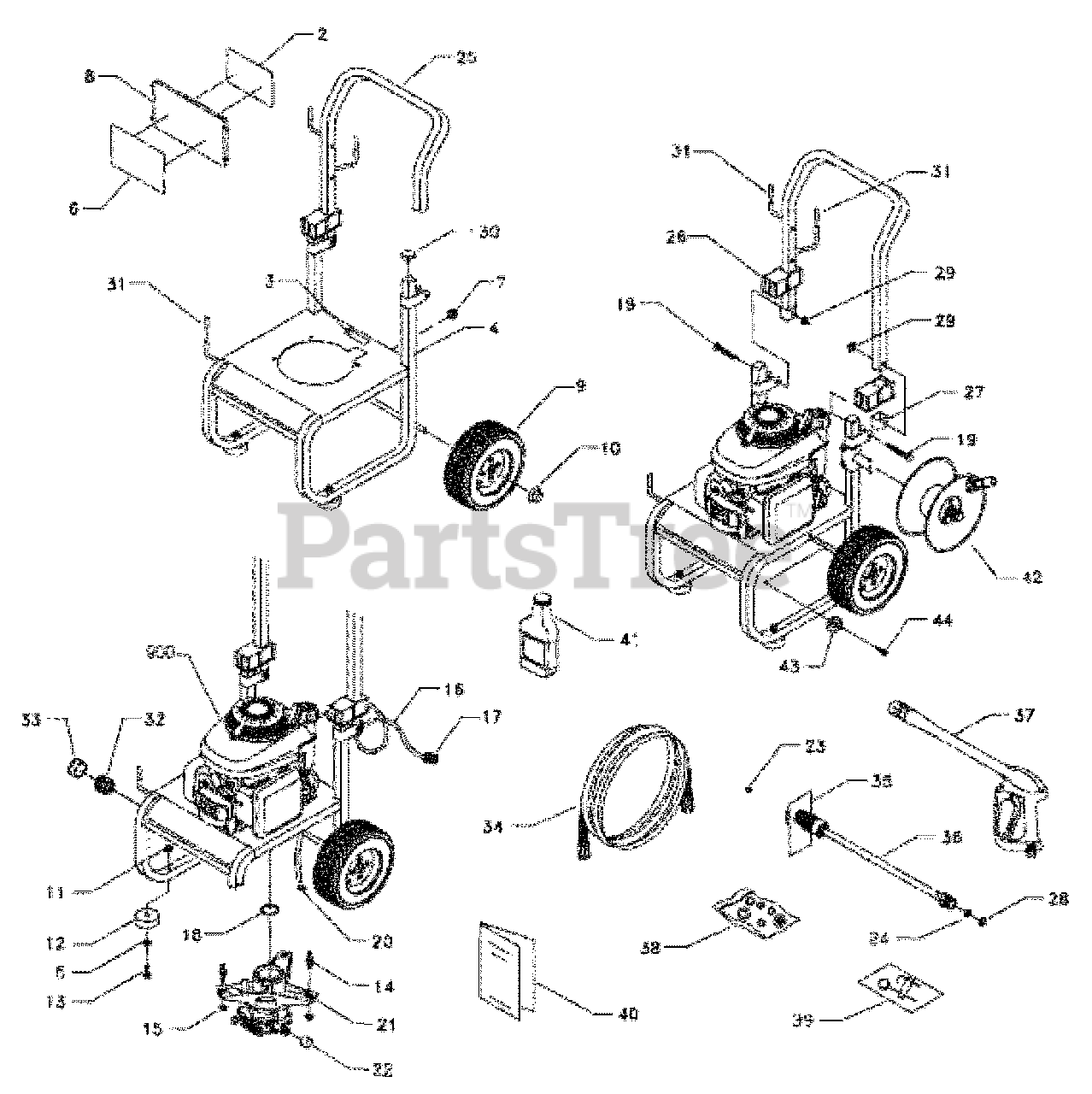

Main Unit (187339) Parts Diagram

  • Title
2

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton EB5654

BASE, Polo Green
(Superseded to EB5654GS)

$125.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 50190

WASHER, Flat, .34" x 1"
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton B5669

DECAL, Unit 1431-0
(Superseded to B5669GS)

$17.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 30809

GROMMET, Chemical Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1631B

BILLBOARD
(Superseded to B1631BGS)

$29.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4966

TIRE, 10"
(Superseded to 209636GS)

$93.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 75402C

PUSHNUT, 5/8"
(Superseded to 75402CGS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 27007

MOUNT, Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

13

Briggs & Stratton 51731

HHCS, M8 - 1.25 x 50

$

$

Not available

14

Briggs & Stratton B1735

STUD, Double Ended
(Superseded to B1735GS)

$

$

Not available

15

Briggs & Stratton B1880

NUT, with Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B2218

O-RING, 1.625" ID x .103"
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 31669

CARRIAGE BOLT, 1/4" - 20 x 1-3/4"
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 48031G

CLAMP, Hose
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5685B

ASSY., Pump EG w/Thermal
(Superseded to 209940GS)

$

$

Not available

22

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 94804

NOZZLE, Replacement
(Superseded to 94804GS)

$9.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$

$

Not available

25

Briggs & Stratton EB5653

HANDLE, Polo Green
(Superseded to EB5653GS)

$76.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2347

CAP, End
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97837

O-RING, Hi Pressure Trns.
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2071

NUT, 1/4"-20 Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 46476

CAP, Plug
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2516

CAP, Vinyl
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton A1408

CAP, Hose Connector
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B5693

HOSE, 1/4" x 25'
(Superseded to 708962)

$59.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 97566

TAG, Nozzle Instructions
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3335A

WAND, Adjustable Nozzle
(Superseded to 188792AGS)

$67.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 8

0

38

Briggs & Stratton B5830

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

39

Briggs & Stratton B3708

KIT, Nozzle, Cleaning

$

$

Currently unavailable

40

Briggs & Stratton B5657

MANUAL
(Superseded to B5657GS)

$14.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton AB3061B

OIL, Engine
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton B4992

REEL, Hose
(Superseded to B4992GS)

$74.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B2427B

CLIP, Holder
(Superseded to B2427BGS)

$9.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B2153

SELF DRILLER, 12 - 14 x 7/8"
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

900

-----

* ENGINE, Honda 4.5 HP

$

$

Not available
