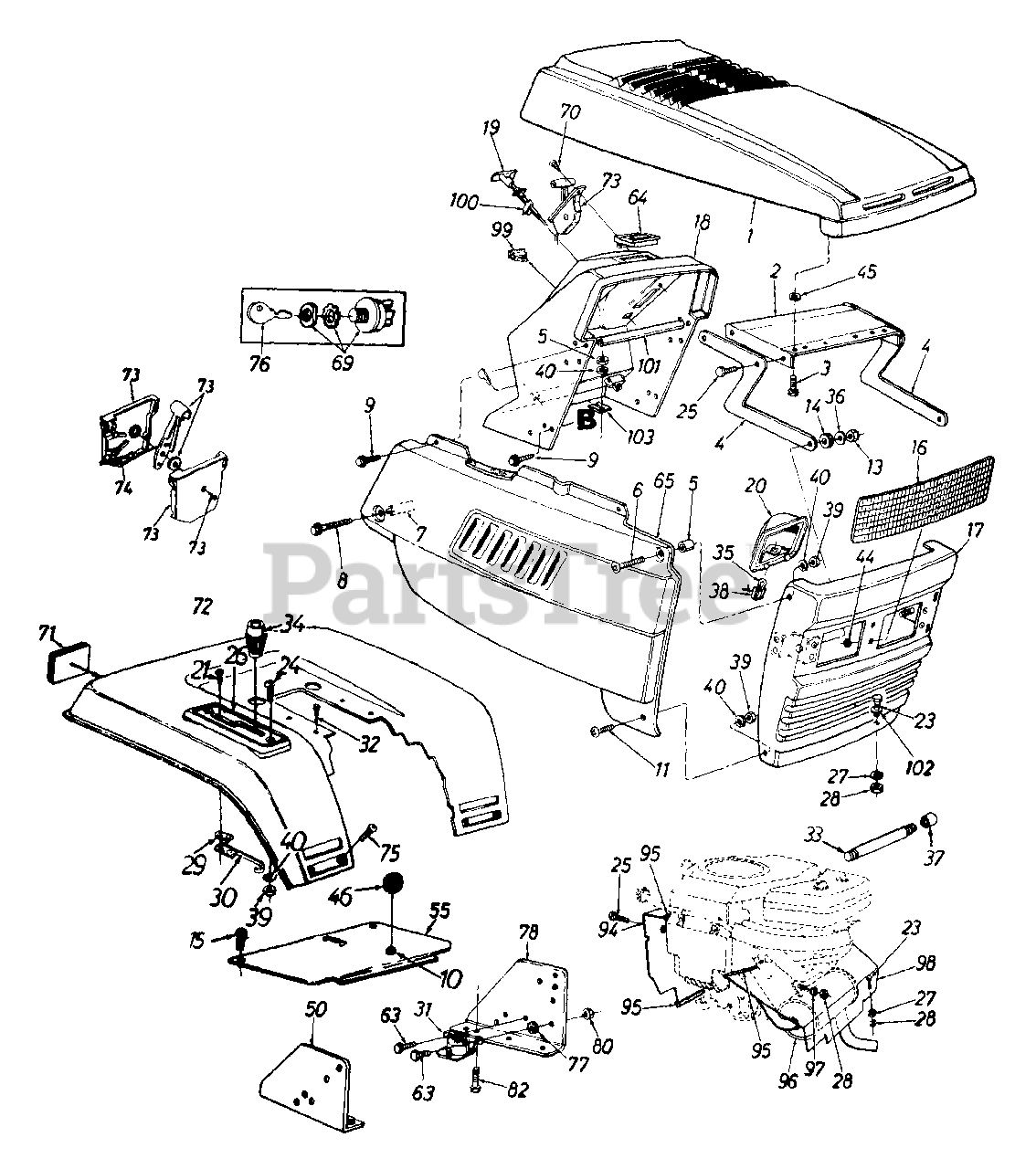

143Y839H019 - Turf Power Garden Tractor (1993) (Agway) Hood Style 9 Parts Diagram

Garden Tractor

Hood Style 9 Parts Diagram

  • Title

1

MTD 731-1054A

Hood

Variations

MTD 731-1054A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 731-1054A-0638

HOOD-9STY RED - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 731-1054A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 731-1054A-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 731-1054A-0606

No Longer Available HOOD - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 731-1054A-0660

No Longer Available HOOD - TEAL (0660)

$

$

Not available

MTD 731-1054A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

2

MTD 16903A

Hood Plate

Variations

MTD 16903A-0637

Hood Plate - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-1005

Hex Wash. Hd. Tap Scr. 1/4 x .5" Lg.
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

4

MTD 17273

Hood Hinge

$

$

Not available

5

MTD 750-0287

Spacer .34" I.D. x .437"

$

$

Currently unavailable

6

MTD 710-0166

Truss Hd. Mach. Scr. 1/4-20 Thd.
(Superseded to 710-0166A)

$6.99

$

In Stock, only 1 left!

0

7

MTD 750-0583

Spacer .26" I.D. x .375"

$

$

Not available

8

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.49

$

In Stock, Qty 20+

0

9

MTD 710-0642

Hex T-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-0405

Snap Bushing

$

$

Not available

11

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

?12

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

13

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

14

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

15

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

16

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

17

MTD 17410

Grille Ass'y.

Variations

MTD 17410-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17410-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17410-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17410-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17410-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410-0667

No Longer Available GRILLE ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17410-0668

No Longer Available GRILLE ASM - MOSS GREEN (0668)

$

$

Not available

MTD 17410-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410-0674

No Longer Available GRILLE ASM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17410-0677

No Longer Available GRILLE ASM - GRASS GREEN (0677)

$

$

Not available

MTD 17410-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

MTD 17410-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

18

MTD 731-1047A

Dash Ass'y.

Note: New Part

$

$

Not available

19

MTD 746-0614A

Choke Control

$22.99

$

In Stock, Qty 11

0

20

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

21

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1" Lg.
(Superseded to 710-0166A)

$6.99

$

In Stock, only 1 left!

0

25

MTD 710-0599

Hex Wash. Hd. Scr. 1/4" x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-1053A

Index Brkt.
(Superseded to 931-1734)

$

$

Not available

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 10

0

30

MTD 725-1643

Reverse Safety Switch

$9.99

$

In Stock, only 1 left!

0

31

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

32

MTD 710-0726

Hex Nd. Rolling Scr. 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

33

MTD 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

34

MTD 720-0218

Shift Knob

$18.99

$

In Stock, only 1 left!

0

35

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

36

MTD 736-0242

Bell-Wash..34" I.D. x .87"

$3.99

$

In Stock, Qty 20+

0

37

MTD 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

38

MTD 725-1650

Socket
(Superseded to 925-1650)

$12.99

$

Usually ships in 3-6 days

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

44

MTD 726-0201

Speed Nut 5/16" I.D.

$6.49

$

In Stock, Qty 20+

0

45

MTD 736-3010

Fl-Wash..406" I.D.

$4.49

$

In Stock, Qty 19

0

46

MTD 720-0166

Ball Knob

$

$

Not available

50

MTD 17293B

Dash Support Brkt.- R H.
(Superseded to 17293B-0637)

Variations

MTD 17293B-0637

BRACKET-DASH SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 17391A

Transmission Cover

$

$

Not available

63

MTD 710-0289

Hex Bolt 1/4-20 x 5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

64

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 1 left!

0

65

MTD 17458A

Side Panel Ass'y.- R.H.
(Superseded to 16725)

Variations

MTD 17458A-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 17458A-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 17459A

Side Panel Ass'y.- L.H.
(Superseded to 17309B)

Variations

MTD 17459A-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17459A-0499

No Longer Available PANEL - CUB BEIGE (0499)

$

$

Not available

MTD 17459A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17459A-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17459A-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17459A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17459A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17459A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17459A-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17459A-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

69

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

70

MTD 710-0779A

Truss Mach. AB-Tap Scr. 010 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

71

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$16.99

$

In Stock, only 3 left!

0

72

MTD 17330A

Rear Fender

Variations

MTD 17330A-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17330A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17330A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17330A-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17330A-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17330A-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17330A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

73

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

74

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$10.99

$

In Stock, Qty 10

0

75

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

76

MTD 725-0201

Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 13

0

77

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

78

MTD 17294B

Dash Support Brkt.- L.H.
(Superseded to 17294B-0637)

Variations

MTD 17294B-0637

BRACKET-DASH SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

80

UNKNOWN

$

$

Not available

82

UNKNOWN

$

$

Not available

94

MTD 16989A

Engine Baffle

$

$

Currently unavailable

95

MTD 731-0511-12

Trim Strip 10" Lg.

$20.99

$

Usually ships in 3-6 days

0

96

MTD 751-0474

Muffler

$

$

Not available

97

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

98

MTD 16934

Front Heat Shield

$

$

Not available

99

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

100

MTD 17782

Retainer Clip

$4.99

$

In Stock, only 3 left!

0

101

MTD 749-0814

Dash Support Tube

$

$

Not available

102

MTD 736-3078

Fl-Wash..344" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 15

0

103

MTD 783-0013

Dash Panel Fastening Tab

$

$

Not available
