1440-0 - Generac 2,400 PSI Pressure Washer Main Unit Parts Diagram

2,400 PSI Pressure Washer

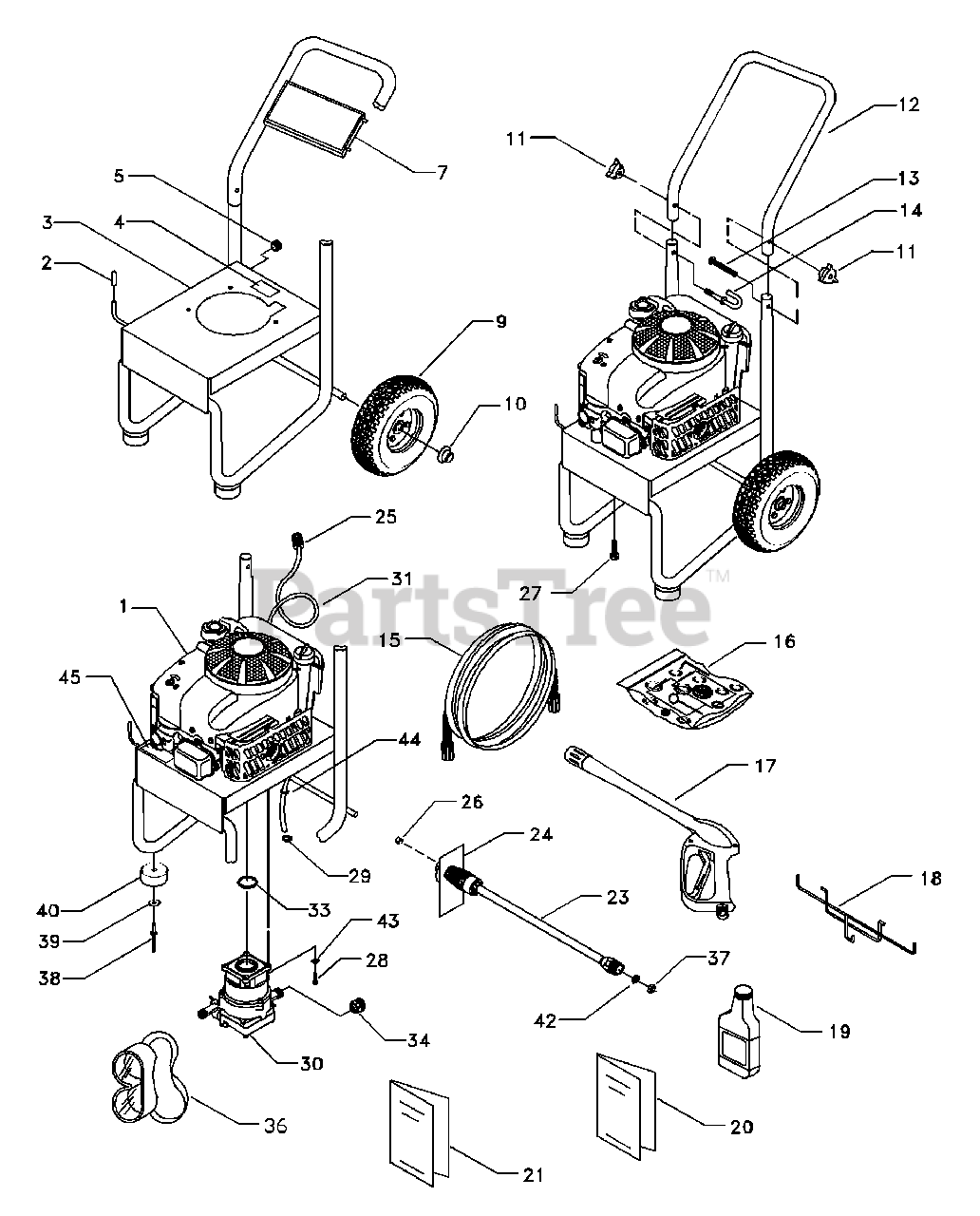

Main Unit Parts Diagram

  • Title

1

-----

ENGINE

$

$

Not available

2

Briggs & Stratton B1460GS

CAP, Vinyl Black

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton AB5737GS

BASE, Powder Coat Red

$133.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 20566GS

DECAL, 1-800 Number

$1.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 30809GS

GROMMET, Chem Hose

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 191050GS

BILLBOARD, Assembly, 01440

$28.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4966GS

WHEEL
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

10

Briggs & Stratton 190147GS

PUSHNUT
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

11

Briggs & Stratton 97178GS

KNOB, PW Handle

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton AB1945GS

HANDLE, Powder Coat Red

$76.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 31669GS

BOLT, Carriage

$3.49

$

In Stock, only 2 left!

0

14

Briggs & Stratton B1730GS

BOLT, Eye

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B5642GS

HOSE

$

$

Not available

16

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton B1953AGS

WIREFORM

$30.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton BB3061BGS

OIL, 20oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

20

Briggs & Stratton B5740GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5765GS

MANUAL, B & S Engine

$14.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B3335GS

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

24

Briggs & Stratton 97566GS

HANG TAG, Nozzle

$1.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 21761GS

NOZZLE, Yellow Rplcemt

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 75246GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 23707GS

CAPSCREW, Socket Head

$3.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

30

-----

PUMP, Assembly

Note: (For replacement, order 193461GS)

$

$

Not available

30

Briggs & Stratton 193461GS

REPLACEMENT PUMP ASSEMBLY

$371.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton A1040BGS

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton B2218GS

O-RING

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 21424GS

CONNECTOR, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 87815GS

GLASSES, Safety

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 97837GS

O-RING, Hi-Pressure

$3.49

$

In Stock, Qty 9

0

38

Briggs & Stratton 188194GS

RIVET, Blind

$1.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 71693GS

WASHER, Fender

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 27007GS

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

42

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 92479GS

WASHER, Conical Ribbed

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 187952GS

DECAL, Cool Down

$8.49

$

Usually ships in 2-12 days

0
