1440 (145-633-100) - Cub Cadet Garden Tractor (SN: 821060 - 880000) Implement Lift Handle & Lift Assist Spring Parts Diagram

Garden Tractor

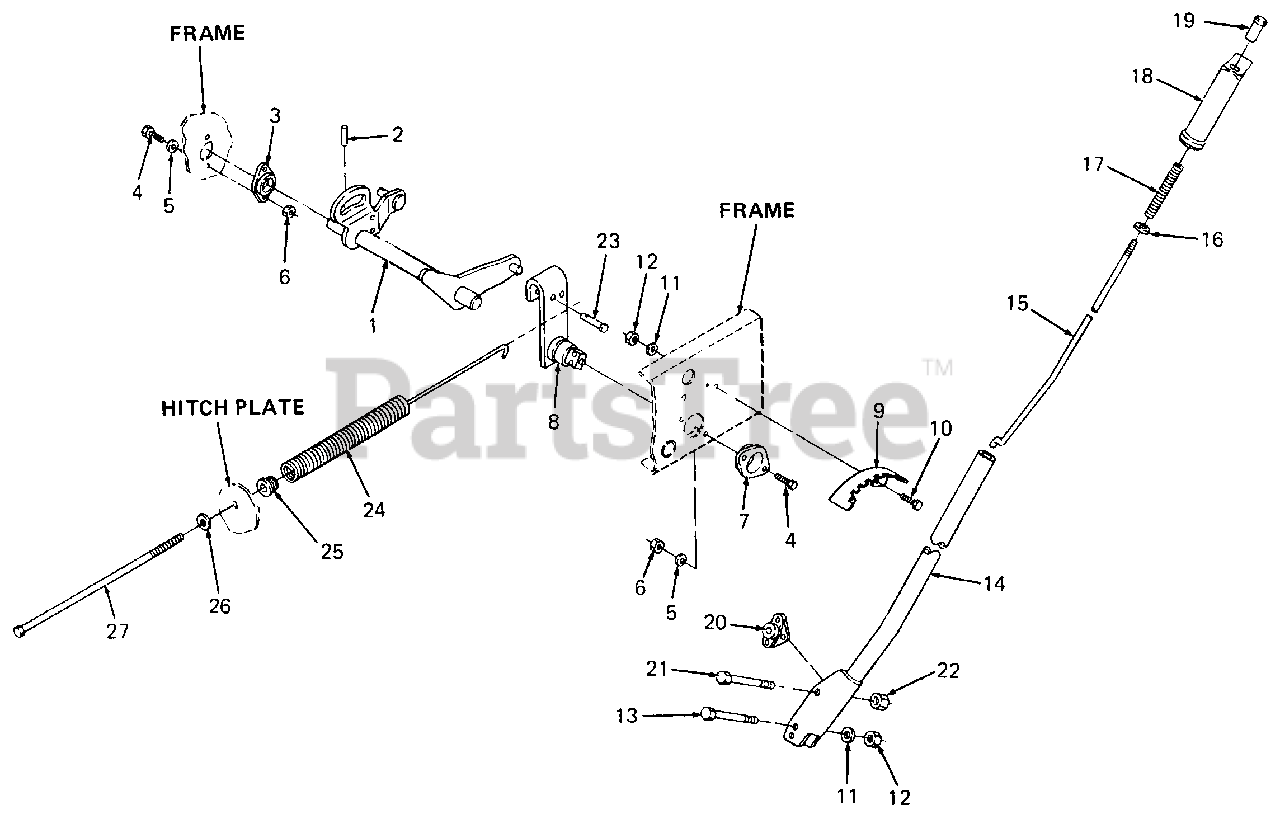

Implement Lift Handle & Lift Assist Spring Parts Diagram

  • Title

1

Cub Cadet 703-2001

Shaft Assy, Lift

Variations

Cub Cadet 703-2001-0498

LIFT SHAFT ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$8.49

$

In Stock, Qty 9

0

3

Cub Cadet 748-3041

Bushing, Lift, LH

$

$

Not available

4

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

6

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 748-3040

Bushing, Lift, RH

$

$

Not available

8

Cub Cadet 703-2006

Bracket Assy, Lift

$

$

Not available

Cub Cadet 737-3000

Lube, Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 703-1577

Bracket, Lift Indicator
(Superseded to 703-1577-0498)

Variations

Cub Cadet 703-1577-0498

BRACKET-LIFT HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 779-3570

Graphic, Height Indicator

$

$

Not available

10

Cub Cadet 710-0759

Screw, Hex Cap, 5/16-18 X .62 Lg

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 X 1.75 Lg GR5

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 603-0022

Handle, Lift

Variations

Cub Cadet 603-0022-0498

HANDLE-GT LIFT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

15

Cub Cadet 747-3161

Rod, Index

$

$

Not available

16

Cub Cadet 736-3090

Washer, Flat, .260 X .720 X .06 Thk

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet 732-3005

Spring, Lift Handle
(Superseded to 932-3005)

$8.99

$

In Stock, only 4 left!

0

18

Cub Cadet 731-3109

Grip, Lift Handle

$

$

Not available

19

Cub Cadet 711-0642A

Button, Handle

$7.49

$

In Stock, Qty 20+

0

20

Cub Cadet 759-3495

Kit, Index Pawl

$

$

Not available

21

Cub Cadet 710-3191A

Screw, Hex, 3/8-24 X 1.62 Lg

$

$

Not available

22

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 711-0510

Pin, Clevis, 1/2 Dia X 2.19 Lg

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0108

Washer, Flat, .510 X .75 X .033 Thk

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 714-3011

Pin, Cotter, 1/8 Dia X .87 Lg

$

$

Not available

24

Cub Cadet 732-3072

Spring, Lift Assist, 1.03 ID X 17.0 Lg

$

$

Not available

25

Cub Cadet 711-0635

Insert, Spring

$41.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0140

Washer, Flat, .385 X .62 X .063 Thk

$6.99

$

In Stock, Qty 9

0

27

Cub Cadet 710-3241

Screw, Hex Cap, 3/8-16 X 13.0 Lg

$

$

Not available
