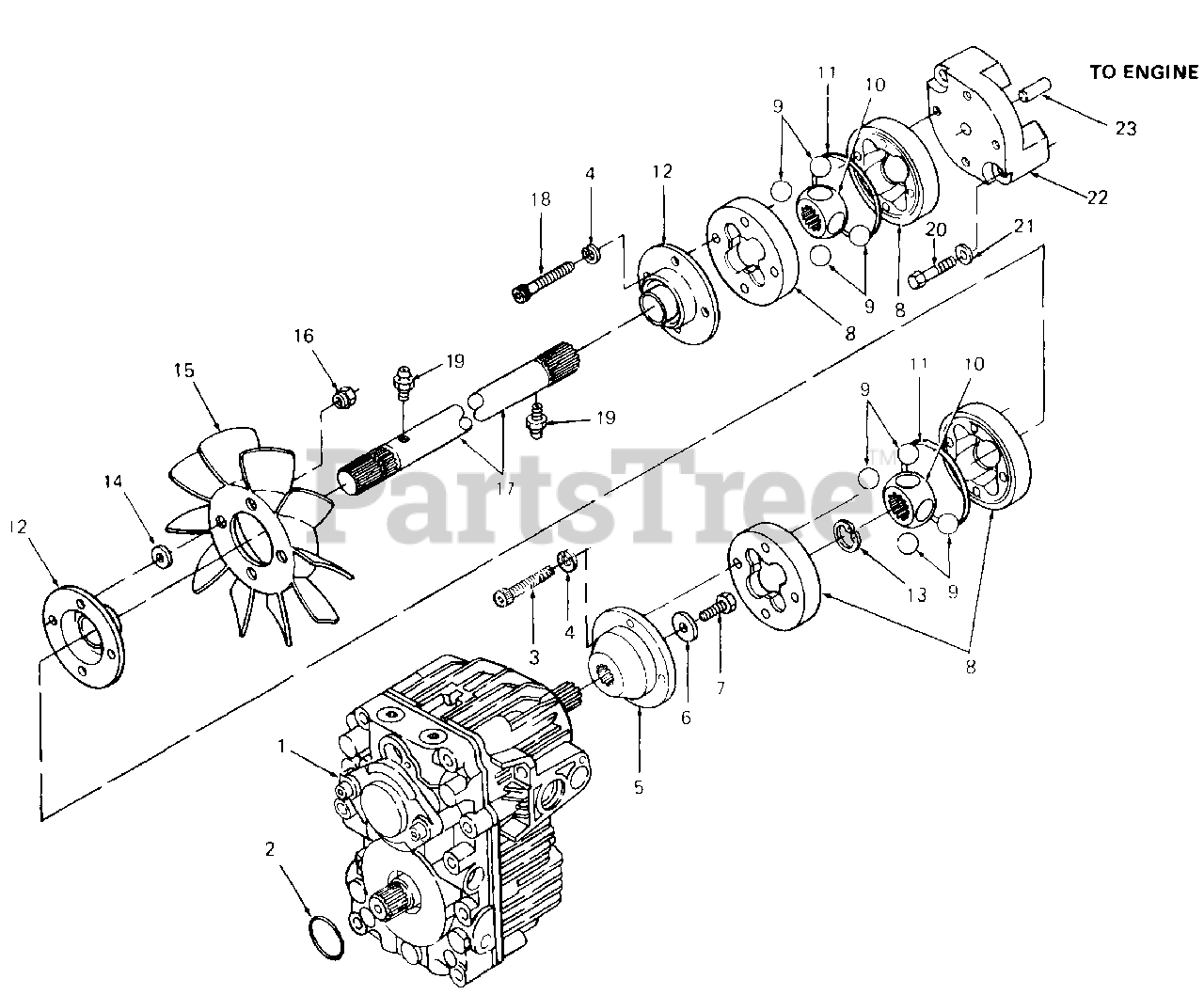

1440 (14A-663-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Drive Line Parts Diagram

Garden Tractor

Drive Line Parts Diagram

  • Title

1

Cub Cadet 717-3369

Pump, Hydrostatic

Note: For components see listing of parts under details of hydrostatic pump.

$

$

Not available

Cub Cadet 710-3226

Bolt, Hex Patch, 5/16-18 X 5.5 Lg GR5

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3227

Bolt, Hex Patch, 5/16-18 X 3.0 Lg GR5

$

$

Not available

2

Cub Cadet 721-0261

O-Ring, 2.75 ID X .103 Dia

$10.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-3212

Screw, Socket Hd Cap, 1/4-20 X 2.0 Lg

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

5

Cub Cadet 748-3042

Adapter, Pump

$

$

Not available

6

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3237

Bolt, Hex Patch, M6-1.0 X 20 MM Lg GR10.9

$

$

Not available

8

Cub Cadet 748-3030A

Coupling, Drive w/0-Ring Groove

$

$

Not available

9

Cub Cadet 723-3022

Ball, Steel, 5/8 Dia Chrome

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 748-3044

Hub, Drive
(Superseded to 948-3044)

$

$

Not available

11

Cub Cadet 721-3025

O-Ring, 2.489 X .070

$

$

Not available

12

Cub Cadet 735-3029

Boot, Coupling

$

$

Not available

Cub Cadet 737-3023

Grease, CV Polyrex

$

$

Currently unavailable

13

Cub Cadet 716-0171

Ring, Snap
(Superseded to 916-0171)

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0463

Washer, Flat, .25 X .62 X .052 Thk

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-3095

Fan, 10 Blade Hydro
(Superseded to 931-3095)

$30.99

$

In Stock, Qty 7

0

16

Cub Cadet 748-3037

Nut, Fan, 1/4-20
(Superseded to 948-3037)

$

$

Not available

17

Cub Cadet 738-3097

Shaft, Drive, 21.3 Lg

$360.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3211

Screw, Socket Hd Cap, 1/4-20 X 1.75 Lg

$5.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 X 1.75 Lg GR5

$5.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3008

Washer, Flat, .312 X .750 X .119 Thk
(Superseded to 936-3008)

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 2 left!

0

23

Cub Cadet 711-3330

Pin, Locating

$

$

Not available

$

$

Not available
