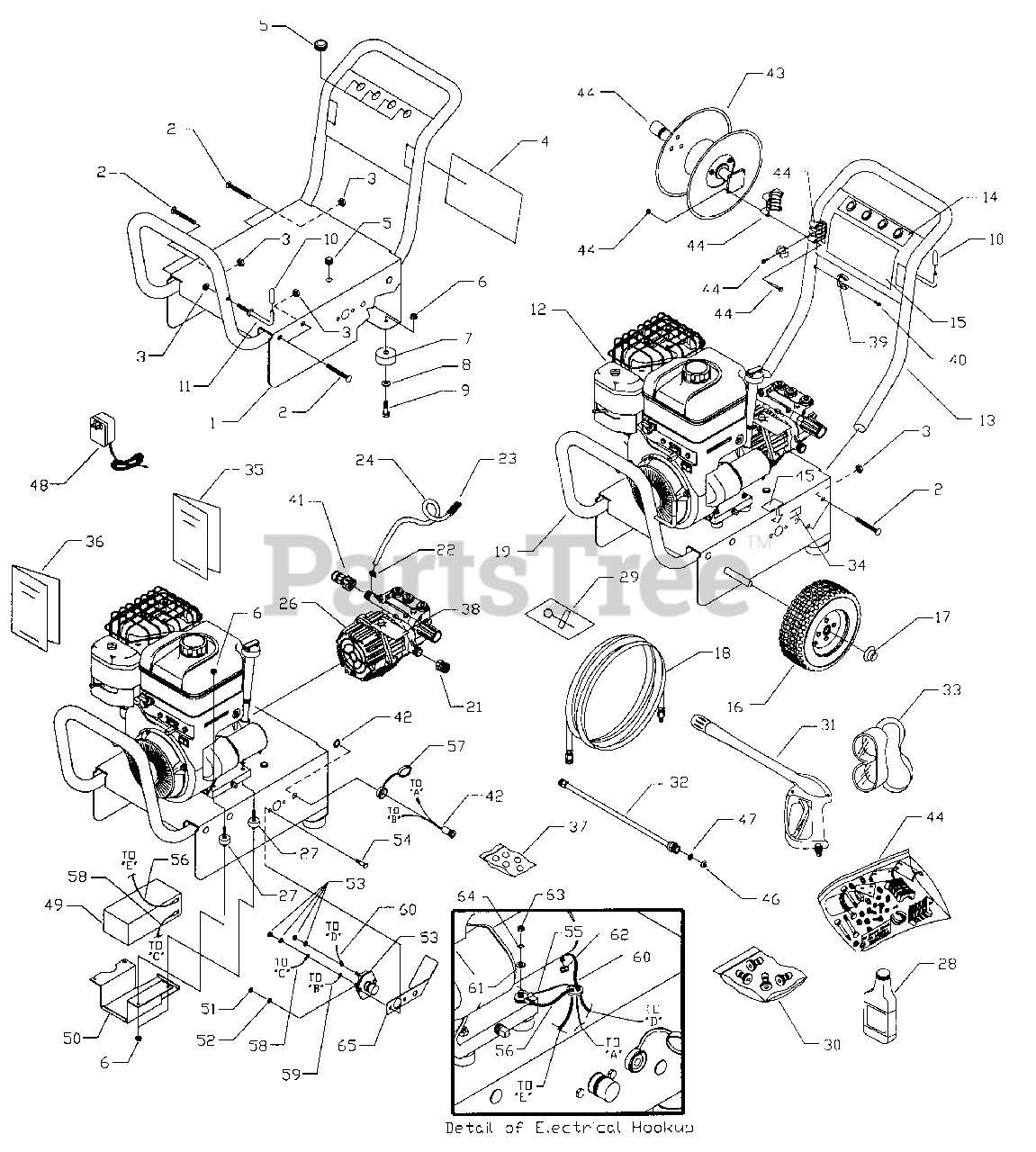

1443-0 - Generac 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

$

$

Not available

2

Briggs & Stratton B2043

BOLT, 5/16" - 18 x 1-3/4" Carriage
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 99583

NUT, Hex Flange 5/16" - 18
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 185929

DECAL, Instructions
(Superseded to 185929GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 30809

GROMMET, 1/8" - 11/16"
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67989

NUT, M8 Flange Serr.
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 19

0

7

Briggs & Stratton 27007

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 50190

FLAT WASHER, 10GA - .34" x 1"
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 42909

HHCS, M8 - 1.25 x 30
(Superseded to 42909GS)

$3.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton B2516

CAP, Black Vinyl .280"
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2150

HOOK, 5/16" Square Neck Gun
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

12

-----

ENGINE

$

$

Not available

13

Briggs & Stratton CB5779

HANDLE
(Superseded to CB5779GS)

$94.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B4163

DECAL, 4 QD Nozzles
(Superseded to B4163GS)

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B5782

DECAL, Unit
(Superseded to B5782GS)

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4966

ASSEMBLY, 10" Wheel & Tire
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 75402C

PUSHNUT, 5/8"
(Superseded to 75402CGS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B5694

HOSE, 5/16" x 25'
(Superseded to B5694GS)

$157.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton CB3866

BUMPER
(Superseded to CB3866GS)

$31.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 48031G

CLAMP, Hose 7/16" Dia.
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1040D

HOSE, 54" Chemical Inject
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

26

-----

ASSY, Pump

Note: (For Replacement, order 198347GS)

$

$

Not available

26

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

28

Briggs & Stratton BB3061B

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 11

0

29

Briggs & Stratton B2509

KIT, Nozzle Cleaning

$

$

Currently unavailable

30

Briggs & Stratton 186179

KIT, Nozzles QD
(Superseded to 186179GS)

$57.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B3263A

GUN, Spray 3200PSI M22-1.5
(Superseded to B3263AGS)

$58.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B3858

ASSY., Nozzle Ext. with QD
(Superseded to 207784GS)

$38.99

$

In Stock, Qty 8

0

33

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 186050

DECAL, Battery Charge

$

$

Currently unavailable

35

Briggs & Stratton B5786

MANUAL, Owners
(Superseded to B5786GS)

$14.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3297

MANUAL, Engine
(Superseded to 277040)

$

$

Not available

37

Briggs & Stratton B5830

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B1288

TAG, PW Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 65852A

SPRING CLIP, Holder
(Superseded to 65852AGS)

$

$

Not available

40

Briggs & Stratton 185954

SCREW, Self Tap #8-18 x 1/2"
(Superseded to 185954GS)

$

$

Not available

41

Briggs & Stratton 185923

QUICK CONNECT, M22
(Superseded to 185923GS)

$31.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 186166

ASSY., Jack Coaxial DC
(Superseded to 186166GS)

$13.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 186114

REEL, Hose
(Superseded to 186114GS)

$95.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 186113

KIT, Hardware Hose Reel
(Superseded to 186113GS)

$22.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B5826

DECAL, Push Button Start

$

$

Currently unavailable

46

Briggs & Stratton 97837

O-RING, High Pressure Trans.
(Superseded to 97837GS)

$3.49

$

In Stock, Qty 8

0

47

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$1.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton B4177

CHARGER, Battery
(Superseded to 705927)

$38.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 185604

BATTERY, 12V
(Superseded to 185604GS)

$99.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton B5835

TRAY, Battery
(Superseded to B5835GS)

$22.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 22127

NUT, 1/4" - 20

$

$

Not available

52

Briggs & Stratton 22097

LOCKWASHER, 1/4" - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

54

Briggs & Stratton 22413

HHCS, 1/4" - 20 x 1"

$

$

Currently unavailable

55

Briggs & Stratton 185973A

WIRE, #0
(Superseded to 185973AGS)

$7.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 185931B

WIRE, #55
(Superseded to 185931BGS)

$8.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 186133

COVER, DC Jack
(Superseded to 186133GS)

$6.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 185931A

WIRE, #13
(Superseded to 185931AGS)

$8.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 186748

WIRE, Diode, #13
(Superseded to 186748GS)

$5.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 185939A

WIRE, #16
(Superseded to 185939AGS)

$13.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22145

WASHER, Flat M8

$

$

Not available

62

Briggs & Stratton B2071

NUT, 1/4" - 20 Flange Lock
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 45771

NUT, Hex M8 - 1.25

$

$

Not available

64

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

65

Briggs & Stratton A186750

BRACKET, Starter Guard
(Superseded to A186750GS)

$7.99

$

Usually ships in 2-12 days

0
