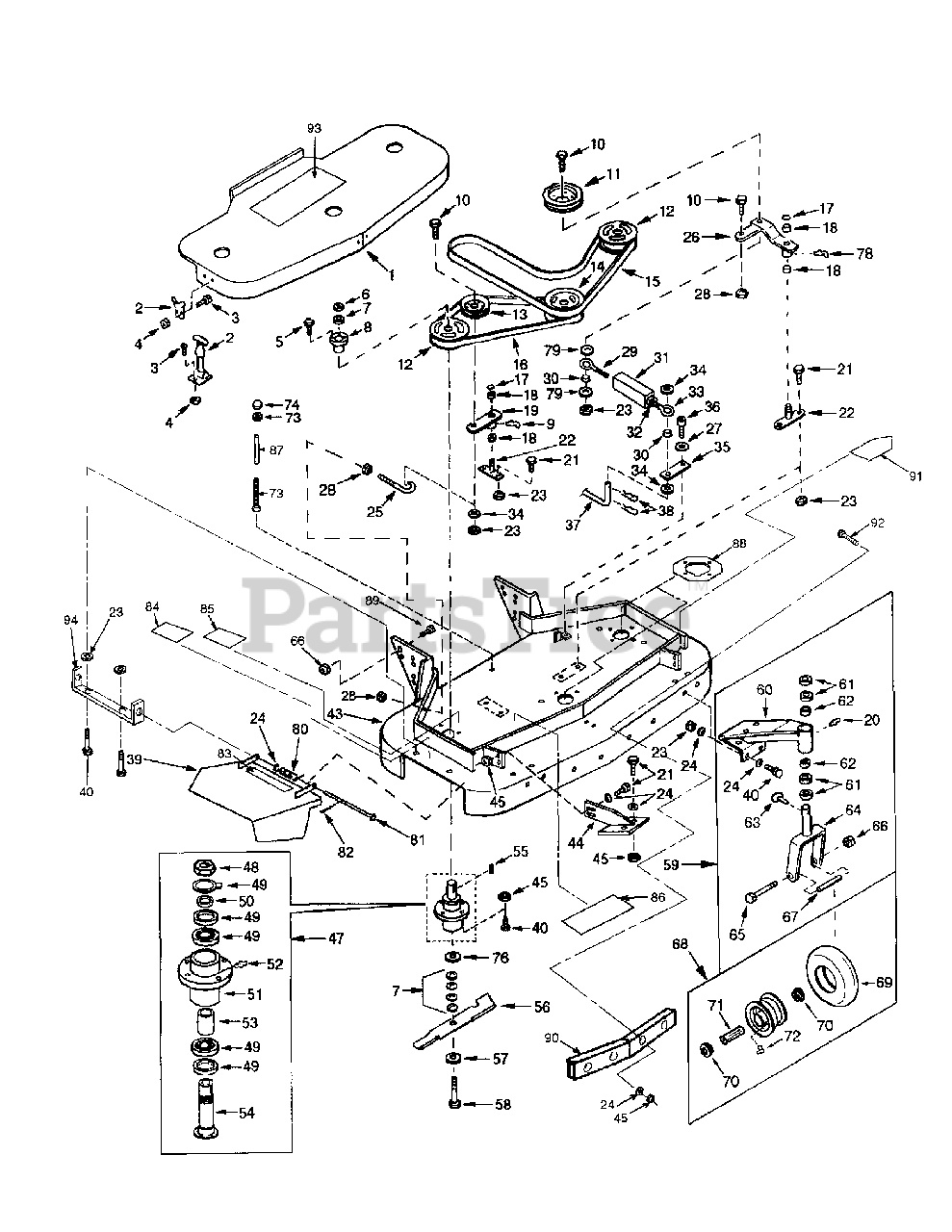

1448H - MTD Pro Walk-Behind Mower Fabricated Cutter Deck Parts Diagram

Pro Walk-Behind Mower

Fabricated Cutter Deck Parts Diagram

  • Title

1

MTD 01001032

Deck Cover

$

$

Not available

2

MTD 00021951

Rubber Latch

$67.99

$

Usually ships in 3-6 days

0

3

MTD 00008745

Machine Screw, 10-24 x 1/2 Round Hd.

$

$

Not available

4

MTD 712-0161

Hex Nut, 10-24 Nylock

$4.49

$

In Stock, Qty 9

0

5

MTD 00013131

Cap Screw, 1/4-20 x 3/4 Hex Hd.

$6.49

$

In Stock, only 1 left!

0

6

MTD 00011807

Hex Nut, 5/8-11

$

$

Not available

7

MTD 00021924

Blade Spacer

$

$

Not available

8

MTD 00021973

Pulley Bushing

$

$

Not available

9

MTD 737-3004

Grease Fitting, 1/4-28, 90 degree

$10.99

$

In Stock, Qty 5

0

10

MTD 00011861

Cap Screw, 3/8-16 x 2-1/2 Hex Hd.
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

11

MTD 00021977

Idler, Deck Take-up

$66.99

$

Usually ships in 3-6 days

0

12

MTD 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

13

MTD 00021975

Deck Idler

$68.99

$

In Stock, only 3 left!

0

14

MTD 00022971

Double Pulley

$

$

Not available

15

MTD 00021947

Drive Belt

$75.99

$

Usually ships in 3-6 days

0

16

MTD 00050480

Drive Belt

$52.99

$

Usually ships in 3-6 days

0

17

MTD 00021961

E-Ring, External

$10.99

$

Usually ships in 3-6 days

0

18

MTD 741-04333

Sintered Bushing

$9.99

$

Usually ships in 3-6 days

0

19

MTD 00021893

Pivot Arm, Deck Idler Pulley

$117.99

$

Usually ships in 3-6 days

0

20

MTD 737-04345

Grease Fitting, 1/4-28, Taper, Str.

$4.49

$

In Stock, Qty 18

0

21

MTD 00006144

Cap Screw, 3/8-16 x 1 Hex Hd.

$6.49

$

Usually ships in 3-6 days

0

22

MTD 00063043

Idler Pivot

$51.99

$

In Stock, only 1 left!

0

23

MTD 712-04065

Hex Nut, 3/8-16 Nylock

$3.99

$

In Stock, Qty 20+

0

24

MTD 00012158

Flat Washer, 3/8, Small O.D.

$4.49

$

In Stock, Qty 10

0

25

MTD 00030335

Rod, Belt Tensioner

$24.99

$

Usually ships in 3-6 days

0

26

MTD 00021895

Pivot Arm, Deck Take-up Idler Pulley

$158.99

$

Usually ships in 3-6 days

0

27

MTD 00012402

Shim Washer, 3/4 x 1/2 x 1/16

$

$

Not available

28

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0

29

MTD 00019271

Eyebolt, L.H.

$13.99

$

In Stock, Qty 5

0

30

MTD 00062715

Sleeve

$17.99

$

Usually ships in 3-6 days

0

31

MTD 01002510

Turnbuckle

Note: NLA

$

$

Not available

32

MTD 00013433

Hex Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

33

MTD 00014459

Eyebolt, R.H.

$10.99

$

In Stock, only 4 left!

0

34

MTD 00006168

Flat Washer, 3/8, Large O.D.
(Superseded to 936-3015)

$3.99

$

In Stock, Qty 5

0

35

MTD 00021892

Clutch Link
(Superseded to 01003153-0637)

$14.99

$

In Stock, only 3 left!

0

36

MTD 00014439

Shoulder Bolt, 1/2 X 3/8

$15.99

$

Usually ships in 3-6 days

0

37

MTD 00021884

Rod, Blade Clutch

$

$

Not available

38

MTD 00021956

Hairpin, 3/8-7/16
(Superseded to 914-04023)

$3.99

$

In Stock, Qty 20+

0

39

MTD 01004047

Discharge Chute

$

$

Not available

40

MTD 00011444

Cap Screw, 3/8-16 x 1-1/4 Hex Hd.

$4.49

$

In Stock, Qty 9

0

41

MTD 00002924

Cap Screw, 1/2-13 x 1-1/4 Hex Hd.

Note: NLA

$

$

Not available

42

MTD 00010873

Lock Washer, 1/2 Heavy

Note: NLA

$

$

Not available

43

MTD 01001028

Cutter Deck

Note: NLA

$

$

Not available

44

MTD 01001097-0637

Caster Support

$

$

Not available

45

MTD 00034224

Hex Nut, 3/8-16 Stover

$

$

Not available

46

MTD 01005114

Belt Guide

$12.99

$

Usually ships in 3-6 days

0

47

MTD 00057412

Spindle Assembly

Note: NLA

$

$

Not available

48

MTD 00031912

Hex Nut, 1-1/8-12 UNF, Jam

$

$

Not available

49

MTD 00054433

Kit, Spindle Repair

Note: NLA

$

$

Not available

50

MTD 00082246

Seal Spacer

Note: NLA

$

$

Not available

51

MTD 00080851

Spindle Housing

Note: Win32::OLE::Variant=SCALAR(0x8a5396c)

$

$

Currently unavailable

52

MTD 00023806

Grease Fitting
(Superseded to 937-0280)

$7.49

$

In Stock, only 4 left!

0

53

MTD 00056004

Internal Spacer

$

$

Not available

54

MTD 00056922

Spindle

Note: NLA

$

$

Not available

55

MTD 00021517

Key, 1/4 x 1/4 x 2

$8.49

$

In Stock, only 1 left!

0

56

MTD 00021871

Rotary Blade, 16-1/2

$

$

Not available

57

MTD 00013432

Flat Washer, 5/8

$7.99

$

In Stock, Qty 10

0

58

MTD 00013091

Cap Screw, 5/8-11 x 9-1/2 Hex Hd.

$

$

Not available

59

MTD n/a

Caster Assembly

$

$

Currently unavailable

60

MTD 01006718

Caster Bracket

$

$

Not available

61

MTD 00021925

Caster Spacer

$15.99

$

In Stock, only 4 left!

0

62

MTD 00064164

Bushing, Caster Bracket

$21.99

$

In Stock, Qty 9

0

63

MTD 711-1105

Lynch Pin, 7/16 x 1-7/8

$11.99

$

Usually ships in 3-6 days

0

64

MTD 01001051-0637

Caster Yoke

$165.99

$

Usually ships in 3-6 days

0

65

MTD 00012675

Cap Screw, 1/2-13 x 5-1/2 Hex Hd.

$9.99

$

In Stock, only 1 left!

0

66

MTD 00012428

Hex Nut, 1/2-13 Nylock

$6.49

$

In Stock, Qty 8

0

67

MTD 00014528

Sleeve, Caster Wheel Bearing

$11.99

$

Usually ships in 3-6 days

0

68

MTD 02000192

Caster Wheel Assembly

$126.99

$

Usually ships in 3-6 days

0

69

MTD 734-3098

Tire, Caster Wheel

$

$

Not available

70

MTD 00014409

Bearing Retainer, Caster Wheel

$10.99

$

Usually ships in 3-6 days

0

71

MTD 00014258

Roller Bearing, Caster Wheel

$

$

Not available

72

MTD 00021958

Grease Fitting, 1/4-28, 45°.

$4.99

$

In Stock, only 4 left!

0

73

MTD 710-0944

Bolt

$10.99

$

In Stock, Qty 18

0

74

MTD 00018468

Protective Cap

$

$

Not available

76

MTD 00002766

Flat Washer, 1-1/2 x 5/8 x .055

$3.49

$

In Stock, only 4 left!

0

77

MTD 00083192

Flat Washer, 3/8, Thick
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

78

MTD 937-0280

Grease Fitting

$7.49

$

In Stock, only 4 left!

0

79

MTD 00011075

Flat Washer, 5/16 USS

$4.49

$

Usually ships in 3-6 days

0

80

MTD 01002037

Torsion Spring

$65.99

$

Usually ships in 3-6 days

0

81

MTD 00030644

Deflector Pivot Pin Ass'y

$102.99

$

Usually ships in 3-6 days

0

82

MTD 00003107

Cotter Pin, 1/8 x 1
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

83

MTD 00013597

Decal, "Width Cut"

$

$

Not available

84

MTD 00030633

Decal, Rotating Blade

$

$

Not available

85

MTD 00030634

Decal, Warning Safety

$

$

Not available

86

MTD 00030635

Decal, Warning Shield
(Superseded to 777S33782)

$7.49

$

Usually ships in 3-6 days

0

87

MTD 01000160

Spacer, Belt Guard

$

$

Not available

88

MTD 01000150-0637

Plate, Spindle Backing

$

$

Not available

89

MTD 01000517

Bolt, Carriage
(Superseded to 710-05375)

$5.99

$

Usually ships in 3-6 days

0

90

MTD 01000235-0637

Bumper, 48"

$

$

Not available

91

MTD 01002166

Decal, Danger

$11.99

$

Usually ships in 3-6 days

0

92

MTD 710-3034

Bolt, Carriage

$3.99

$

In Stock, Qty 7

0

93

MTD 01001033

Label, Command Deck

$

$

Not available

94

MTD 01001040

Bracket, Deflector

Note: NLA

$

$

Not available

95

MTD 01000643

Bolt, Carriage

$5.49

$

In Stock, Qty 10

0

MTD 00034931

Metal Grasscatcher with Bracket

Note: (not shown)

$

$

Currently unavailable

MTD 00019433

Cloth Grasscatcher

Note: (not shown)

$

$

Currently unavailable

MTD 00031076

Cloth Replacement Bag

Note: (not shown)

$

$

Currently unavailable

MTD 00030100

Mulching Kit

Note: (not shown)

$

$

Currently unavailable
