145-827-000 - MTD Garden Tractor (1985) Electrical System Parts Diagram

Garden Tractor

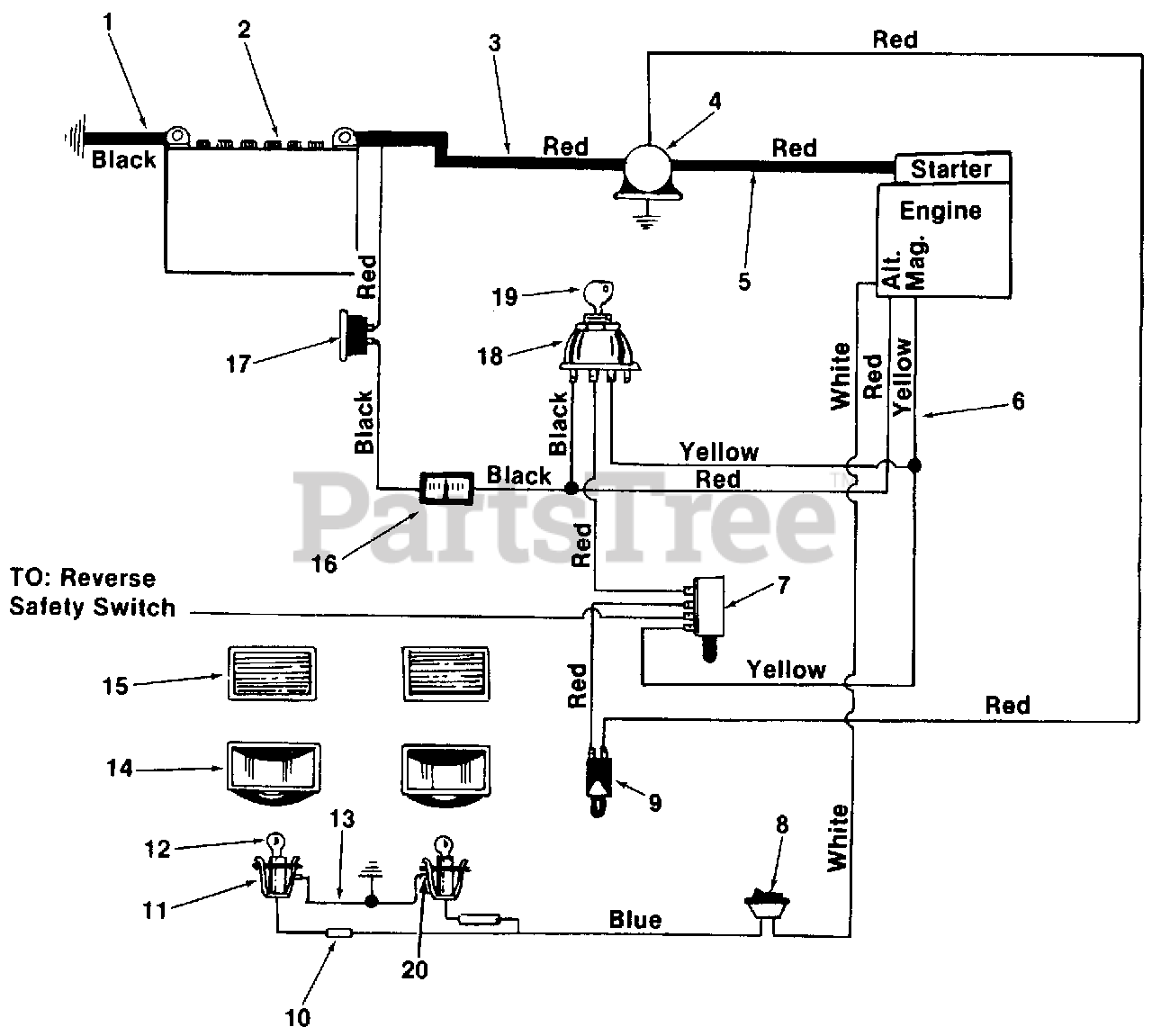

Electrical System Parts Diagram

  • Title
1

MTD Part# 725-0996

Electric Wire

Note: (Black-Negative)

Usually ships same day

Not available

$

$

2

MTD Part# 725-0453

12V-Battery
Usually ships same day

Not available

$

$

3

MTD Part# 725-0561

Electric Wire
(Superseded to 629-0705)

Note: (Red Positive)

Usually ships same day

Not available

$

$

MTD Part# 725-0564

Electric Wire

Note: (Red Positive)

Usually ships same day

Currently unavailable

$

$

4

MTD Part# 725-0771

Solenoid
(Superseded to 925-0771)
Usually ships in 1 day

$

$25.86

0

5

MTD Part# 725-0563

Electric Wire

Note: (16 and 18 H.P.)

Usually ships same day

Currently unavailable

$

$

MTD Part# 725-0564

Electric Wire

Note: (11 H.P.)

Usually ships same day

Currently unavailable

$

$

6

MTD Part# 725-1027

Wire Harness

Note: (16 and 18 H.P.)

Usually ships same day

Currently unavailable

$

$

MTD Part# 725-1028

Wire Harness

Note: (11 H.P.)

Usually ships same day

Not available

$

$

7

MTD Part# 725-0465

Safety Switch
(Superseded to 925-0465A)

Note: (P.T.O.)

Usually ships in 1 day

$

$21.29

0

8

MTD Part# 725-0634

Light Switch
(Superseded to 925-0634)
Usually ships in 1 day

$

$12.77

0

9

MTD Part# 725-0268

Safety Switch
(Superseded to 925-0268)

Note: (Clutch)

Usually ships in 5 to 10 days

$

$31.11

0

10

MTD Part# 725-0717

Tab Receptacle
Usually ships same day

Currently unavailable

$

$

11

MTD Part# 725-1058

Socket
(Superseded to 925-1058A)
Usually ships in 5 to 10 days

$

$8.19

0

12

MTD Part# 725-0963

Lamp
(Superseded to 925-0963)
Usually ships in 1 day

$

$5.34

0

13

MTD Part# 725-0916

Ground Wire
(Superseded to 725-0916A)
Usually ships same day

Not available

$

$

14

MTD Part# 731-0705

Head Light Housing
(Superseded to 931-0705)
Usually ships same day

Not available

$

$

15

MTD Part# 731-0706

Lens
(Superseded to 931-0706)
Usually ships same day

Not available

$

$

16

MTD Part# 725-0925

Ammeter
(Superseded to 925-0925)
Usually ships in 1 day

$

$21.86

0

17

MTD Part# 725-0459

Circuit Breaker
(Superseded to 753-0685)
Usually ships in 1 day

$

$28.76

0

18

MTD Part# 725-0267

Ignition Switch
(Superseded to 925-0267B)
Usually ships in 1 day

$

$26.44

0

19

MTD Part# 725-0201

Ignition Key
(Superseded to 925-0201)
Usually ships in 1 day

$

$6.91

0

20

MTD Part# 726-0226

Push On Ground Clip
Usually ships same day

Not available

$

$
