145-827-000 - MTD Garden Tractor (1985) Parts For Parts Diagram

Garden Tractor

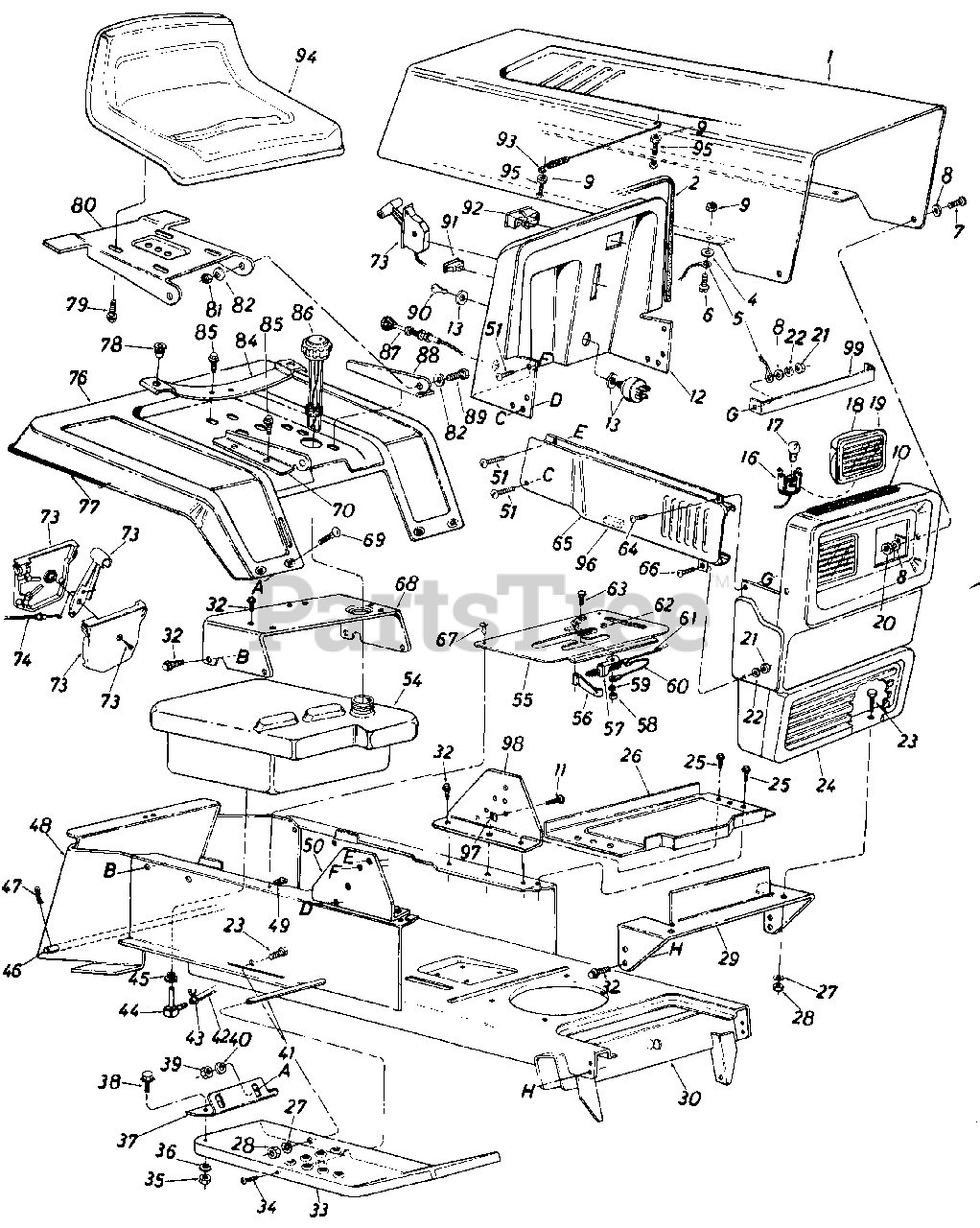

Parts For Parts Diagram

  • Title
Usually ships same day

Currently unavailable

$

$

2

MTD Part# 731-0511

Trim Strip-27" Lg.
Usually ships in 5 to 10 days

$

$2.84

0

4

MTD Part# 736-0931

Fl-Wash. .20" I.D. x .41" O.D.
Usually ships in 5 to 10 days

$

$3.23

0

5

MTD Part# 727-0290

Hood Stop
(Superseded to 727-0290A)
Usually ships in 5 to 10 days

$

$8.79

0

6

MTD Part# 710-0473

Truss Hd. Mach. Scr. #10-24 x.50" Lg.
Usually ships in 1 day

$

$3.09

0

7

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

8

MTD Part# 736-0463

Fl-Wash. 1/4" I.D.
(Superseded to 936-0463)
Usually ships in 1 day

$

$3.13

0

9

MTD Part# 712-0272

Hex Sem Nut #10-24 Thd.
Usually ships in 1 day

$

$2.84

0

10

MTD Part# 722-0155

Foam Strip 3/8" x 1" x 14"
Usually ships same day

Not available

$

$

11

MTD Part# 710-0351

Truss Mach. Scr. #10 x .50" Lg.
Usually ships in 1 day

$

$3.11

0

12

MTD Part# 15811

Dash Ass'y.

Note: (11 H.P.)

Usually ships same day

Currently unavailable

$

$

MTD Part# 15812

Dash Ass'y.

Note: (16 & 18 H.P.)

Usually ships same day

Currently unavailable

$

$

13

MTD Part# 725-0267

Ignition Switch
(Superseded to 925-0267B)
Usually ships in 1 day

$

$26.44

0

16

MTD Part# 725-0964

Socket
(Superseded to 925-1058A)
Usually ships in 5 to 10 days

$

$8.19

0

17

MTD Part# 725-0963

Lamp
(Superseded to 925-0963)
Usually ships in 1 day

$

$5.34

0

18

MTD Part# 731-0705

Headlight Housing
(Superseded to 931-0705)
Usually ships same day

Not available

$

$

19

MTD Part# 731-0706

Lens
(Superseded to 931-0706)
Usually ships same day

Not available

$

$

20

MTD Part# 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

21

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

22

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

23

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

24

MTD Part# 15804

Grille (With Headlights)
Usually ships same day

Currently unavailable

$

$

25

MTD Part# 710-0599

Hex Wash. Hd. Scr. 1/4" x .50" Lg.
Usually ships in 1 day

$

$3.06

0

26

MTD Part# 13379

Battery Plate
Usually ships same day

Not available

$

$

27

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

28

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

29

MTD Part# 15825

Grille Mounting Bracket
Usually ships same day

Not available

$

$

30

MTD Part# 13820

Lower Frame Ass'y.
Usually ships same day

Not available

$

$

32

MTD Part# 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.
Usually ships in 1 day

$

$3.04

0

33

MTD Part# 13828

Running Board-R.H.
Usually ships same day

Not available

$

$

MTD Part# 13827

Running Board-L.H.

Note: (Not Shown)

Usually ships same day

Not available

$

$

34

MTD Part# 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.
Usually ships in 1 day

$

$3.23

0

35

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

36

MTD Part# 736-0242

Bell-Wash. .34" I.D. x .87" O.D.
Usually ships in 1 day

$

$3.00

0

37

MTD Part# 15846

Fender Brkt.-R.H.

Variations

MTD Part# 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 15847

Fender Brkt.-L.H.

Note: (Not Shown)

Variations

MTD Part# 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

38

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

39

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

40

MTD Part# 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

41

MTD Part# 738-0435

Running Board Rod
Usually ships same day

Not available

$

$

42

MTD Part# 751-0173

Fuel Line 40" Lg.
(Superseded to 751-10349-16)
Usually ships in 1 day

$

$14.13

0

43

MTD Part# 726-0207

Hose Clamp 3/8"
Usually ships same day

Not available

$

$

44

MTD Part# 751-3054

90ø Nipple
Usually ships same day

Currently unavailable

$

$

45

MTD Part# 735-0149

Bushing
(Superseded to 935-0149)

Note: (Fuel Tank)

Usually ships in 1 day

$

$6.16

0

46

MTD Part# 738-0482

Hitch Rod
Usually ships same day

Not available

$

$

47

MTD Part# 714-0147

Internal Cotterpin
Usually ships in 1 day

$

$3.36

0

48

MTD Part# 13813

Hitch Plate
Usually ships same day

Not available

$

$

49

MTD Part# 726-0139

Speed Nut
Usually ships in 1 day

$

$4.76

0

50

MTD Part# 15828

Dash Support Brkt.-R.H.
Usually ships same day

Not available

$

$

51

MTD Part# 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x.75" Lg.
Usually ships in 1 day

$

$3.21

0

54

MTD Part# 751-0367

Fuel Tank
Usually ships same day

Not available

$

$

55

MTD Part# 15831

Transmission Cover Ass'y.
Usually ships same day

Currently unavailable

$

$

56

MTD Part# 732-0405

Switch Actuator Spring Lever
Usually ships same day

Currently unavailable

$

$

57

MTD Part# 725-0268

Safety Switch
(Superseded to 925-0268)
Usually ships in 5 to 10 days

$

$31.11

0

58

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

59

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

60

MTD Part# 725-0765

Electric Wire
Usually ships same day

Not available

$

$

61

MTD Part# 725-1027

Reverse Lockout Wire Harness
Usually ships same day

Currently unavailable

$

$

62

MTD Part# 731-0405

Snap Bushing
Usually ships in 5 to 10 days

$

$6.61

0

63

MTD Part# 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)
Usually ships in 1 day

$

$2.53

0

64

MTD Part# 710-0255

Truss Hd. Scr. 1/4-20 x .75" Lg. *
(Superseded to 710-0924)
Usually ships in 1 day

$

$3.19

0

65

MTD Part# 15814

Side Panel-R.H.15815 Side Panel-L.H.

Note: (Not Shown)

Usually ships same day

Not available

$

$

66

MTD Part# 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*
Usually ships in 1 day

$

$3.10

0

67

MTD Part# 710-0351

Truss Mach. "B" Tap Scr. #10 x .50" Lg.
Usually ships in 1 day

$

$3.11

0

68

MTD Part# 15849

Seat Mounting Channel
Usually ships same day

Not available

$

$

69

MTD Part# 710-0167

Carriage Bolt 1/4-20 x .50" Lg.*
Usually ships same day

Not available

$

$

70

MTD Part# 15802

Seat Bracket-R.H.
Usually ships same day

Not available

$

$

MTD Part# 710-0600

Hex Wash Hd. Self-Tap Scr. 5/16-24 x .50" Lg.
Usually ships in 1 day

$

$2.53

0

73

MTD Part# 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)
Usually ships in 1 day

$

$16.16

0

74

MTD Part# 746-0500

Throttle Control Cable
(Superseded to 946-0500)

Note: (11 H.P)

Usually ships in 1 day

$

$10.98

0

MTD Part# 746-0503

Throttle Control Wire
(Superseded to 946-0503)

Note: (16 & 18 H.P.)

Usually ships same day

Not available

$

$

76

MTD Part# 15886

Rear Fender

Variations

MTD Part# 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

77

MTD Part# 731-0511

Trim Strip-81"
Usually ships in 5 to 10 days

$

$2.84

0

78
Usually ships same day

Not available

$

$

79

MTD Part# 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.
Usually ships in 1 day

$

$3.12

0

80

MTD Part# 15607

Seat Pivot Bracket
(Superseded to 783-0039A)
Usually ships same day

Not available

$

$

81

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

82

MTD Part# 736-0242

Belleville Wash. .34" I.D. x .88" O.D.
Usually ships in 1 day

$

$3.00

0

84

MTD Part# 732-0431

Seat Spring
Usually ships same day

Currently unavailable

$

$

85

MTD Part# 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.
Usually ships in 1 day

$

$4.82

0

86

MTD Part# 751-0370

Gas Cap w/Gauge
Usually ships same day

Not available

$

$

87

MTD Part# 746-0394

Choke Control Comp.

Note: (16 & 18 H.P.)

Usually ships in 5 to 10 days

$

$61.55

0

88

MTD Part# 15803

Seat Bracket-L.H.
Usually ships same day

Not available

$

$

89

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

90

MTD Part# 725-0201

Ignition Key
(Superseded to 925-0201)
Usually ships in 1 day

$

$6.91

0

91

MTD Part# 725-0634

Light Switch
(Superseded to 925-0634)
Usually ships in 1 day

$

$12.77

0

92

MTD Part# 725-0925

Ammeter
(Superseded to 925-0925)
Usually ships in 1 day

$

$21.86

0

93

MTD Part# 732-0462

Hood Spring
Usually ships same day

Not available

$

$

94

MTD Part# 757-0308

Seat Ass'y.
Usually ships same day

Currently unavailable

$

$

95

MTD Part# 710-0749

Hex Screw #10-24 x 1.0" Lg.
(Superseded to 910-0749)
Usually ships in 5 to 10 days

$

$2.57

0

96

MTD Part# 735-0244

Rubber Strip 1/2" Sq. x 2-1/2" Lg.
Usually ships same day

Currently unavailable

$

$

97

MTD Part# 712-0121

Speed Nut
(Superseded to 912-0121)
Usually ships same day

Not available

$

$

98

MTD Part# 15829

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)
Usually ships same day

Not available

$

$

99

MTD Part# 15931

Tie Strap-Grille/Side Panel
Usually ships same day

Not available

$

$
